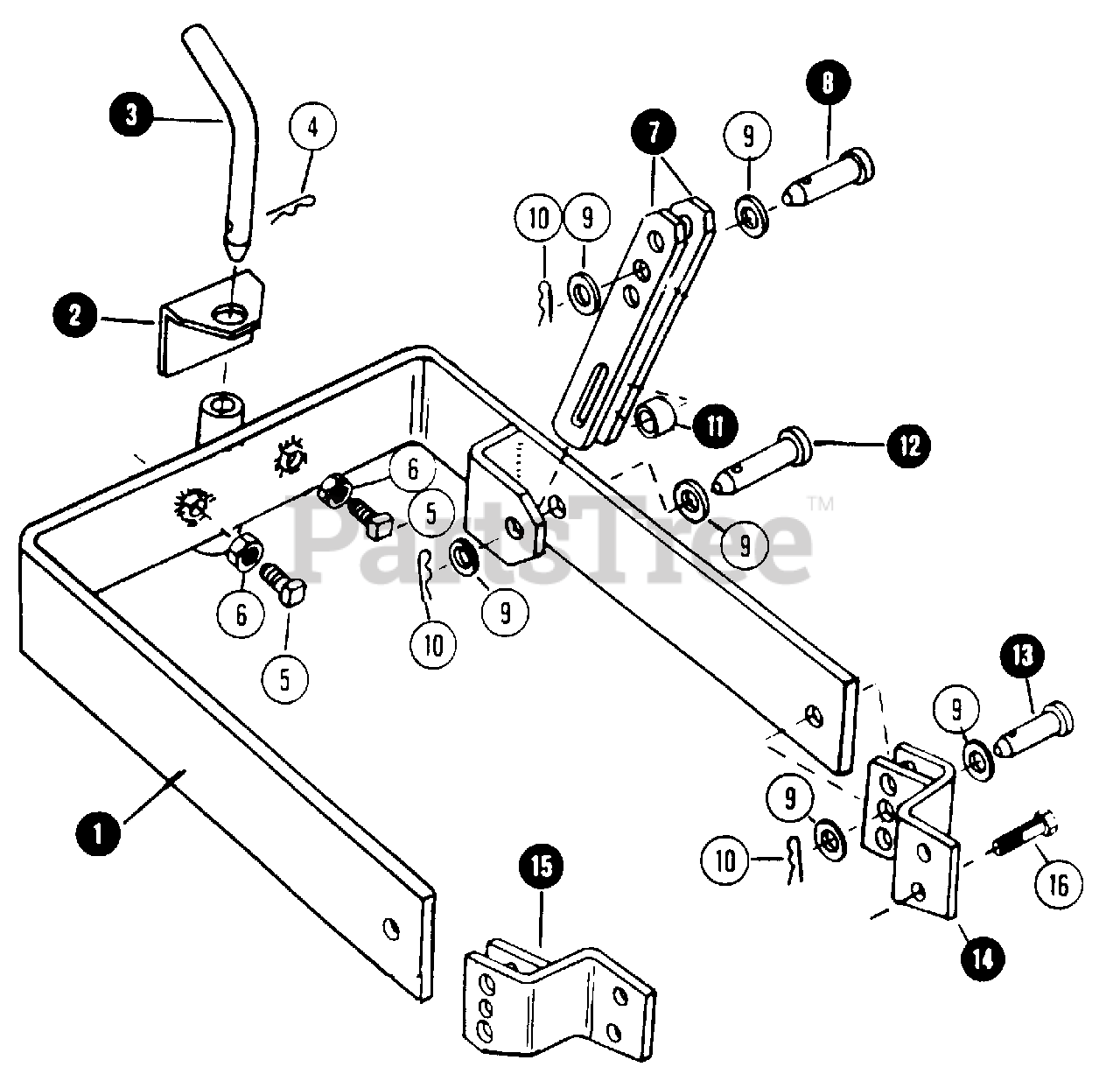

1600 (80024) - Snapper Garden Tractor, 16hp Implement Sleeve Hitch - 1600A Parts Diagram

Garden Tractor, 16hp

Implement Sleeve Hitch - 1600A Parts Diagram

  • Title
1

Snapper 49907

BAIL, HITCH

$

$

Currently unavailable

2

Snapper 37940

STABILIZER, ADJUSTABLE

$

$

Currently unavailable

3

Snapper 37939

PIN, HITCH

$

$

Currently unavailable

4

Snapper 7012844

PIN, HAIR

Note: (FOR HITCH PIN)

$

$

Currently unavailable

5

Snapper 12952

SCREW, 5/8C x 3 SQUARE HEAD SET

$

$

Currently unavailable

6

Snapper 90686

NUT, 5/8C HALF-HEX
(Superseded to 90686GS)

$14.99

$

Usually ships in 2-12 days

0

7

Snapper 37941

LINK, UPPER

$

$

Currently unavailable

8

Snapper 7012951

PIN, CLEVIS - LINK TO ROCKSHAFT

$

$

Not available

9

Snapper 7090250

WASHER, 1/2 FLAT
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 12714

PIN, HAIR

$

$

Currently unavailable

11

Snapper 21818

SPACER, 3/4 O.D. x 3/8
(Superseded to 5021818)

$6.99

$

Usually ships in 2-12 days

0

12

Snapper 12860

PIN, CLEVIS - LINK TO BAIL

$

$

Currently unavailable

13

Snapper 7012953

PIN, CLEVIS - BAIL TO BRACKET

$

$

Not available

14

Snapper 47767

BRACKET, HITCH MOUNTING LEFT SIDE

$

$

Currently unavailable

15

Snapper 47766

BRACKET, HITCH MOUNTING RIGHT SIDE

$

$

Currently unavailable

16

Snapper 7090620

BOLT, 3/8C x 7/8 HEX HEAD

$

$

Not available
