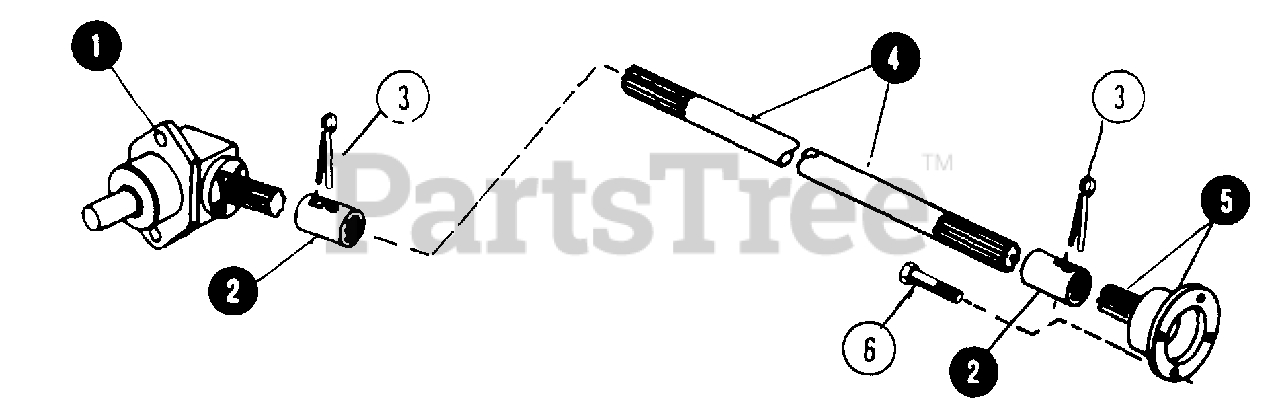

1600 (80024) - Snapper Garden Tractor, 16hp Gearbox, Drive Shaft Parts Diagram

Garden Tractor, 16hp

Gearbox, Drive Shaft Parts Diagram

  • Title
1

Snapper 7019834

GEARBOX ASSEMBLY - COMPLETE

$

$

Currently unavailable

2

Snapper 7027502

COUPLING, DRIVE SHAFT

$

$

Not available

3

Snapper 7090581

COTTER-PIN, 1/4 x 1-1/2

$

$

Not available

4

Snapper 29540

SHAFT, FRONT DRIVE

Note: (1600 ONLY - See "Rear Power Take-Off (1600A Models)" illustration and parts list)

$

$

Currently unavailable

5

Snapper 7047738

ADAPTER, ENGINE DRIVE

$

$

Currently unavailable

6

Snapper 7090592

BOLT, 3/8C x 1 SOCKET HEAD

$

$

Not available
