1600 (80024) - Snapper Garden Tractor, 16hp Front Wheels Parts Diagram

Garden Tractor, 16hp

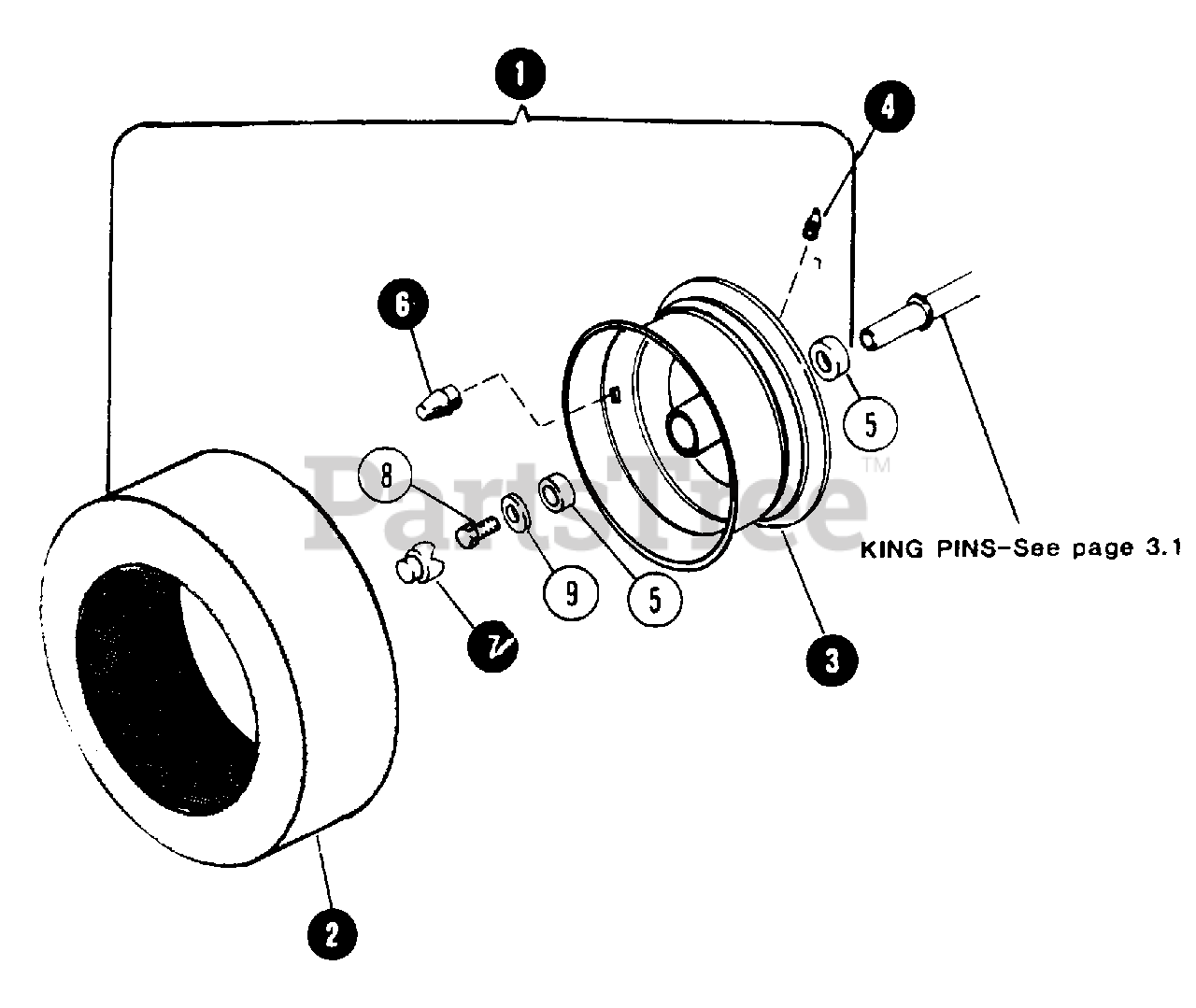

Front Wheels Parts Diagram

  • Title
1

Snapper 7046245

WHEEL ASSEMBLY
(Superseded to 7073584YP)

Note: Was 59563 (Now 46245 + 19678)

$170.99

$

Usually ships in 2-12 days

0

2

Snapper 19677

TIRE, 16 x 6.50 x 8

$

$

Currently unavailable

3

Snapper 7019678

RIM

Note: (INCLUDES ITEMS 4, 5, 6)

$

$

Not available

4

Snapper 7013867

PULLEY, 8.36" O.D.
(Superseded to 7013867YP)

$82.99

$

Usually ships in 2-12 days

0

5

Snapper 7028722

BEARING, BALL
(Superseded to 7028722YP)

Note: Was 13680 (TWO REQ'D)

$29.99

$

In Stock, Qty 9

0

6

Snapper 7012234

VALVE, AIR
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 7018400

CAP, FRONT HUB

$

$

Not available

8

Snapper 7090603

BOLT, 3/8C x 7/8 HEX HEAD

$2.99

$

In Stock, only 1 left!

0

9

Snapper 7032012

WASHER, 13/32" FLAT
(Superseded to 7021746YP)

$3.99

$

In Stock, Qty 11

0
