1600 (80024) - Snapper Garden Tractor, 16hp Frame, Drawbar Parts Diagram

Garden Tractor, 16hp

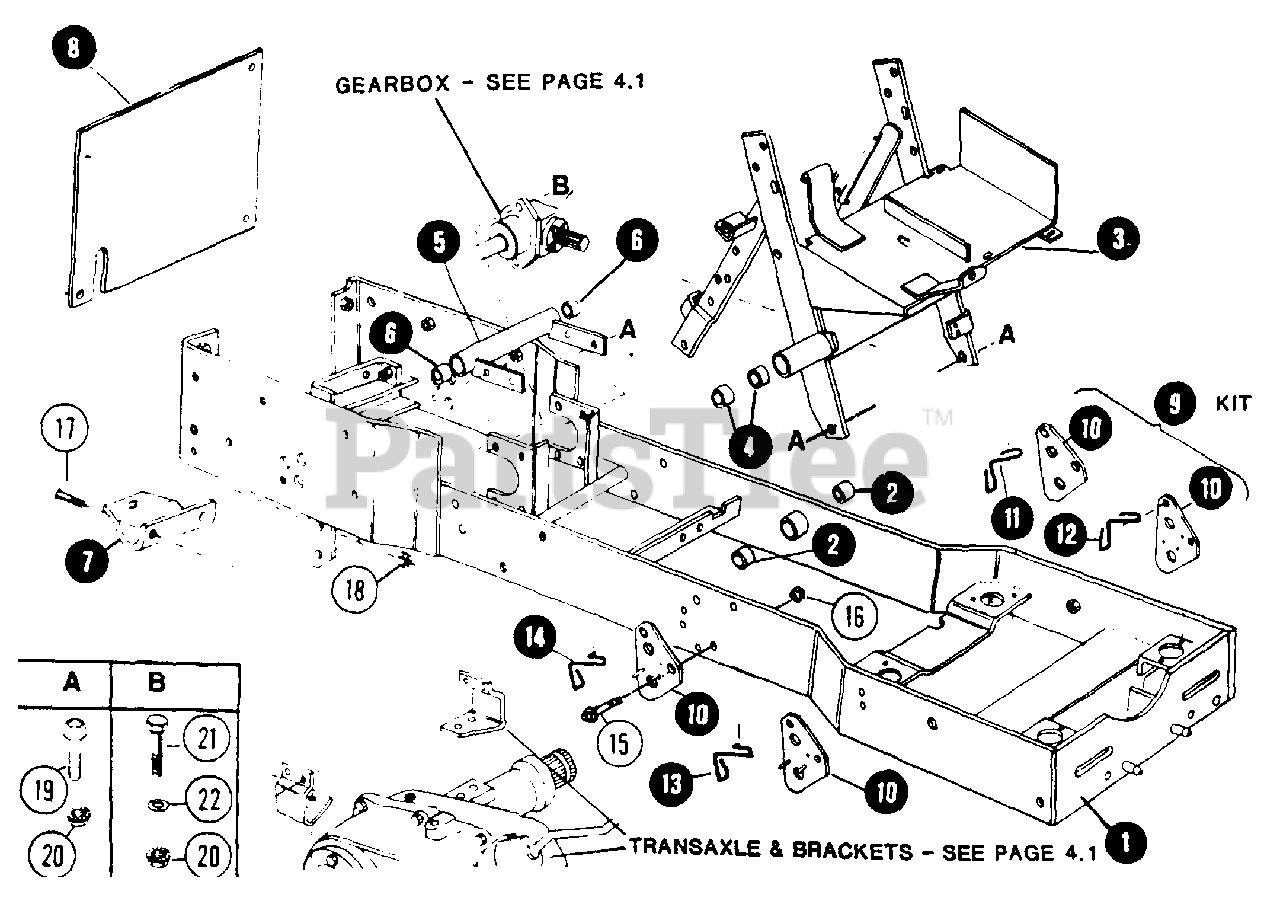

Frame, Drawbar Parts Diagram

  • Title
1

Snapper 59537

FRAME ASSEMBLY

Note: (INCLUDES 2 OF ITEM 2)

$

$

Currently unavailable

2

Snapper 7012706

BUSHING FRAME
(Superseded to 7012706SM)

$10.99

$

In Stock, only 4 left!

0

3

Snapper 57253

PEDESTAL FRAME ASSEMBLY

Note: (INCLUDES 2 OF ITEM 4)

$

$

Currently unavailable

4

Snapper 12708

BUSHING, PEDESTAL

$

$

Currently unavailable

5

Snapper 7059536

SUPPORT ASSEMBLY, CROSS SHAFT

Note: (INCLUDES 2 OF ITEM 6)

$

$

Currently unavailable

6

Snapper 7012706

BUSHING, CROSS SHAFT SUPPORT
(Superseded to 7012706SM)

$10.99

$

In Stock, only 4 left!

0

7

Snapper 39836

EXTENSION, DRAWBAR

$

$

Currently unavailable

8

Snapper 39736

PLATE, FRAME REAR COVER

Note: (1600 ONLY)

$

$

Currently unavailable

9

Snapper 7060448

KIT, IMPLEMENT MOUNTING

Note: (INCLUDES ITEMS 10 THRU 16)

$

$

Currently unavailable

10

Snapper 7059554

BRACKET, LINK PIVOT

$

$

Not available

11

Snapper 7019591

SPRING, LEFT REAR
(Superseded to 7019591YP)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 7019593

SPRING, LEFT FRONT

$

$

Not available

13

Snapper 7019590

SPRING, RIGHT FRONT
(Superseded to 7019590YP)

$6.99

$

Usually ships in 2-12 days

0

14

Snapper 7019592

SPRING, RIGHT REAR
(Superseded to 7019592YP)

$6.99

$

Usually ships in 2-12 days

0

15

Snapper 7090661

BOLT, 5/16-18 x 1 HEX FLANGE LOCK

$

$

Not available

16

Snapper 7091601

NUT, 5/16-18 HEX LOCK
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

17

Snapper 7091304

BOLT, 3/8C x 1" HEX HEAD
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

18

Snapper 7091302

NUT, 3/8 HEX
(Superseded to 7091302SM)

Note: Was 90504

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7027198

BOLT, 3/8C X 1" HEX FLANGE
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

20

Snapper 7091619

NUT, 3/8C HEX FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

21

Snapper 7090614

BOLT, 3/8C x 1-1/2 HEX FLANGE
(Superseded to 7090614YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0
