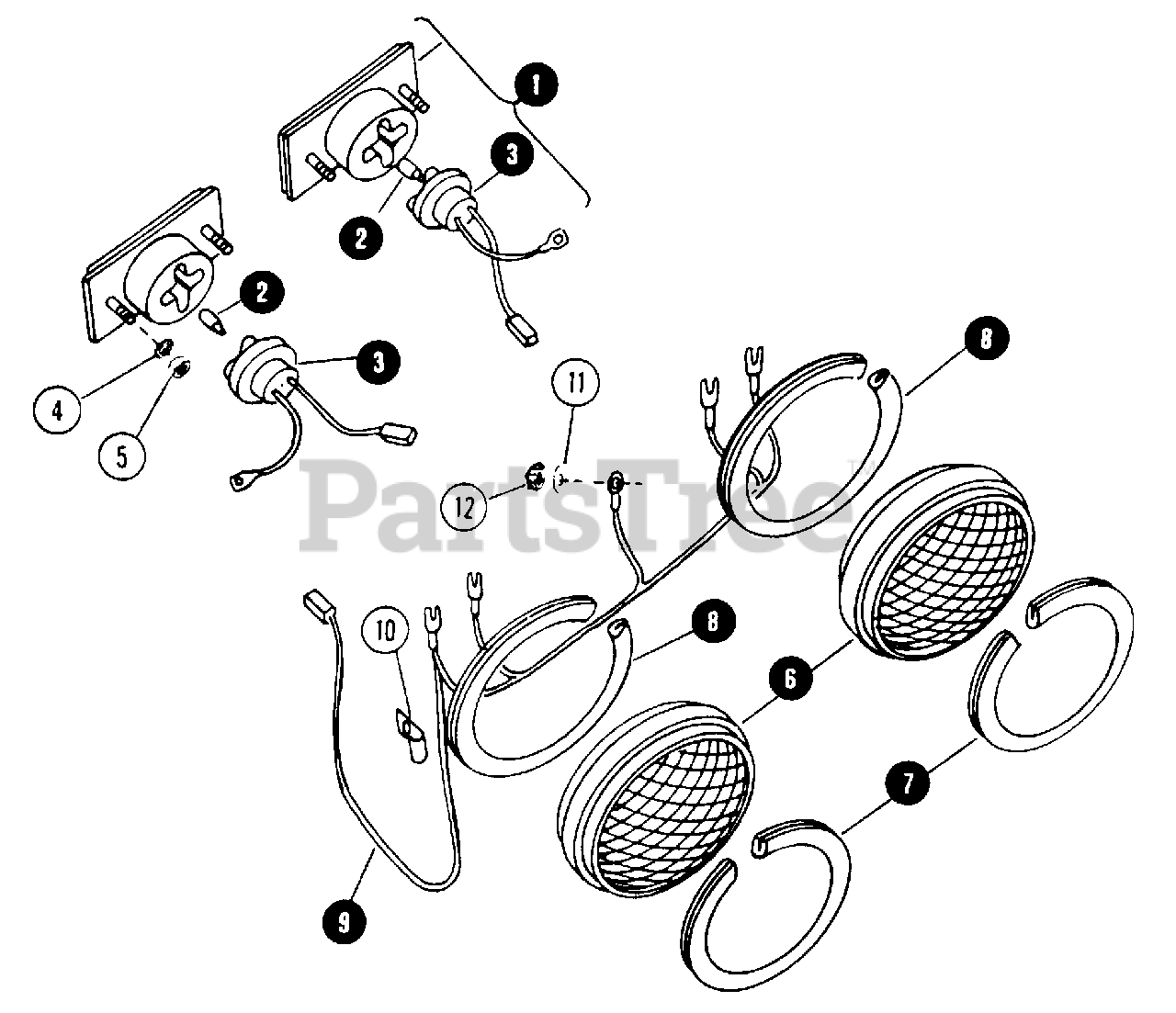

1600 (80024) - Snapper Garden Tractor, 16hp Electrical Lighting Parts Diagram

Garden Tractor, 16hp

Electrical Lighting Parts Diagram

  • Title
1

Snapper 7018245

TAIL, LIGHT ASSY.

Note: (INCLUDES ITEMS 2 & 3)

$

$

Not available

2

Snapper 13721

BULB, TAIL LIGHT

$

$

Currently unavailable

3

Snapper 13043

SOCKET, TAIL LIGHT TERMINAL

$

$

Currently unavailable

4

Snapper 7090601

WASHER, #10 EXTERNAL TOOTH LOCK
(Superseded to 7090601YP)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper 7090013

NUT, #10-32 (SPECIAL)

$

$

Not available

6

Snapper 7079195

HEADLAMP, SEALED BEAM

Note: Was 18415

$

$

Not available

7

Snapper 7012651

MOLDING, OUTSIDE HEADLAMP

$6.99

$

Usually ships in 2-12 days

0

8

Snapper 7012650

MOLDING, INSIDE HEADLAMP

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7019529

HARNESS, HEADLAMP WIRING

$

$

Not available

10

Snapper 7012652

CLIP, HARNESS TO HOOD
(Superseded to 7012652YP)

Note: (2 req'd)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7091294

WASHER, 1/4 FLAT
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7090578

NUT, 1/4C HEX LOCK

$

$

Not available
