1600 (80024) - Snapper Garden Tractor, 16hp Controls: Throttle & Choke Parts Diagram

Garden Tractor, 16hp

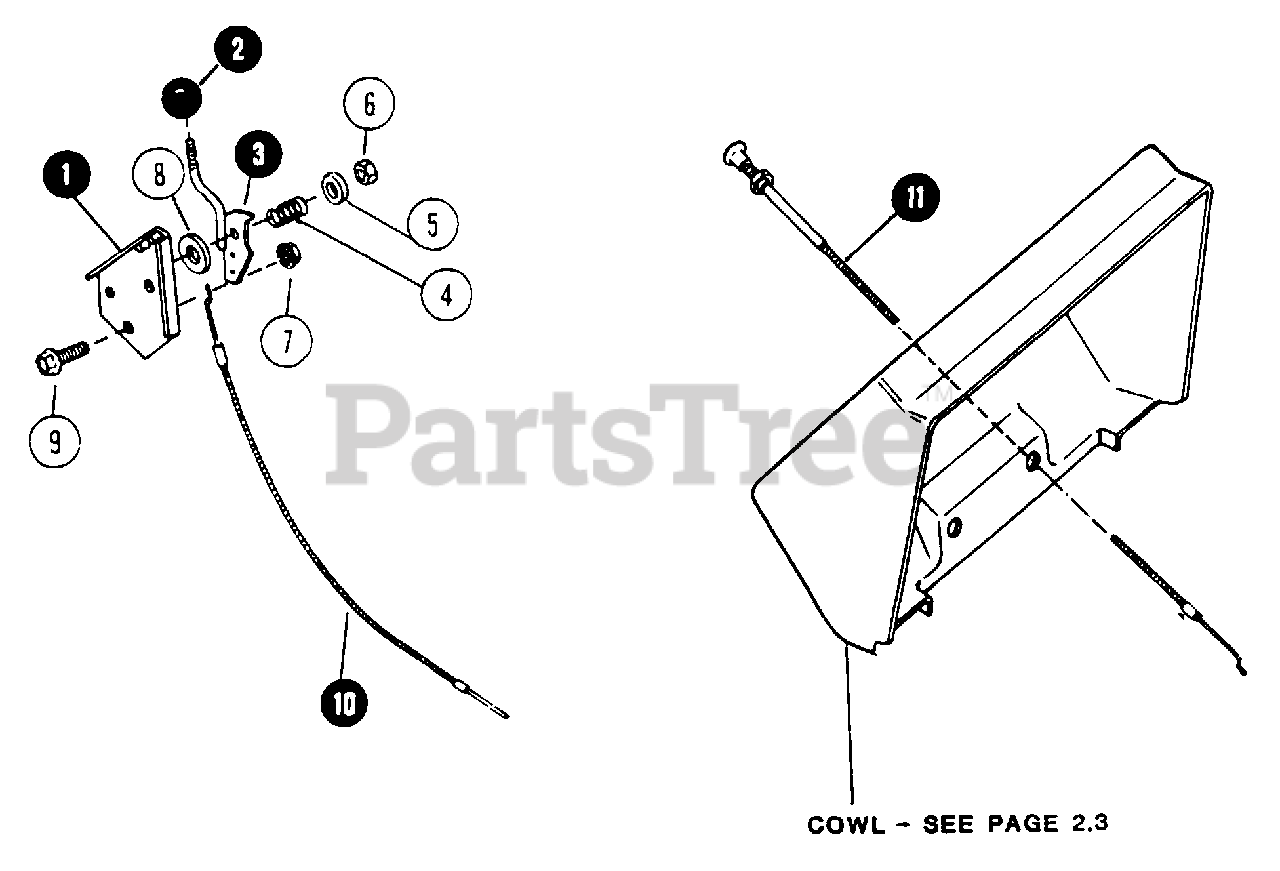

Controls: Throttle & Choke Parts Diagram

  • Title
1

Snapper 7014061

BRACKET, THROTTLE CONTROL

Note: Was 49822 (Now 14061 + 47783)

$3.49

$

In Stock, Qty 5

0

2

Snapper 7018271

KNOB, THROTTLE ARM

$

$

Not available

3

Snapper 7049580

ARM, THROTTLE CONTROL
(Superseded to 7049580YP)

$76.99

$

Usually ships in 2-12 days

0

4

Snapper 18267

SPRING, ARM TENSION

$

$

Currently unavailable

5

Snapper 7090188

WASHER, 5/16 FLAT
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7012687

NUT, 5/16C HEX LOCK

$

$

Not available

7

Snapper 7091619

NUT, 3/8C HEX FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7018264

WASHER, FRICTION

$

$

Not available

9

Snapper 7027198

BOLT, 3/8C x 3/4 HEX
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

10

Snapper 7018266

CABLE, THROTTLE CONTROL

$

$

Not available

11

Snapper 7018268

CABLE, CHOKE CONTROL

$34.99

$

Usually ships in 2-12 days

0
