1600 (13AE608G101) - Cub Cadet Garden Tractor 42-inch Cutting Deck Parts Diagram

Garden Tractor

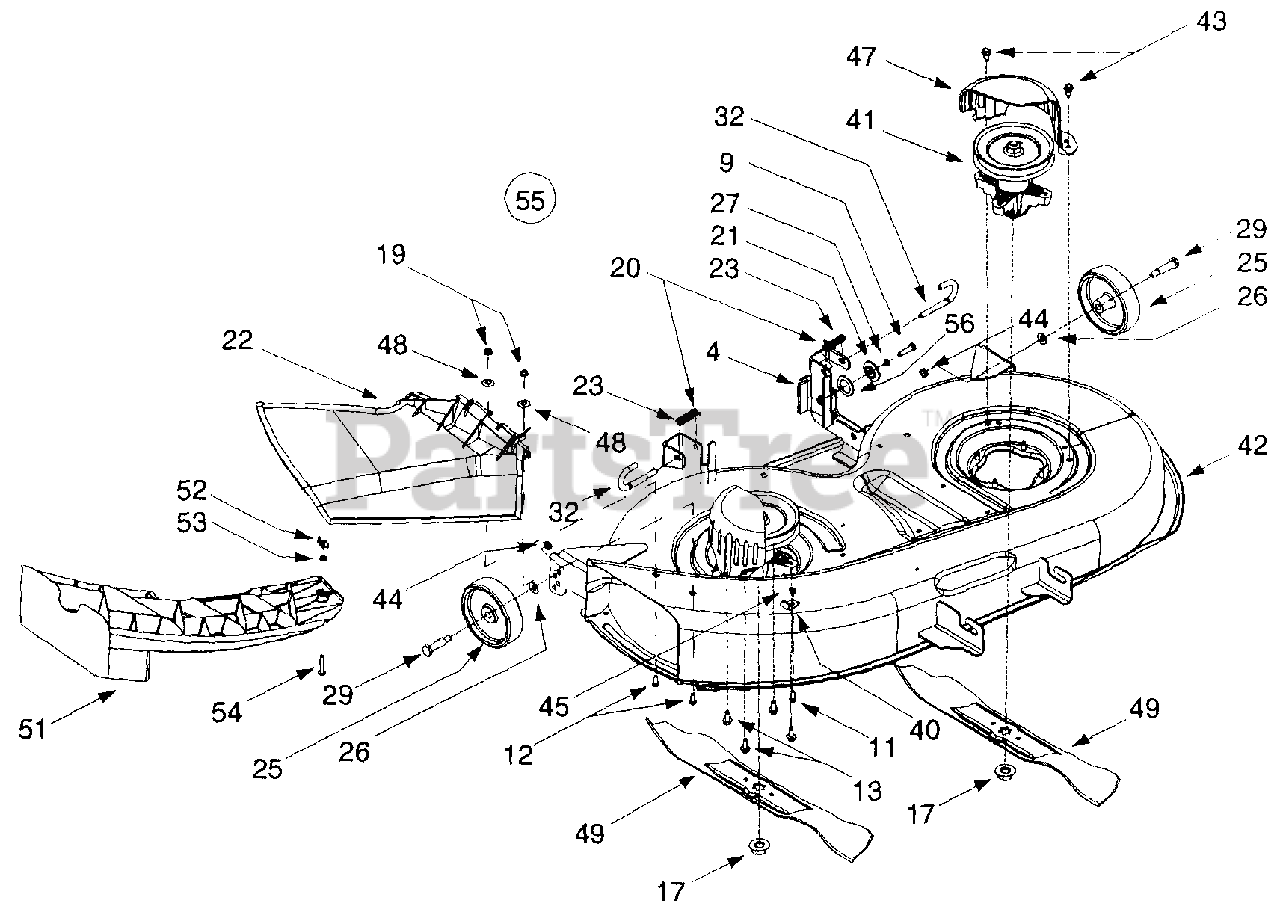

42-inch Cutting Deck Parts Diagram

  • Title

4

Cub Cadet 683-0254

Deck Adjustment Bracket w/ Weld Nut
(Superseded to 683-0254B)

Variations

Cub Cadet 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0650

USE 683-0254B-0650 BRACKET AS - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0665

USE 683-0254B-0665 BRACKET AS - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0650

Self Tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

20

Cub Cadet 714-0104

Internal Cotter Pin, .072 x 1.12

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 717-1553

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

22

Cub Cadet 731-1032A

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

23

Cub Cadet 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

25

Cub Cadet 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 738-0373

Shoulder Spacer, .498 x 1.53
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

32

Cub Cadet 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

?39

Cub Cadet 783-0805

RH Belt Cover
(Superseded to 783-0805C)

Variations

Cub Cadet 783-0805-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0805-0498

BELT COVER (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0805-0665

USE 783-0805C-0665 COVER-BELT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0805-0691

USE 783-0805C-0691 COVER-BELT - BLACK JACK (0691)

$

$

Not available

$

$

40

Cub Cadet 16606

Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

41

Cub Cadet 618-0324

Spindle Assembly, 5.75 Dia
(Superseded to 918-04197B)

$157.99

$

In Stock, only 2 left!

0

Cub Cadet 756-1151

Pulley Only

$

$

Not available

42

Cub Cadet 683-0198

42-inch Deck Shell
(Superseded to 983-0198G)

Variations

Cub Cadet 683-0198-0498

USE 983-0198G-0637 SHELL ASM- - OLD CUB YELLOW (0498)

$580.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0198-0637

USE 983-0198G-0637 SHELL ASM- - POWDER BLACK (0637)

$580.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0198-0665

USE 983-0198G-0637 SHELL ASM- - YARDMAN GREEN (0665)

$580.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0198-0691

USE 983-0198G-0637 SHELL ASM- - BLACK JACK (0691)

$580.99

$

Usually ships in 3-6 days

0

$580.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-0604

Self Tapping Screw, 5/16-18 x .625
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 712-0181

Top Lock Jam Nut, 3/8-16

$4.49

$

In Stock, only 3 left!

0

45

Cub Cadet 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

?46

Cub Cadet 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

47

Cub Cadet 731-2231

Belt Cover
(Superseded to 731-2231B)

$46.99

$

In Stock, only 3 left!

0

48

Cub Cadet 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 742-0616

Three-in-one Blade, Star Center, 21.23
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

51

Cub Cadet 731-1643A

Mulch Plug, 42-inch Decks
(Superseded to OEM-190-116)

$101.99

$

In Stock, only 2 left!

0

52

Cub Cadet 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 712-0291

Center Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 8

0

54

Cub Cadet 710-0106

Hex Cap Screw, 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

55

Cub Cadet 753-0851

42-inch Deck Assembly Complete (w/o mulch kit)
(Superseded to 953-0873)

Variations

Cub Cadet 753-0851-0498

DECK ASSEMBLY KIT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 753-0851-0637

USE 953-0873-0637 KIT-DECK AS - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 753-0851-0665

DECK ASSEMBLY KIT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 753-0851-0691

DECK ASSEMBLY KIT - BLACK JACK (0691)

$

$

Not available

$

$

56

Cub Cadet 736-0163

Flat Washer, 1.03 x 1.62 x .030

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 954-0472

PTO & Deck Belt

Note: (Not Shown)

$47.99

$

In Stock, only 4 left!

0
