16 R - Husqvarna String Trimmer (1985-01) General Assembly Parts Diagram

String Trimmer

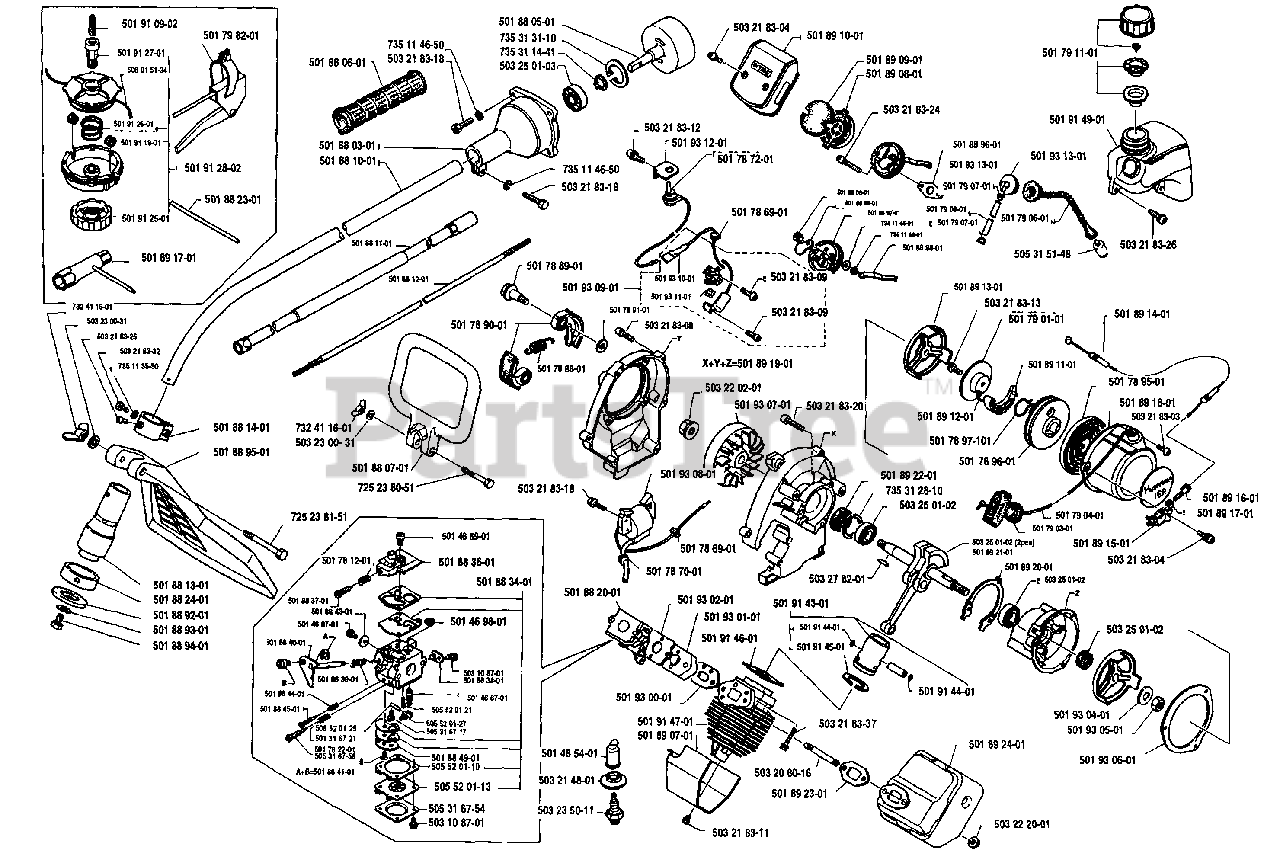

General Assembly Parts Diagram

  • Title
501910902

$9.99

$

In Stock, only 1 left!

0

501798201

Husqvarna 501798201

THROTTLE LEVER

$

$

Not available

501912701

$

$

Not available

508015134

Husqvarna 508015134

CORD F.GRASSTRIMMER15M NLA

$

$

Not available

501912601

Husqvarna 501912601

SPRING NLA

$

$

Not available

501911901

$4.99

$

In Stock, Qty 15

0

501912802

Husqvarna 501912802

TRIMMER HEAD CPL
(Superseded to 695000352)

$

$

Not available

501882301

$

$

Not available

501912501

Husqvarna 501912501

SUPPORTING KNOB

$

$

Not available

732411601

Husqvarna 732411601

WING NUT NLA

$

$

Not available

503230031

Husqvarna 503230031

WASHER 6.4X14

$

$

Not available

503218325

Husqvarna 503218325

SCREW M5X10

$

$

Not available

503218332

Husqvarna 503218332

SCREW 6X18

$

$

Not available

735113550

Husqvarna 735113550

REPL BY 735 11 53-50
(Superseded to 735115350)

$2.49

$

Usually ships in 3-10 days

0

501881401

Husqvarna 501881401

CLAMPING SLEEVE NLA

$

$

Not available

501881301

Husqvarna 501881301

BEARING HOUSING
(Superseded to 502148801)

$

$

Not available

501882401

$

$

Not available

501889201

Husqvarna 501889201

FLANGE NLA

$

$

Not available

501889301

Husqvarna 501889301

WASHER NLA

$

$

Not available

501889401

Husqvarna 501889401

SCREW M8X18L
(Superseded to 501785302)

$

$

Not available

501884401

Husqvarna 501884401

SPRING
(Superseded to 530035023)

$0.99

$

Usually ships in 3-10 days

0

501884501

Husqvarna 501884501

NEEDLE, LO SPEED NLA

$

$

Not available

505520125

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

$

$

Currently unavailable

501782201

$

$

Not available

505316758

$

$

Not available

501884101

Husqvarna 501884101

RETAINING SET NLA

$

$

Not available

505520113

Husqvarna 505520113

DIAPHRAGM
(Superseded to 504130808)

$51.99

$

In Stock, Qty 10

0

505316754

Husqvarna 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0

503108701

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

501466701

Husqvarna 501466701

INLET NEEDLE
(Superseded to 503117001)

$22.99

$

In Stock, Qty 8

0

505520121

Husqvarna 505520121

LEVER SPRING

$

$

Not available

505520127

$5.99

$

Usually ships in 3-10 days

0

505316717

$7.99

$

In Stock, Qty 6

0

501884901

$

$

Not available

505520110

Husqvarna 505520110

GASKET, METERING SIDE

$

$

Not available

501883801

$

$

Not available

503108701

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

501469801

Husqvarna 501469801

SCREEN
(Superseded to 501666101)

$14.99

$

Usually ships in 3-10 days

0

501883401

Husqvarna 501883401

REPAIR KIT

$

$

Not available

501883601

Husqvarna 501883601

PUMP COVER NLA

$

$

Not available

501466901

$9.49

$

In Stock, Qty 5

0

503218318

Husqvarna 503218318

SCREW W/WASHER 5X20

$

$

Not available

501788801

$

$

Not available

501789001

Husqvarna 501789001

CLUTCH
(Superseded to 502166201)

$

$

Not available

501788901

$3.49

$

Usually ships in 3-10 days

0

501930901

Husqvarna 501930901

CONTACT BREAKER ASSY NLA

$

$

Not available

501789101

$

$

Not available

503218308

Husqvarna 503218308

SCREW 4X20 NLA

$

$

Not available

501931101

$

$

Not available

501931001

Husqvarna 501931001

JOINT CABLE NLA

$

$

Not available

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

503218318

Husqvarna 503218318

SCREW W/WASHER 5X20

$

$

Not available

503218312

$

$

Not available

501931201

Husqvarna 501931201

BRACKET NLA

$

$

Not available

501787201

Husqvarna 501787201

STOP SWITCH NLA

$

$

Not available

501880601

Husqvarna 501880601

HANDLE NLA

$

$

Not available

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

503218318

Husqvarna 503218318

SCREW W/WASHER 5X20

$

$

Not available

501880301

Husqvarna 501880301

CLUTCH HOUSING CPL

$

$

Not available

501881001

Husqvarna 501881001

DRIVE TUBE

$

$

Not available

501881101

Husqvarna 501881101

SHAFT GUIDE

$

$

Not available

501881201

Husqvarna 501881201

DRIVE SHAFT NLA

$

$

Not available

501880501

Husqvarna 501880501

CLUTCH DRUM

$

$

Not available

735313110

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 2 left!

0

735311441

$

$

Not available

503250103

Husqvarna 503250103

BALL BEARING

$

$

Not available

503218304

Husqvarna 503218304

SCREW 4X16 NLA

$

$

Not available

501891001

Husqvarna 501891001

FILTER COVER

$

$

Not available

$

$

Currently unavailable

501890801

Husqvarna 501890801

FILTER HOLDER

$

$

Not available

503218324

$

$

Not available

501889601

$

$

Not available

501931301

Husqvarna 501931301

CONNECTION

$

$

Not available

501790701

$

$

Not available

501790801

Husqvarna 501790801

TUBE, FUEL
(Superseded to 501787801)

$

$

Not available

501790701

$

$

Not available

501890601

$

$

Not available

501889901

Husqvarna 501889901

CHOKE FLAP

$

$

Not available

501889701

Husqvarna 501889701

FILTER HOLDER NLA

$

$

Not available

$

$

Currently unavailable

735114601

Husqvarna 735114601

SPRING WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

501889801

Husqvarna 501889801

CHOKE LEVER

$

$

Not available

501914901

Husqvarna 501914901

FUEL TANK NLA

$

$

Not available

501931301

Husqvarna 501931301

CONNECTION

$

$

Not available

503218326

$

$

Not available

$

$

Currently unavailable

505315148

Husqvarna 505315148

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

501891301

Husqvarna 501891301

DRIVER NLA

$

$

Not available

503218313

Husqvarna 503218313

SCREW 5X11

$

$

Not available

501790101

Husqvarna 501790101

FRICTION PLATE

$

$

Not available

501891401

Husqvarna 501891401

THROTTLE WIRE NLA

$

$

Not available

501891101

$

$

Not available

501789501

Husqvarna 501789501

RECOIL SPRING

$

$

Not available

501891801

Husqvarna 501891801

STARTER ASS'Y NLA

$

$

Not available

503218309

Husqvarna 503218309

SCREW 4X10

$

$

Not available

503218309

Husqvarna 503218309

SCREW 4X10

$

$

Not available

$

$

Currently unavailable

503220201

Husqvarna 503220201

FLANGE NUT

$

$

Not available

$

$

Currently unavailable

503218320

Husqvarna 503218320

SCREW 5X25

$

$

Not available

501930801

Husqvarna 501930801

IGNITION COIL NLA

$

$

Not available

501786901

$

$

Not available

501892201

Husqvarna 501892201

SEALING RING

$

$

Not available

735312810

Husqvarna 735312810

RETAINING RING SGH 28

$7.49

$

In Stock, only 2 left!

0

503250102

Husqvarna 503250102

BALL BEARING

$

$

Not available

501891201

Husqvarna 501891201

SPRING NLA

$

$

Not available

501882001

Husqvarna 501882001

CARBURETOR NLA

$

$

Not available

501787001

$

$

Not available

501930201

Husqvarna 501930201

GASKET CARBURETOR
(Superseded to 502163201)

$

$

Not available

501930101

Husqvarna 501930101

INLET TUBE

$

$

Not available

501914601

Husqvarna 501914601

GASKET CYLINDER
(Superseded to 502162901)

$

$

Not available

501930001

Husqvarna 501930001

GASKET
(Superseded to 502163401)

$

$

Not available

503278201

$

$

Not available

501914301

Husqvarna 501914301

PISTON NLA

$

$

Not available

501914401

Husqvarna 501914401

RETAINING RING

$

$

Not available

501944501

$

$

Not available

501914401

Husqvarna 501914401

RETAINING RING

$

$

Not available

501485401

Husqvarna 501485401

SPARK PLUG CONN.
(Superseded to 501485402)

$13.99

$

In Stock, Qty 5

0

503214801

503214801

$

$

Not available

503235011

Husqvarna 503235011

SPARK PLUG NGK BPM7A
(Superseded to 952030150)

$3.99

$

In Stock, Qty 20+

0

501914701

$

$

Not available

501890701

Husqvarna 501890701

CYLINDER COVER

$

$

Not available

503218311

$

$

Not available

503206016

Husqvarna 503206016

REPL BY 725 53 29-55
(Superseded to 725532955)

$7.99

$

In Stock, Qty 20+

0

501892301

Husqvarna 501892301

GASKET
(Superseded to 502165101)

$

$

Not available

503218337

$

$

Not available

501892401

Husqvarna 501892401

SILENCER NLA

$

$

Not available

503222001

Husqvarna 503222001

STOVER NUT M5
(Superseded to 503222302)

$

$

Not available

501930601

$

$

Not available

501930501

$

$

Not available

501930401

Husqvarna 501930401

WASHER NLA

$

$

Not available

503250102

Husqvarna 503250102

BALL BEARING

$

$

Not available

503218304

Husqvarna 503218304

SCREW 4X16 NLA

$

$

Not available

501891501

$

$

Not available

503250102

Husqvarna 503250102

BALL BEARING

$

$

Not available

501892001

Husqvarna 501892001

GASKET CRANKCASE
(Superseded to 502162801)

$

$

Not available

501892101

Husqvarna 501892101

CRANKSHAFT W/BEARINGS NLA

$

$

Not available

503250102

Husqvarna 503250102

BALL BEARING

$

$

Not available

501790301

Husqvarna 501790301

STARTER HANDLE

$

$

Not available

501790401

Husqvarna 501790401

STARTER ROPE

$

$

Not available

501789601

Husqvarna 501789601

STARTER PULLEY

$

$

Not available

$

$

Currently unavailable

503218303

$

$

Not available

501891601

Husqvarna 501891601

ADJUSTING SCREW

$

$

Not available

501691701

Husqvarna 501691701

COMBI TOOL

$8.99

$

In Stock, only 2 left!

0

501791101

Husqvarna 501791101

TANK CAP
(Superseded to 502192101)

$

$

Not available

501691701

Husqvarna 501691701

COMBI TOOL

$8.99

$

In Stock, only 2 left!

0

732411601

Husqvarna 732411601

WING NUT NLA

$

$

Not available

503230031

Husqvarna 503230031

WASHER 6.4X14

$

$

Not available

501889501

Husqvarna 501889501

GUARD
(Superseded to 502104701)

$

$

Not available

501880701

Husqvarna 501880701

HANDLE NLA

$

$

Not available

725238051

Husqvarna 725238051

SCREW M6X50

$3.49

$

In Stock, only 1 left!

0

725238151

Husqvarna 725238151

SCREW M6X55

$4.99

$

In Stock, only 2 left!

0

501781201

Husqvarna 501781201

SPRING NLA

$

$

Not available

501883701

Husqvarna 501883701

IDLE SCREW NLA

$

$

Not available

501884301

Husqvarna 501884301

THROTTLE FLAP NLA

$

$

Not available

501468701

$7.99

$

Usually ships in 3-10 days

0

501884501

Husqvarna 501884501

NEEDLE, LO SPEED NLA

$

$

Not available
