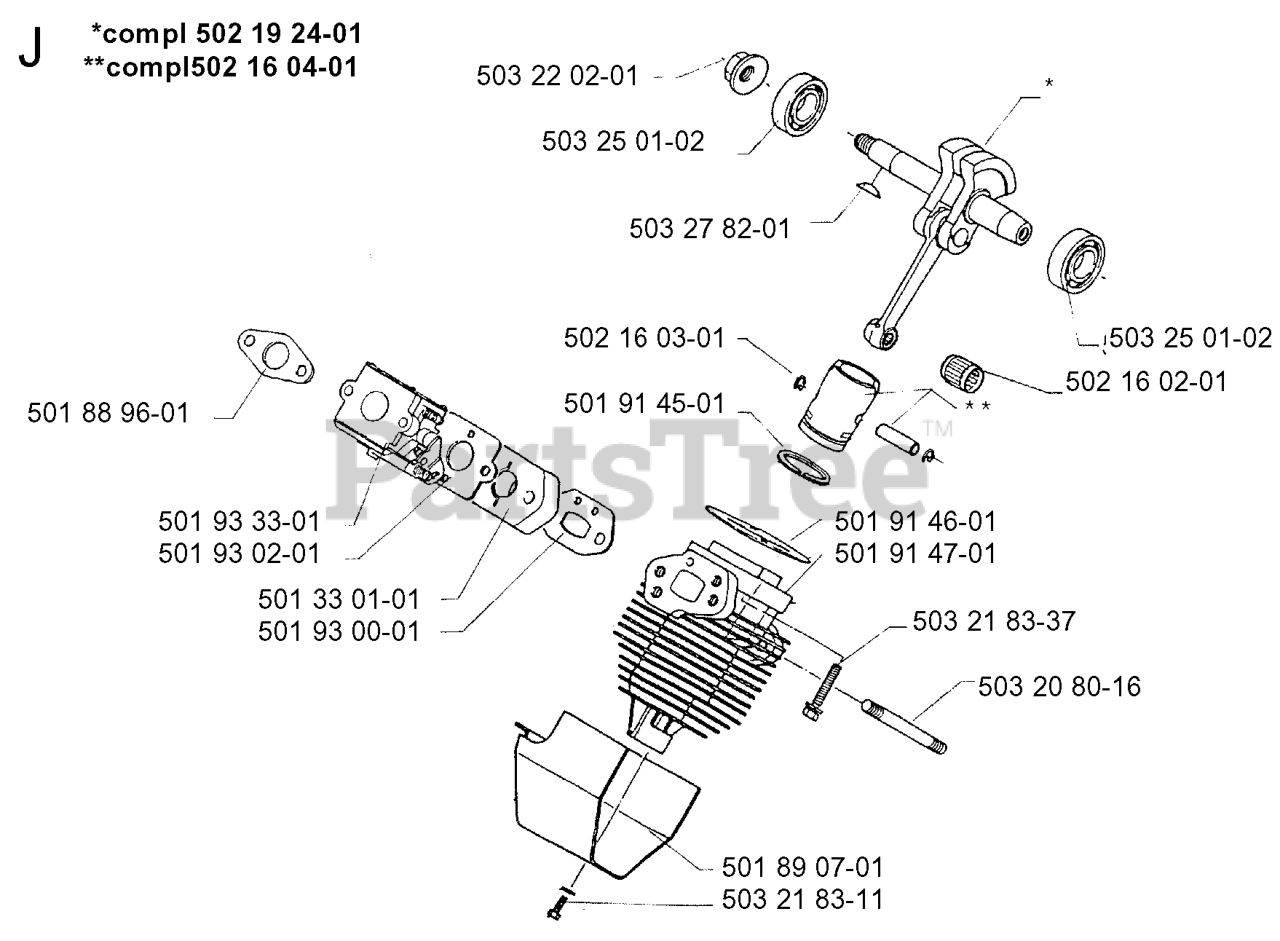

16 H - Husqvarna Hedge Trimmer (1990-02) CYLINDER PISTON Parts Diagram

Hedge Trimmer

CYLINDER PISTON Parts Diagram

  • Title

503 25 01-02

Husqvarna 5032501-02

Ball Bearing

$

$

Currently unavailable

502 19 24-01

Husqvarna 502192401

NEEDS DESCRIPTION

$

$

Not available

502 16 03-01

Husqvarna 502160301

RETAINING RING NLA

$

$

Not available

501 93 02-01

Husqvarna 501930201

GASKET CARBURETOR
(Superseded to 502163201)

$

$

Not available

501 33 01-01

Husqvarna 501330101

NEEDS DESCRIPTION

$

$

Currently unavailable

503 20 80-16

Husqvarna 503208016

STUD

$

$

Not available

502 16 04-01

Husqvarna 502160401

NEEDS DESCRIPTION

$

$

Not available

503 27 82-01

Husqvarna 503278201

KEY NLA

$

$

Not available

502 16 02-01

Husqvarna 502160201

NEEDLE BEARING NLA

$

$

Not available

501 88 96-01

Husqvarna 501889601

GASKET

$

$

Not available

501 93 00-01

Husqvarna 501930001

GASKET
(Superseded to 502163401)

$

$

Not available

501 91 46-01

Husqvarna 501914601

GASKET CYLINDER
(Superseded to 502162901)

$

$

Not available

501 91 47-01

Husqvarna 501914701

CYLINDER

$

$

Not available

501 89 07-01

Husqvarna 501890701

CYLINDER COVER

$

$

Not available

503 21 83-37

Husqvarna 503218337

SCREW NLA

$

$

Not available

501 91 45-01

Husqvarna 501914501

PISTON RING NLA

$

$

Not available

503 21 83-11

Husqvarna 5032183-11

Screw 5x8

$

$

Currently unavailable

503 22 02-01

Husqvarna 5032202-01

Flange Nut

$

$

Currently unavailable

501 93 33-01

Husqvarna 501933301

CARBURETOR
(Superseded to 503281319)

$

$

Not available
