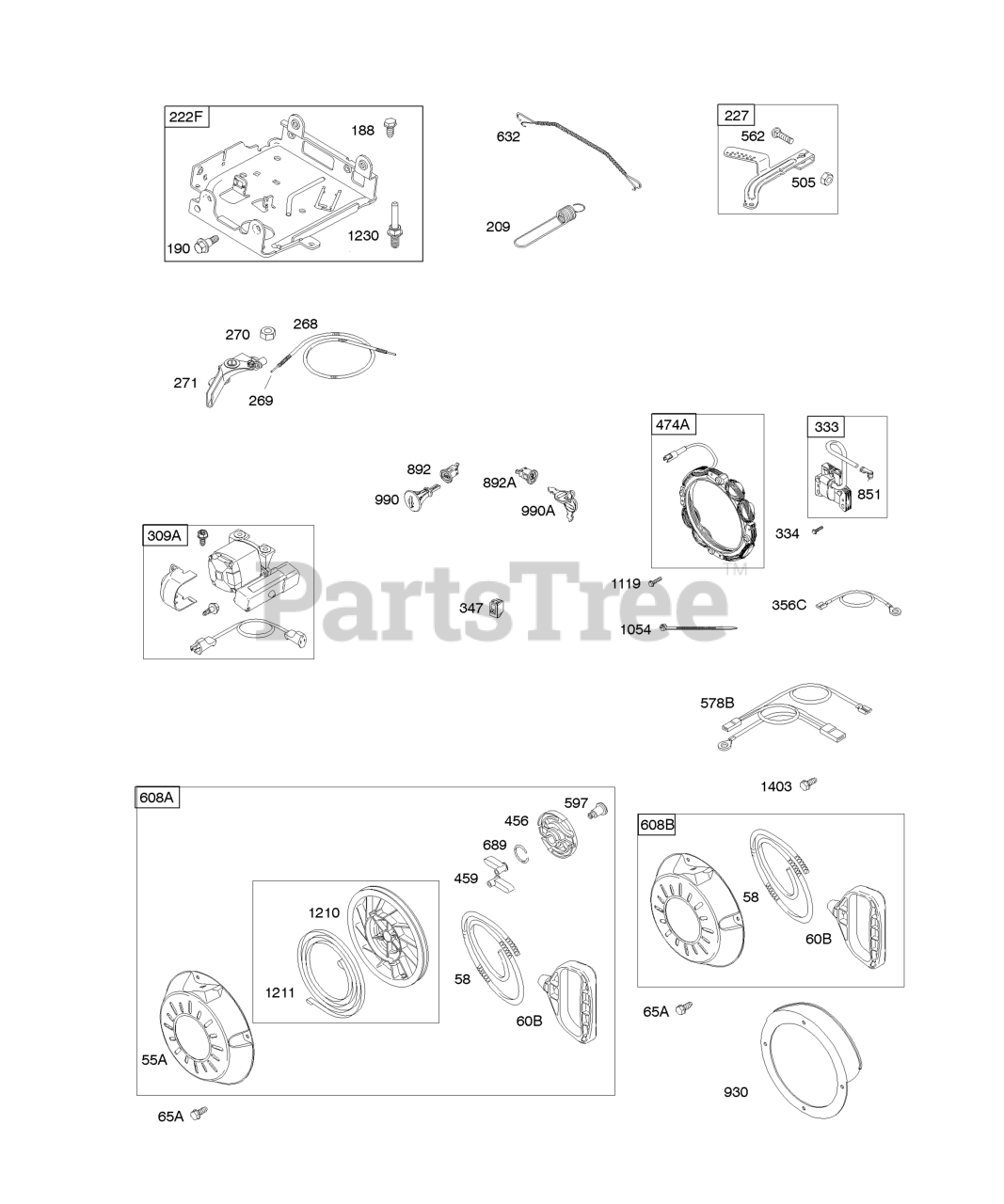

15Z114-0111-E1 - Briggs & Stratton Horizontal Engine Controls, Electric Starter, Governor Spring, Ignition, Rewind Starter Parts Diagram

Horizontal Engine

Controls, Electric Starter, Governor Spring, Ignition, Rewind Starter Parts Diagram

  • Title

55A

Briggs & Stratton 696710

Housing-Rewind Starter

$45.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 693389

ROPE, Starter (Cut To Required Length)

Note: (Cut To Required Length)

$9.49

$

In Stock, only 2 left!

0

60B

Briggs & Stratton 699334

GRIP, Starter Rope

$13.99

$

In Stock, only 1 left!

0

65A

Briggs & Stratton 699851

Screw

Note: (Rewind Starter)

$3.99

$

In Stock, Qty 9

0

188

Briggs & Stratton 699479

SCREW

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 699220

Screw
(Superseded to 597133)

Note: (Fuel Tank)

$4.99

$

In Stock, Qty 6

0

209

Briggs & Stratton 692571

Spring-Governor

$7.49

$

Usually ships in 2-12 days

0

222F

Briggs & Stratton 793100

Bracket-Control

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 692573

Lever-Governor Control
(Superseded to 794367)

$16.99

$

In Stock, Qty 6

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing) (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

309A

Briggs & Stratton 793667

Motor-Starter
(Superseded to 798884)

$236.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 695711

Armature-Magneto
(Superseded to 796964)

$55.99

$

In Stock, Qty 10

0

334

Briggs & Stratton 699477

SCREW

Note: (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 698338

Switch-Rocker
(Superseded to 795333)

$13.99

$

In Stock, only 1 left!

0

356C

Briggs & Stratton 695630

WIRE, Stop

$7.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 9

0

474A

Briggs & Stratton 791743

Alternator
(Superseded to 793640)

$67.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

578B

Briggs & Stratton 791956

Wire Assembly

$22.99

$

Usually ships in 2-12 days

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

608A

Briggs & Stratton 699335

Starter-Rewind

Note: Used Before Code Date 10072000

$87.99

$

In Stock, Qty 6

0

608B

Briggs & Stratton 797430

Starter-Rewind

Note: Used After Code Date 10071900

$87.99

$

In Stock, only 1 left!

0

632

Briggs & Stratton 692653

Spring/Link-Mechanical Governor

$8.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

892

Briggs & Stratton 791944

Switch-Key

$14.99

$

In Stock, only 1 left!

0

892A

Briggs & Stratton 798182

SWITCH, Key

$28.99

$

In Stock, only 2 left!

0

930

Briggs & Stratton 696709

Guard-Rewind

$

$

Not available

990

Briggs & Stratton 695756

Key Set
(Superseded to 794696)

$7.49

$

In Stock, Qty 15

0

990A

Briggs & Stratton 798177

SET, Key
(Superseded to 847146)

$31.99

$

In Stock, only 2 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 699772

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0

1210

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Pulley) (Pulley)

$19.99

$

In Stock, Qty 20+

0

1211

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Spring) (Spring)

$19.99

$

In Stock, Qty 20+

0

1230

Briggs & Stratton 699847

Stud

Note: (Control Bracket)

$5.99

$

In Stock, only 1 left!

0

1403

Briggs & Stratton 699481

SCREW

Note: (Wire Assembly)

$3.99

$

In Stock, only 3 left!

0
