15T232-0224-F8 - Briggs & Stratton Horizontal Engine Crankshaft Group Parts Diagram

Horizontal Engine

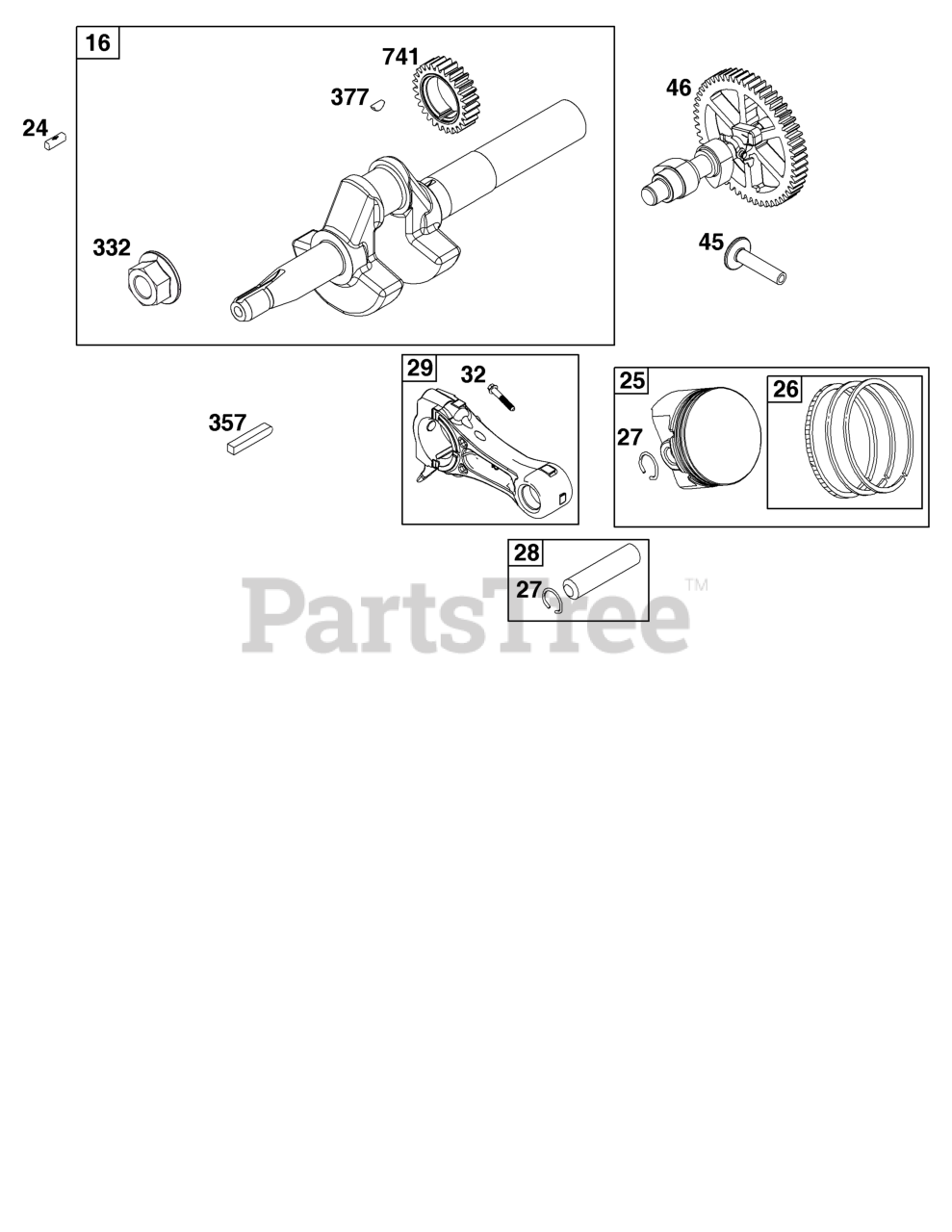

Crankshaft Group Parts Diagram

  • Title

16

Briggs & Stratton 797072

CRANKSHAFT

$192.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 796335

KEY, Flywheel

$5.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 791786

PISTON ASSEMBLY

Note: (Standard)

$122.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 791791

PISTON ASSEMBLY

Note: (.020 Oversize)

$130.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791787

SET, Ring

Note: (Standard)

$38.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 791792

SET, Ring

Note: (.020" Oversize)

$45.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690975

LOCK, Piston Pin

$3.99

$

In Stock, Qty 11

0

28

Briggs & Stratton 690229

PIN, Piston

Note: (Standard)

$17.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 791783

ROD, Connecting

$61.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 791784

SCREW

Note: (Connecting Rod)

$4.99

$

In Stock, only 1 left!

0

45

TAPPET, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

46

Briggs & Stratton 693404

CAMSHAFT

$73.99

$

In Stock, Qty 5

0

332

NUT

Note: (Part information located in Flywheel/Ignition/Starter Group.)

$

$

Not available

357

Briggs & Stratton 692191

KEY, Drive Pulley

$

$

Not available

377

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 695087

GEAR, Timing

$18.99

$

Usually ships in 2-12 days

0
