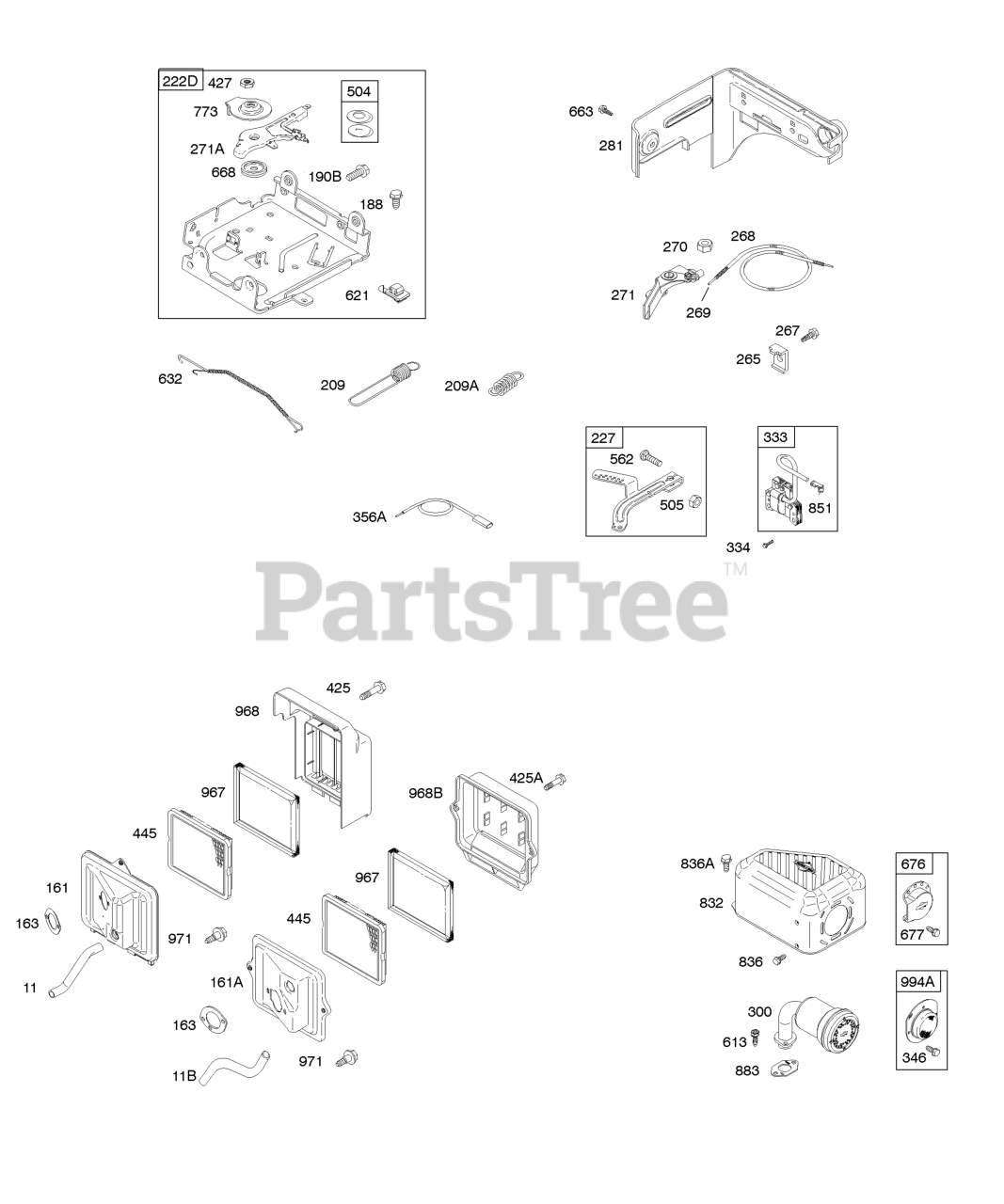

15T112-0586-F8 - Briggs & Stratton Horizontal Engine Air Cleaner, Controls, Exhaust System, Governor Spring, Ignition Parts Diagram

Horizontal Engine

Air Cleaner, Controls, Exhaust System, Governor Spring, Ignition Parts Diagram

  • Title

11

Briggs & Stratton 692600

Tube-Breather

Note: (Flat Panel Air Cleaner)

$10.99

$

Usually ships in 2-12 days

0

11B

Briggs & Stratton 790632

Tube-Breather

Note: (Ultra Low Mount Air Cleaner)

$10.99

$

In Stock, only 1 left!

0

161

Briggs & Stratton 795567

Base-Air Cleaner

Note: (Metal) (Flat Panel Air Cleaner)

$

$

Not available

161A

Briggs & Stratton 795231

Base-Air Cleaner

Note: (Metal) (Ultra Low Mount Air Cleaner)

$37.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 696024

Gasket-Air Cleaner

$5.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 699479

SCREW

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

190B

Briggs & Stratton 795047

Screw

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 692571

Spring-Governor

$7.49

$

In Stock, only 1 left!

0

209A

Briggs & Stratton 691278

Spring-Governor

$7.99

$

In Stock, only 2 left!

0

222D

Briggs & Stratton 795669

Bracket-Control

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 692573

Lever-Governor Control
(Superseded to 794367)

$16.99

$

In Stock, Qty 6

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 699492

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, Qty 12

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

271A

Briggs & Stratton 694256

Lever-Control

$19.99

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 793133

Panel-Control

$15.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 693593

Muffler

$37.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 695711

Armature-Magneto
(Superseded to 796964)

$55.99

$

In Stock, Qty 9

0

334

Briggs & Stratton 699477

SCREW

Note: (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 690661

SCREW

Note: (Spark Arrestor) (SAE)

$3.49

$

In Stock, Qty 8

0

346

Briggs & Stratton 699203

SCREW

Note: (Spark Arrestor) (Metric)

$3.99

$

Usually ships in 2-12 days

0

356A

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

425

Briggs & Stratton 699208

Screw

Note: (Air Cleaner Cover)

$3.99

$

In Stock, Qty 11

0

425A

Briggs & Stratton 699492

SCREW

Note: (Air Cleaner Cover)

$3.99

$

In Stock, Qty 12

0

427

Briggs & Stratton 694255

Nut

Note: (Control Bracket) (SAE)

$3.49

$

In Stock, only 1 left!

0

427

Briggs & Stratton 798458

NUT

Note: (Control Bracket) (Metric)

$3.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 491588S

FILTER, A/C Cartridge

$6.49

$

In Stock, Qty 20+

0

504

Briggs & Stratton 694254

Washer Set-Friction
(Superseded to 695383)

$10.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

613

Briggs & Stratton 699209

Screw
(Superseded to 791972)

Note: (Muffler)

$4.49

$

In Stock, only 3 left!

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

632

Briggs & Stratton 693408

Spring/Link-Mechanical Governor

$8.99

$

In Stock, only 3 left!

0

663

Briggs & Stratton 699206

Screw

Note: (Control Panel)

$3.99

$

In Stock, only 3 left!

0

668

Briggs & Stratton 694257

Spacer

$4.99

$

In Stock, only 1 left!

0

676

Briggs & Stratton 393757

Deflector-Muffler
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

677

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector) (SAE)

$3.49

$

In Stock, Qty 8

0

677

Briggs & Stratton 699203

SCREW

Note: (Muffler Deflector) (Metric)

$3.99

$

Usually ships in 2-12 days

0

773

Briggs & Stratton 694258

Retainer

Note: (Control Bracket)

$4.49

$

In Stock, only 1 left!

0

832

Briggs & Stratton 693583

Guard-Muffler
(Superseded to 593953)

Note: (Lo Tone)

$45.99

$

In Stock, only 1 left!

0

836

Briggs & Stratton 699203

SCREW

Note: (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0

836A

Briggs & Stratton 699632

Screw

Note: (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: (Between Adapter And Cylinder)

$4.49

$

In Stock, Qty 20+

0

967

Briggs & Stratton 493537S

Filter-Pre Cleaner

Note: (Flat Panel)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 692584

Cover-Air Cleaner

Note: (Flat Panel Air Cleaner)

$29.99

$

In Stock, Qty 20+

0

968B

Briggs & Stratton 791082

COVER, Air Cleaner

Note: (Ultra Low Mount Air Cleaner)

$20.99

$

In Stock, Qty 13

0

971

Briggs & Stratton 690370

Screw

Note: (Air Cleaner Base to Carburetor) (SAE)

$3.99

$

In Stock, Qty 20+

0

971

Briggs & Stratton 798649

Screw

Note: (Air Cleaner Base to Carburetor) (Metric)

$3.99

$

Usually ships in 2-12 days

0

994A

Briggs & Stratton 399541

Arrestor-Spark

$28.99

$

Usually ships in 2-12 days

0
