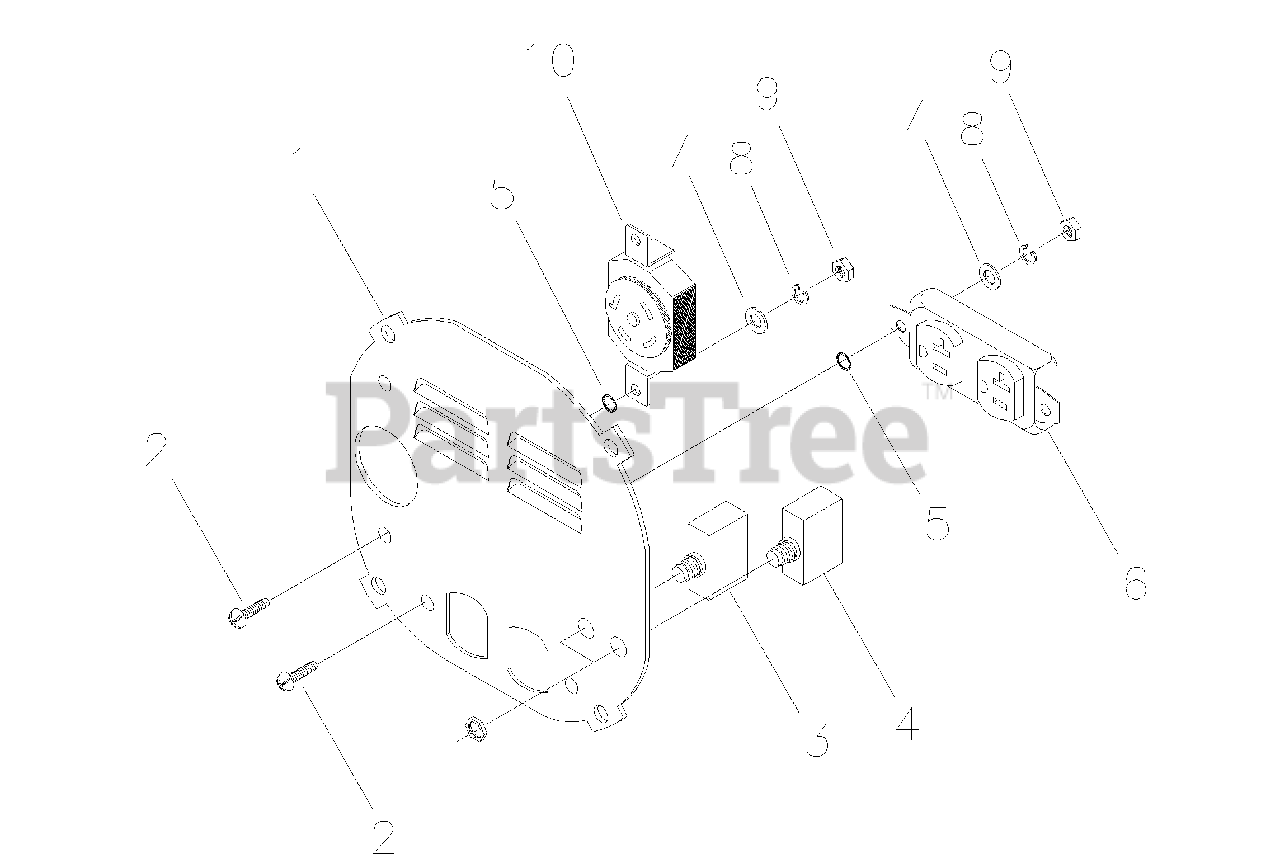

1576-0 - Generac 3,600 Watt Portable Generator Control Panel Parts Diagram

3,600 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton B95600

COVER, Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 75475

PPHMS, M4 0.7 x 10

$

$

Not available

3

Briggs & Stratton 94396B

CIRCUIT BREAKER
(Superseded to 94396BGS)

$30.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 94396A

CIRCUIT BREAKER
(Superseded to 94396AGS)

$35.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 23365

WASHER, #8 Shakeproof
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68759

OUTLET, 120V, 20A Duplex
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 38150

WASHER, Flat, #8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22264

WASHER, Lock #8

$

$

Not available

9

Briggs & Stratton 51715

NUT, M4 - 0.7 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 68867

CONNECTOR, 120/240V, 20 Amp, Locking
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0
