1575 (1691923) - Simplicity Walk-Behind Mower Gear Reducer Group (Power-Propelled Models) Parts Diagram

Walk-Behind Mower

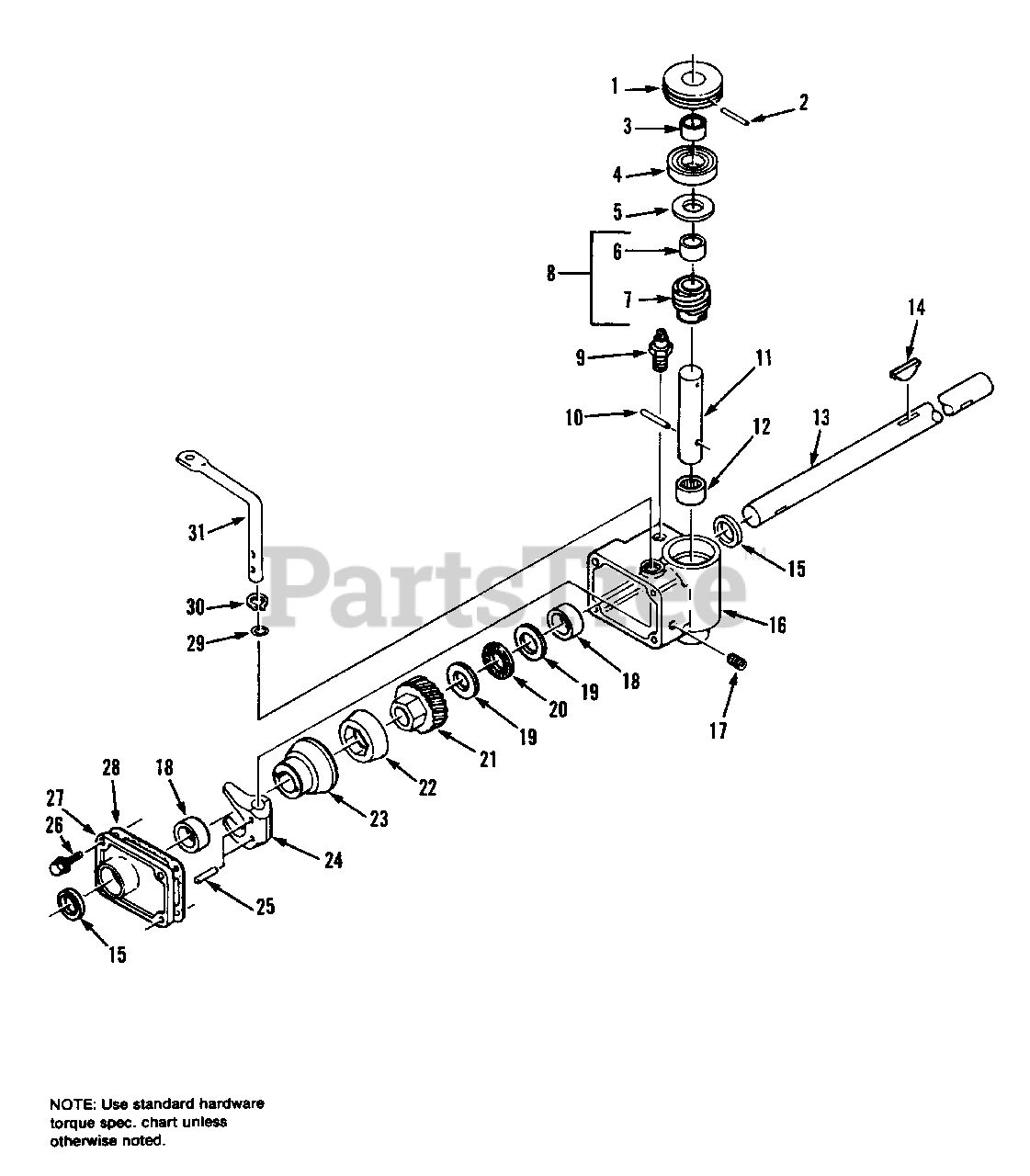

Gear Reducer Group (Power-Propelled Models) Parts Diagram

  • Title

1

Simplicity 1706239

PULLEY

$

$

Not available

2

Simplicity 1612293

PlN

$

$

Not available

3

Simplicity 1706243

WASHER

$

$

Not available

4

Simplicity 1665521SM

BEARING

$16.99

$

Usually ships in 2-12 days

0

5

Simplicity 1612313

WASHER

$

$

Not available

6

Simplicity 1612314

SPACER

$

$

Not available

7

WORM GEAR (See Ref. No. 8)

$

$

Not available

8

Simplicity 1612324

WORM GEAR ASSY. (Incl. Ref. Nos. 6 & 7)

$

$

Not available

9

Simplicity 1612310

VENT

$

$

Not available

10

Simplicity 1612294

PIN

$

$

Not available

11

Simplicity 1706242

SHAFT, Worm

$

$

Not available

12

Simplicity 1612317

BEARING, Needle

$

$

Not available

13

Simplicity 1612390

SHAFT, Drive

$

$

Not available

14

Simplicity 2805119SM

KEY

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1612248

SEAL

$

$

Not available

16

Simplicity 1612318

GEAR REDUCER ASSY. (Incl. Ref. Nos. 12, 15 & 18)

$

$

Not available

17

Simplicity 2817673

PLUG

$

$

Not available

18

Simplicity 1612379

BUSHING

$

$

Not available

19

Simplicity 1612311

RACE, Bearing

$

$

Not available

20

Simplicity 1612312

BEARING, Thrust

$

$

Not available

21

Simplicity 1706240

GEAR

$

$

Not available

22

Simplicity 1612377

CONE, Friction

$

$

Not available

23

Simplicity 1706241

DRUM, Clutch

$

$

Not available

24

Simplicity 1612308

FORK, Shift

$

$

Not available

25

Simplicity 1612292

PIN

$

$

Not available

26

Simplicity 1930594SM

SCREW
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 1612309

COVER, Gear Box (Incl. Ref. Nos. 15 & 18)

$

$

Not available

28

Simplicity 1612247

GASKET

$

$

Not available

29

Simplicity 170837

O-RING

$

$

Not available

30

Simplicity 1612287

SNAP RING

$

$

Not available

31

Simplicity 1612403

LEVER, Shift

$

$

Not available
