1575 (1691923) - Simplicity Walk-Behind Mower Engine, Wheels & Deck Group Parts Diagram

Walk-Behind Mower

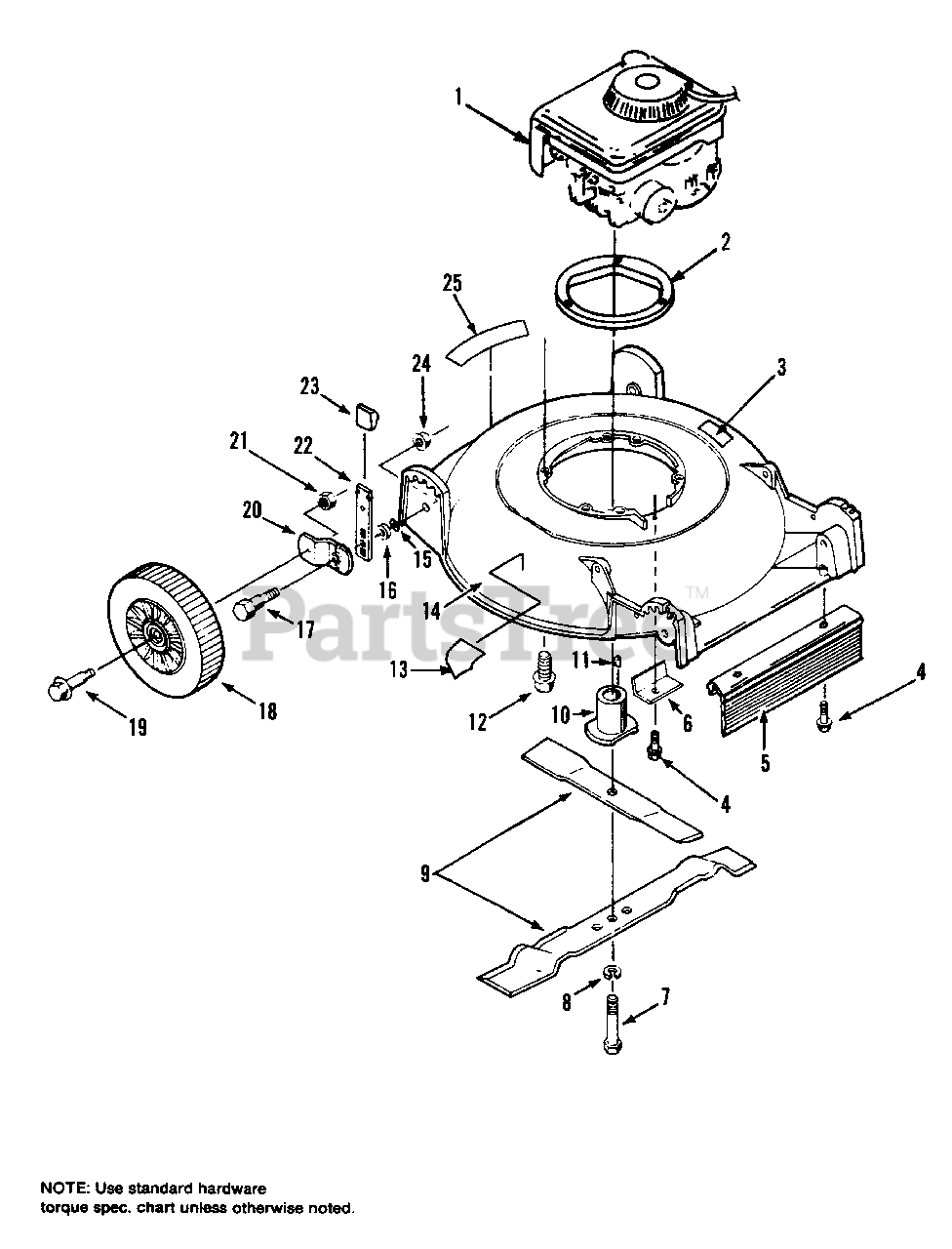

Engine, Wheels & Deck Group Parts Diagram

  • Title

1

ENGINE, 5.0 HP ENGINE, 4.0 HP Quantum

$

$

Not available

2

Simplicity 1612410

RING, Engine

$

$

Not available

3

Simplicity 1706207

DECAL, Warning

$

$

Not available

4

Simplicity 1925592SM

SCREW, Hex Hd., 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

5

Simplicity 1706215

SHIELD, Rear

$

$

Not available

6

Simplicity 1706213

COVER, Belt Opening (1691922 Only)

$

$

Not available

7

Simplicity 927322

SCREW, 3/8-24 x 2

$

$

Not available

8

Simplicity 1916965SM

WASHER, Lock, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 1706167

BLADE KIT

$

$

Not available

10

Simplicity 1706214

ADAPTER, Blade

$

$

Not available

11

Simplicity 2818312SM

KEY
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

12

Simplicity 1930598SM

SCREW, Hex Hd., 3/8-16 X 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1706208

DECAL, Warning

$

$

Not available

14

Simplicity 1706206

DECK, 20" Push

$

$

Not available

14

Simplicity 1706209

DECK, 20" Self-Propelled

$

$

Not available

15

Simplicity 1919326SM

WASHER, 5/16-18 (Qty. 2 on 1691923)

$4.49

$

In Stock, Qty 6

0

16

Simplicity 1612225

SPACER, (Qty. 2 on 1691923)

$

$

Not available

17

Simplicity 1612235

BOLT, Hex Hd., 5/16-18 (Qty. 2 on 1691923)

$

$

Not available

18

Simplicity 1706203

WHEEL & TIRE ASSY., (Qty. 2 on 1691923)

$

$

Not available

19

Simplicity 1612385

BOLT, Axle, 3/8-16 (Qty. 2 on 1691923)

$

$

Not available

20

Simplicity 1612346

ARM, Wheel Adjustment (Qty. 2 on 1691923)

$

$

Not available

21

Simplicity 1960251SM

NUT, 3/8-16 (Qty. 2 on 1691923)
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

22

Simplicity 1612305

SPRING (Qty. 2 on 1691923)

$

$

Not available

23

Simplicity 1612215

KNOB (Qty. 2 on 1691923)

$

$

Not available

24

Simplicity 1935048SM

NUT, Flange, 5/16-18 (Qty. 2 on 1691923)
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1612183

DECAL, 20" Simplicity

$

$

Not available
