1572 (148-710-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Steering Column Parts Diagram

Super Garden Tractor

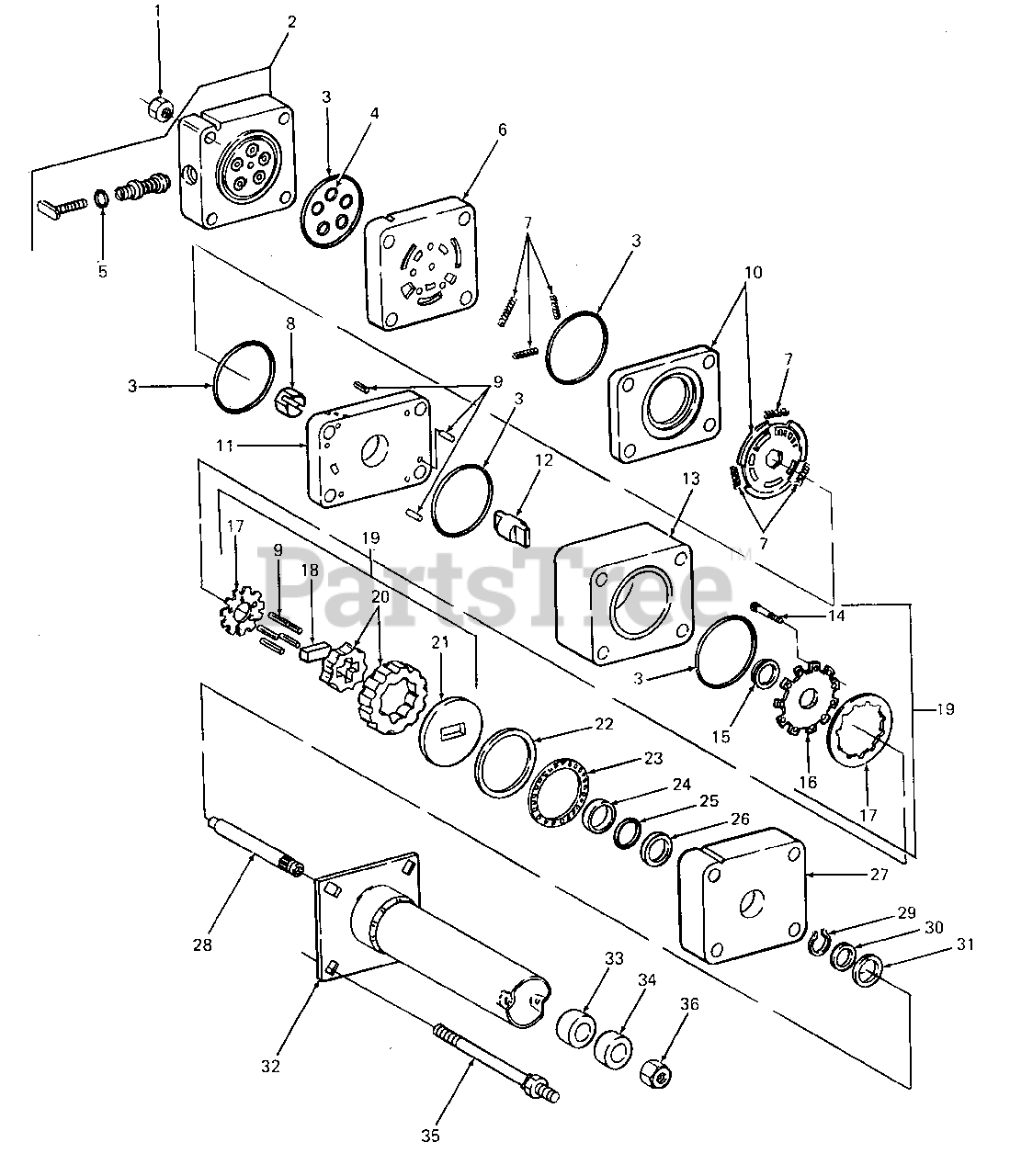

Steering Column Parts Diagram

  • Title

Cub Cadet 703-1481

Steering Column Assy

$

$

Not available

1

Cub Cadet RG-G103025

Nut, Hex, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

2

Cub Cadet RG-HGF016003-A1

Power Cover & Check Valve Assy
(Superseded to RG-HGF016015-X1)

Note: (Includes Ref No. 5)

$

$

Not available

3

Cub Cadet RG-032755

Ring, Seal

$

$

Not available

$

$

Not available

$

$

Not available

6

Cub Cadet RG-HGF015002

Manifold, Port

$

$

Not available

7

$

$

Not available

8

Cub Cadet RG-HGF013001-A1

Drive Assy, Hex

$

$

Not available

9

Cub Cadet RG-040147-X1

Roller Kit, Needle

$

$

Not available

10

Cub Cadet RG-HGF014000-A1

Valve & Ring Assy

$

$

Not available

11

Cub Cadet RG-HGF015000

Manifold, Isolation

$

$

Not available

12

$

$

Not available

13

Cub Cadet RG-HGF019008

Ring, Metering

$

$

Not available

$

$

Not available

$

$

Not available

16

Cub Cadet RG-HGF014001

Cover, Commutator

$

$

Not available

17

Cub Cadet RG-HGF014002-A1

Commutator & Ring Assy

$

$

Not available

18

Cub Cadet RG-477301-0034

Spacer, Drive Link

$

$

Not available

19

Cub Cadet RG-HGF013000-A2

Metering Assy

Note: [Includes Ref No. 9 (Qty 2), 14, 16, 17, 18, 20 & 21]

$

$

Not available

20

$

$

Not available

21

$

$

Not available

$

$

Not available

23

Cub Cadet RG-066978

Bearing, Thrust

$

$

Not available

24

Cub Cadet RG-032763

Seal, Face
(Superseded to RG-478046)

$

$

Not available

25

Cub Cadet RG-032770

Ring, Back-up
(Superseded to RG-SK000097)

$

$

Not available

26

Cub Cadet RG-477297

Seal, Spacer

$

$

Not available

27

Cub Cadet RG-HGF016001

Plate, Upper Cover

$

$

Not available

28

Cub Cadet RG-086112-S12679

Input Shaft Assy

Note: (Includes Ref No. 29)

$

$

Currently unavailable

29

Cub Cadet RG-401465

Ring, Retaining

$

$

Not available

$

$

Not available

31

Cub Cadet RG-028495

Plate, Retaining

$

$

Not available

32

Cub Cadet 759-3374

Upper Cover & Tube Assy

$

$

Not available

33

Cub Cadet RG-061016

Bearing, Column
(Superseded to RG-061016X1)

$

$

Not available

34

Cub Cadet RG-402405

Dust Seal, Column

$

$

Not available

35

Cub Cadet RG-021360-0462

Bolt, Special

$

$

Not available

36

Cub Cadet 712-3056

Hex Jam Nut, 5/8-18

$4.99

$

In Stock, Qty 13

0

Cub Cadet RG-SK000011

Kit, Seal
(Superseded to RG-SK000097)

Note: [Includes Ref No. 3 (Qty 5), 4 (Qty 5), 5, 15, 24 & 25)]

$

$

Not available
