1572 (148-710-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Main Bearing Case Parts Diagram

Super Garden Tractor

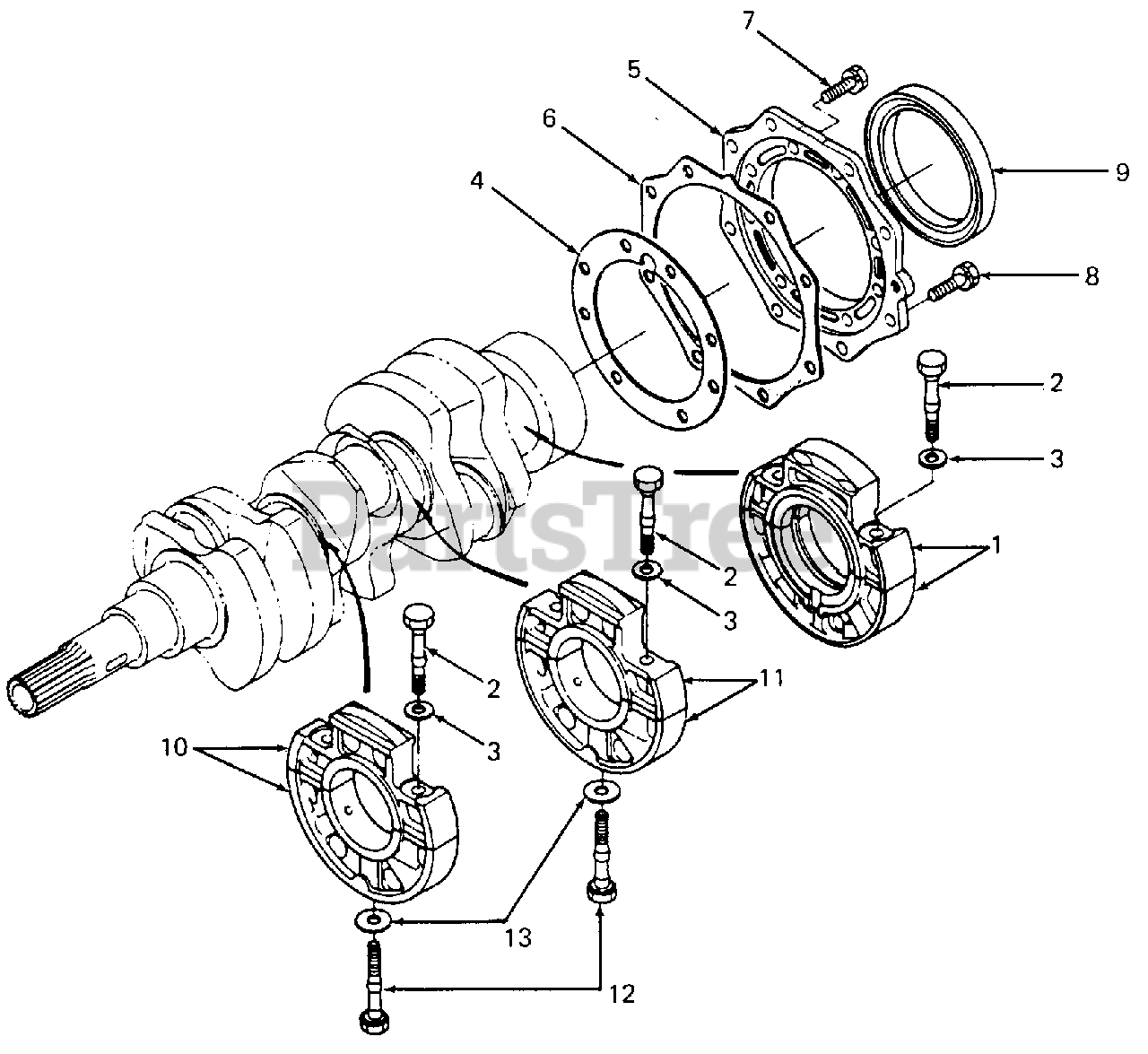

Main Bearing Case Parts Diagram

  • Title
1

Cub Cadet KB-15841-04090

Case, Main Bearing

$

$

Not available

2

Cub Cadet KB-14601-04540

Bolt, Bearing Case

$

$

Not available

3

Cub Cadet KB-14601-04570

Washer, Bearing Case

$

$

Currently unavailable

4

Cub Cadet KB-15841-04360

Shim, Bearing Case
(Superseded to KB-15852-04360)

$

$

Not available

5

Cub Cadet KB-15841-04810

Cover, Bearing Case

$

$

Not available

6

Cub Cadet KB-15841-04820

Gasket, Bearing Case
(Superseded to KB-15841-04823)

$12.99

$

Usually ships in 3-6 days

0

7

Cub Cadet KB-01023-50620

Screw, Hex Cap w/Washer

$

$

Not available

8

Cub Cadet KB-01023-50622

Screw, Hex Cap

$

$

Not available

$

$

Not available

10

Cub Cadet KB-15841-04040

Case, Main Bearing - 1

$

$

Not available

11

Cub Cadet KB-15861-04050

Case, Main Bearing - 2

$

$

Not available

12

Cub Cadet KB-15841-04560

Bolt, Bearing Case

$

$

Currently unavailable

13

Cub Cadet KB-15841-04580

Washer, Bearing Case

$

$

Currently unavailable
