1572 (148-710-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Instrument Panel & Controls Parts Diagram

Super Garden Tractor

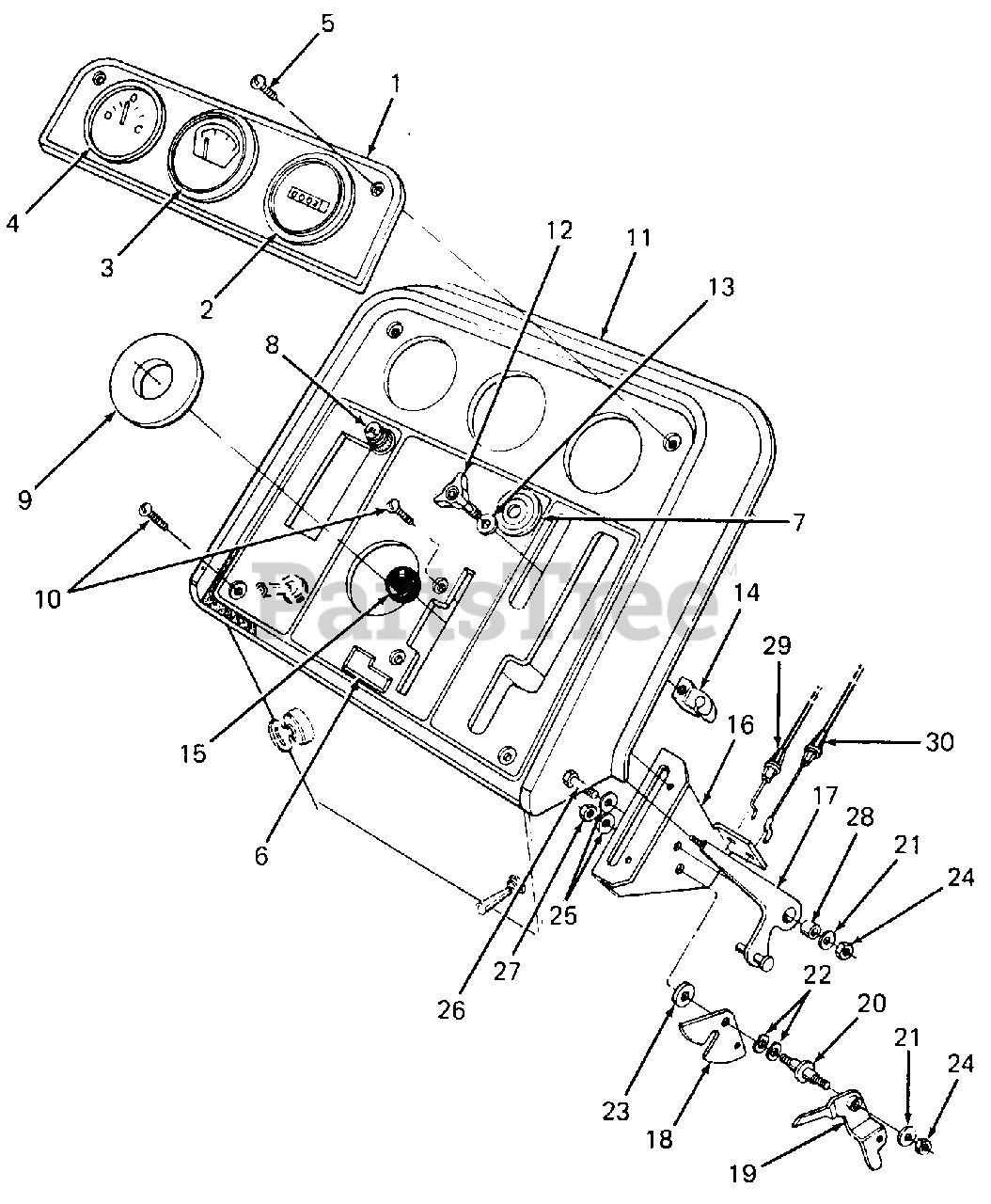

Instrument Panel & Controls Parts Diagram

  • Title
1

Cub Cadet 731-3037

Cover, Panel

$

$

Not available

2

Cub Cadet 725-3058

Hourmeter

$

$

Not available

3

Cub Cadet KB-19488-83030

Gauge, Water Temperature
(Superseded to KB-H1940-83000)

$298.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 725-3023

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

5

Cub Cadet 710-3143

Screw, Pan Hd Cutting, #10-24 X 1.5 Lg

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 731-3041

Plate, Throttle Adhesive, Locktite #495

$

$

Not available

7

Cub Cadet KB-15521-65950

Indicator, Glow Plug

$

$

Not available

8

Cub Cadet 725-3134

Light, Oil Indicator

$

$

Not available

Cub Cadet 725-3125

Bulb, Light

$

$

Not available

9

Cub Cadet 735-3002

Grommet, Instrument Panel

$

$

Not available

10

Cub Cadet 710-3009

Screw, Pan Hd Cutting, #10-24 X .75 Lg

$7.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-1018

Panel, Instrument

$

$

Not available

$

$

Not available

13

Cub Cadet 736-3020

Washer, Flat, .266 X .625 X .036 Thk

$6.99

$

In Stock, Qty 9

0

14

Cub Cadet 731-3007

Stop, Handle Detent

$

$

Not available

15

Cub Cadet 720-0166

Knob, Ball

$

$

Not available

16

Cub Cadet 703-0950

Bracket, Throttle Control Support

$

$

Not available

17

Cub Cadet 703-1001

Lever, Throttle Control

$

$

Not available

18

Cub Cadet 703-0952

Cam, Throttle Control

$

$

Not available

19

Cub Cadet 703-1000

Cam, Fuel Shut-Off

$

$

Currently unavailable

20

Cub Cadet 738-3050

Shaft, Pivot

$

$

Not available

21

Cub Cadet 736-0264

Washer, Flat, .344 X .62 X .063 Thk

$6.99

$

In Stock, only 2 left!

0

22

Cub Cadet 736-3079

Washer, Spring, .39 X .74 X .020 Thk

$

$

Not available

23

Cub Cadet 723-3038

Disc, Friction

$

$

Not available

24

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 711-3140

Spacer, Tube, .325 X .43 X .45 Lg

$

$

Not available

29

Cub Cadet 746-3013

Cable, Throttle
(Superseded to 946-3013)

$

$

Not available

30

Cub Cadet 746-3012

Cable, Shut-Off

$

$

Not available
