1572 (148-710-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Fuel Filters, Electric Pump & Hoses Parts Diagram

Super Garden Tractor

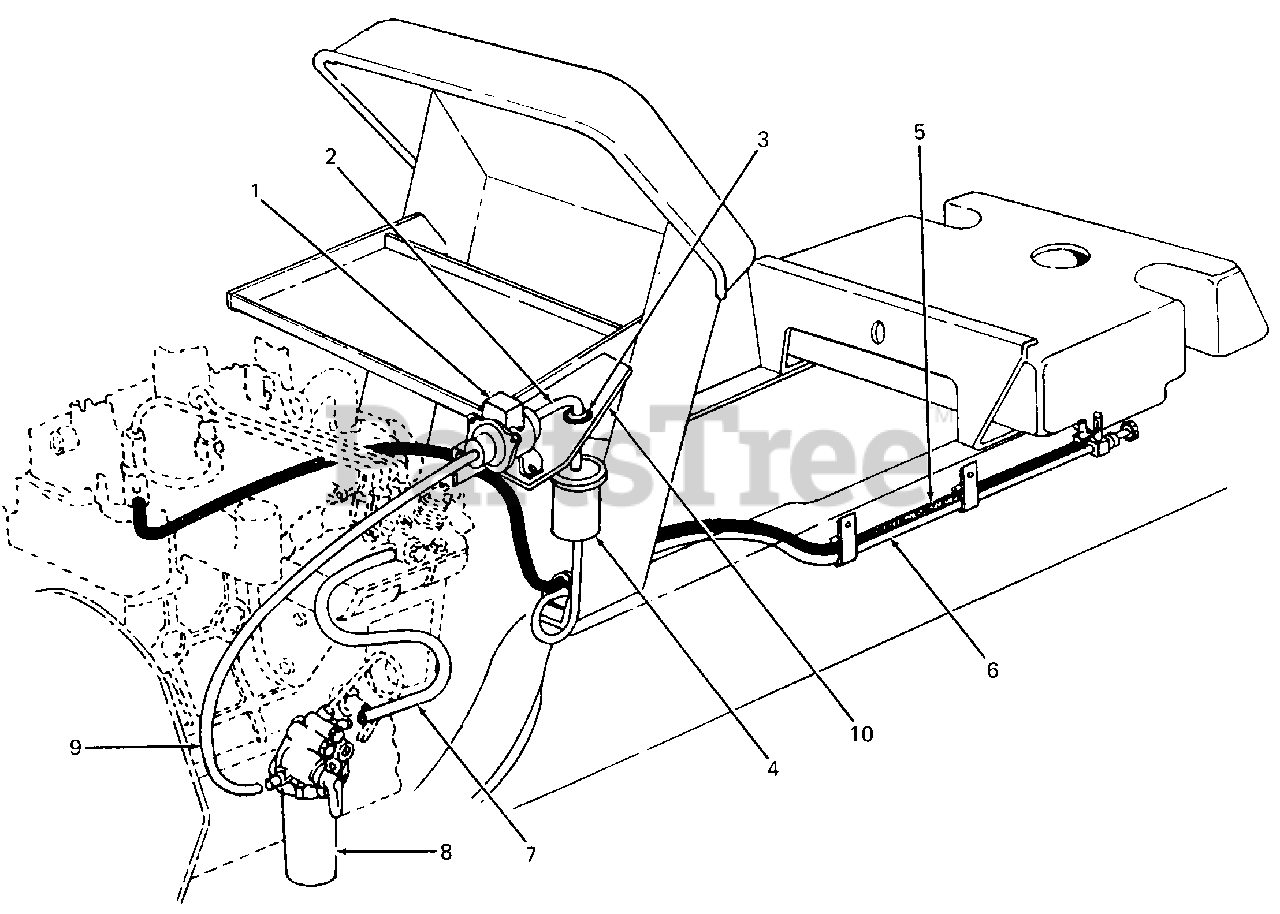

Fuel Filters, Electric Pump & Hoses Parts Diagram

  • Title

1

Cub Cadet KB-68371-51210

Pump, Electric Fuel

$498.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 X .62 Lg
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-3006

Washer, Int Ext Lock, 1/4 X .75

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet 710-0759

Screw, Hex Cap, 5/16-18 X .62 Lg

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

2

Line, Fuel Pre-Filter to Electric Pump - 4.5 " Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

Cub Cadet 726-0146

Clamp, Hose

$

$

Not available

3

Cub Cadet 723-3041

Bushing, Snap, 3/4 ID

$

$

Currently unavailable

4

Cub Cadet KB-13351-43010

Pre-Filter, Fuel
(Superseded to KB-12581-43012)

$44.99

$

Usually ships in 3-6 days

0

5

Line, Fuel Engine to Tank Return - 72.5" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

Cub Cadet 726-0146

Clamp, Hose

$

$

Not available

6

Line, Fuel Pre-Filter to Tank - 44" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

Cub Cadet 726-0146

Clamp, Hose

$

$

Not available

7

Line, Fuel Filter to Injection Pump - 8" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

Cub Cadet 726-0146

Clamp, Hose

$

$

Not available

8

Cub Cadet KB-19204-43010

Filter, Fuel
(Superseded to KB-1G313-43010)

$114.99

$

Usually ships in 3-6 days

0

9

Line, Fuel Filter to Electric Pump - 16" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

Cub Cadet 726-0146

Clamp, Hose

$

$

Not available

10

Cub Cadet 703-1080

Bracket, Fuel Pump Support

$

$

Not available

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 X .62 Lg
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
