1572 (148-710-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Fenders Parts Diagram

Super Garden Tractor

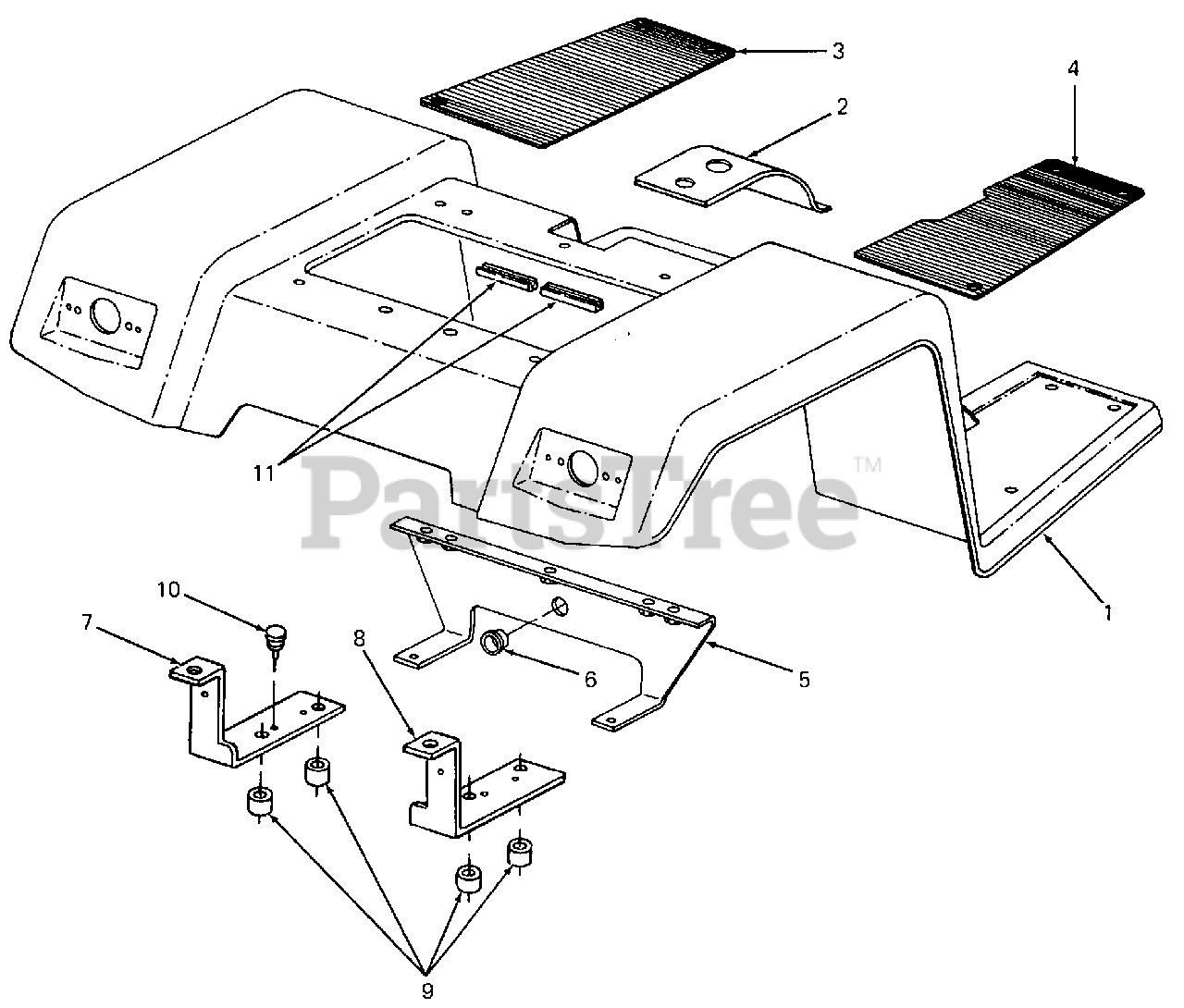

Fenders Parts Diagram

  • Title

1

Cub Cadet 703-0064

Fender

Variations

Cub Cadet 703-0064-0498

FENDER - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3017

Screw, Hex Cap, 3/8-16 X .50 Lg GR5

$

$

Not available

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-3092

Screw, Hex Flange Lock, 5/16-18 X .75 Lg GR5

$

$

Not available

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

2

Cub Cadet 703-1042

Cover, Hydro Center w/Hole

$

$

Not available

Cub Cadet 723-3041

Bushing, Snap, 3/4 ID

$

$

Currently unavailable

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 723-3006

Pad, LH - Foot

$33.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 723-3007

Pad, RH - Foot

$

$

Not available

5

Cub Cadet 703-1454

Support, Front Fender

$

$

Not available

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X.75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Lg

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 723-3042

Bushing, Snap, 7/8 ID

$4.49

$

In Stock, only 1 left!

0

7

Cub Cadet 703-1456

Support, LH - Rear Fender

$

$

Not available

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 X 1.75 Lg GR5

$5.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Lg

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 703-1457

Support, RH - Rear Fender

$

$

Currently unavailable

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 X 1.75 Lg GR5

$5.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 750-3048

Spacer, .39 X .88 X 1.00 Lg

$

$

Not available

10

Cub Cadet 735-0199

Bumper, Rubber
(Superseded to 935-0199A)

$7.99

$

In Stock, only 4 left!

0

11

Cub Cadet 703-1346

Strip, Trim, 39.38 Lg

$

$

Not available
