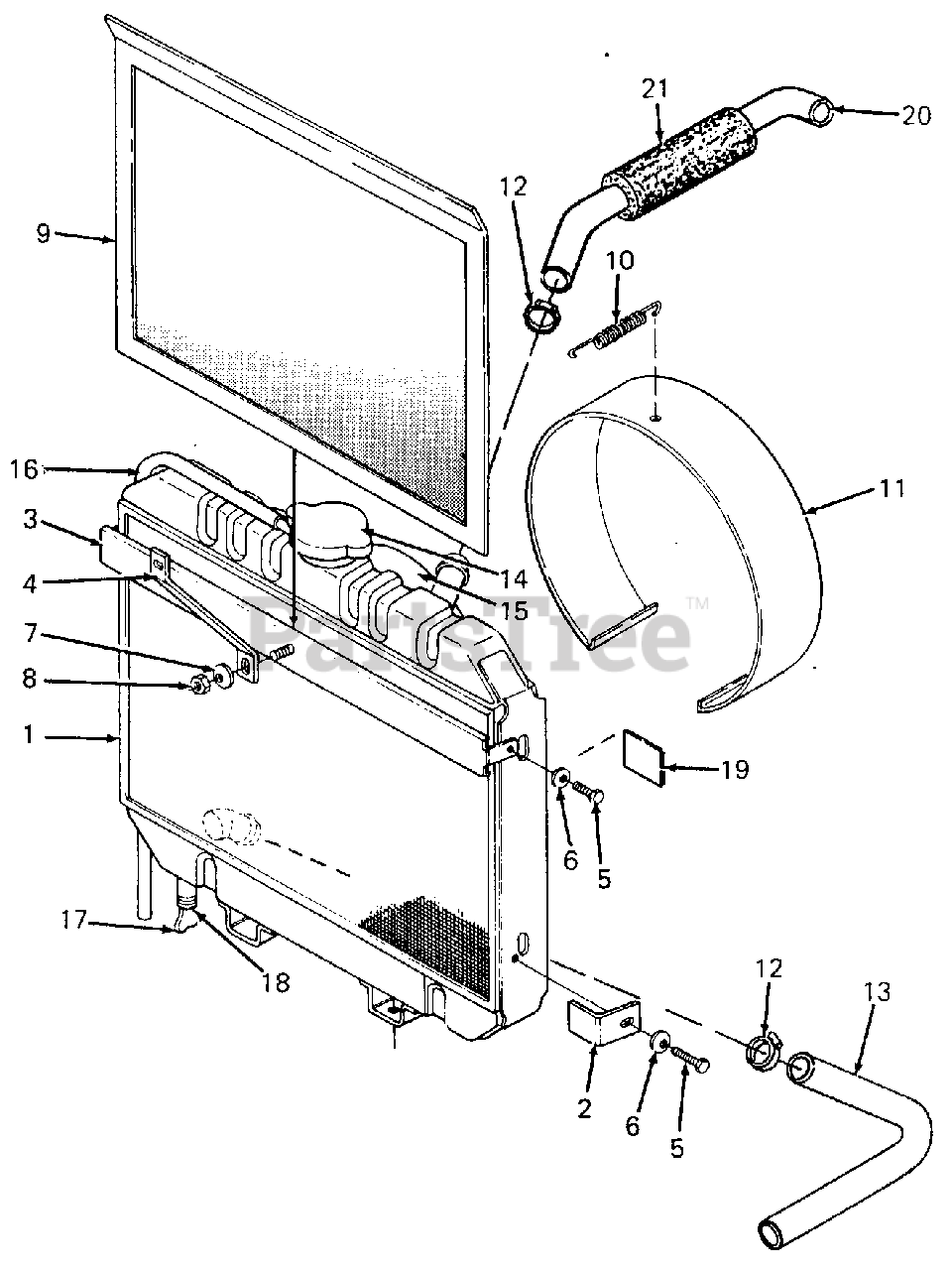

1572 (147-710-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Radiator & Hoses Parts Diagram

Super Garden Tractor

Radiator & Hoses Parts Diagram

  • Title

1

Cub Cadet KB-19488-72060

Radiator Assy

Note: (Includes Ref No. 14, 15, 16, 17 & 18)

$

$

Not available

Cub Cadet 736-0255

Washer, Bell, .515 X 1.14 X .04 Thk

$4.99

$

In Stock, only 3 left!

0

Cub Cadet 710-3136

Screw, Hex Cap, M10-1.25 X 25 mm Lg GR8

$

$

Not available

2

Cub Cadet 703-1009

Bracket, Screen Support

$

$

Currently unavailable

3

Cub Cadet 703-0982

Brace, Radiator

$

$

Currently unavailable

4

Cub Cadet 703-0967

Brace

$

$

Currently unavailable

5

Cub Cadet 710-3140

Screw, Hex Cap, M6 X 14 mm Lg GR5

$

$

Not available

6

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

9

Cub Cadet 703-1057

Screen, Radiator

$

$

Not available

10

Cub Cadet 732-0320

Spring, Extension, .38 OD X 3.25 Lg
(Superseded to 932-0320)

$10.99

$

In Stock, only 1 left!

0

11

Cub Cadet 703-1510

Extension, Radiator

$

$

Not available

12

Cub Cadet 726-0132

Clamp, Hose

$15.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 735-3019

Hose, Lower Water

$

$

Not available

14

Cub Cadet KB-15272-72020

Cap, Radiator

$

$

Not available

15

Cub Cadet KB-19488-72331

Shroud, Fan

$

$

Currently unavailable

16

Cub Cadet KB-15861-72710

Tube, Overflow

$

$

Not available

17

Cub Cadet KB-15231-73110

Cock, Drain

$

$

Not available

18

Cub Cadet KB-15231-96690

Washer

$

$

Not available

19

Cub Cadet KB-15409-94610

Label, Radiator

$

$

Not available

20

Cub Cadet 735-3020

Hose, Upper Water

$

$

Not available

21

Cub Cadet 723-3037

Cover, Foam Hose

$

$

Currently unavailable
