1572 (147-710-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Engine Mounting Parts Diagram

Super Garden Tractor

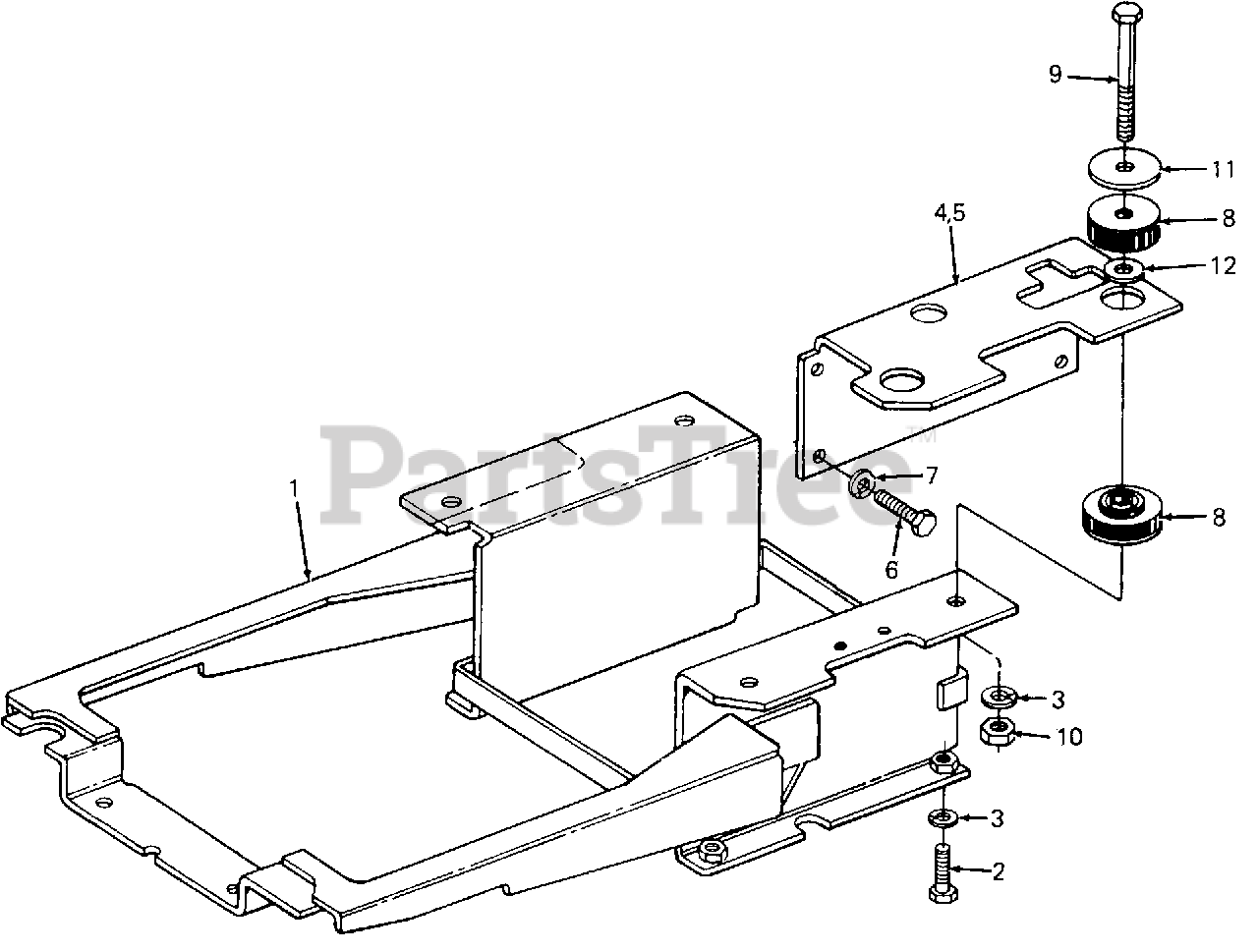

Engine Mounting Parts Diagram

  • Title

Cub Cadet KB-D600B-1

Engine Assy

$

$

Currently unavailable

1

Cub Cadet 703-0981

Mount, Engine & Radiator

$

$

Not available

2

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 703-0959

Plate, LH - Engine

Variations

Cub Cadet 703-0959-0498

ENGINE PLATE (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-0959-0637

ENGINE PLATE (LH)(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-0960

Plate, RH - Engine

Variations

Cub Cadet 703-0960-0637

ENGINE PLATE (RH)(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 710-3136

Screw, Hex Cap, M10-1.25 X 25 mm Lg GR8

$

$

Not available

7

Cub Cadet 736-3076

Washer, Lock, 10.2 mm

$

$

Not available

8

Cub Cadet 722-3006

Isomount
(Superseded to 922-3006)

$

$

Not available

9

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 X 2-1/4 Lg GR5

$6.99

$

In Stock, Qty 19

0

10

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0227

Washer, Flat, .390 X 1.50 X .134 Thk

$6.49

$

In Stock, Qty 9

0

12

Cub Cadet 736-3072

Washer, Isomount, .38 X .93 X .110 Thk HDN

$4.49

$

In Stock, Qty 20+

0
