1572 (147-710-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Camshaft Parts Diagram

Super Garden Tractor

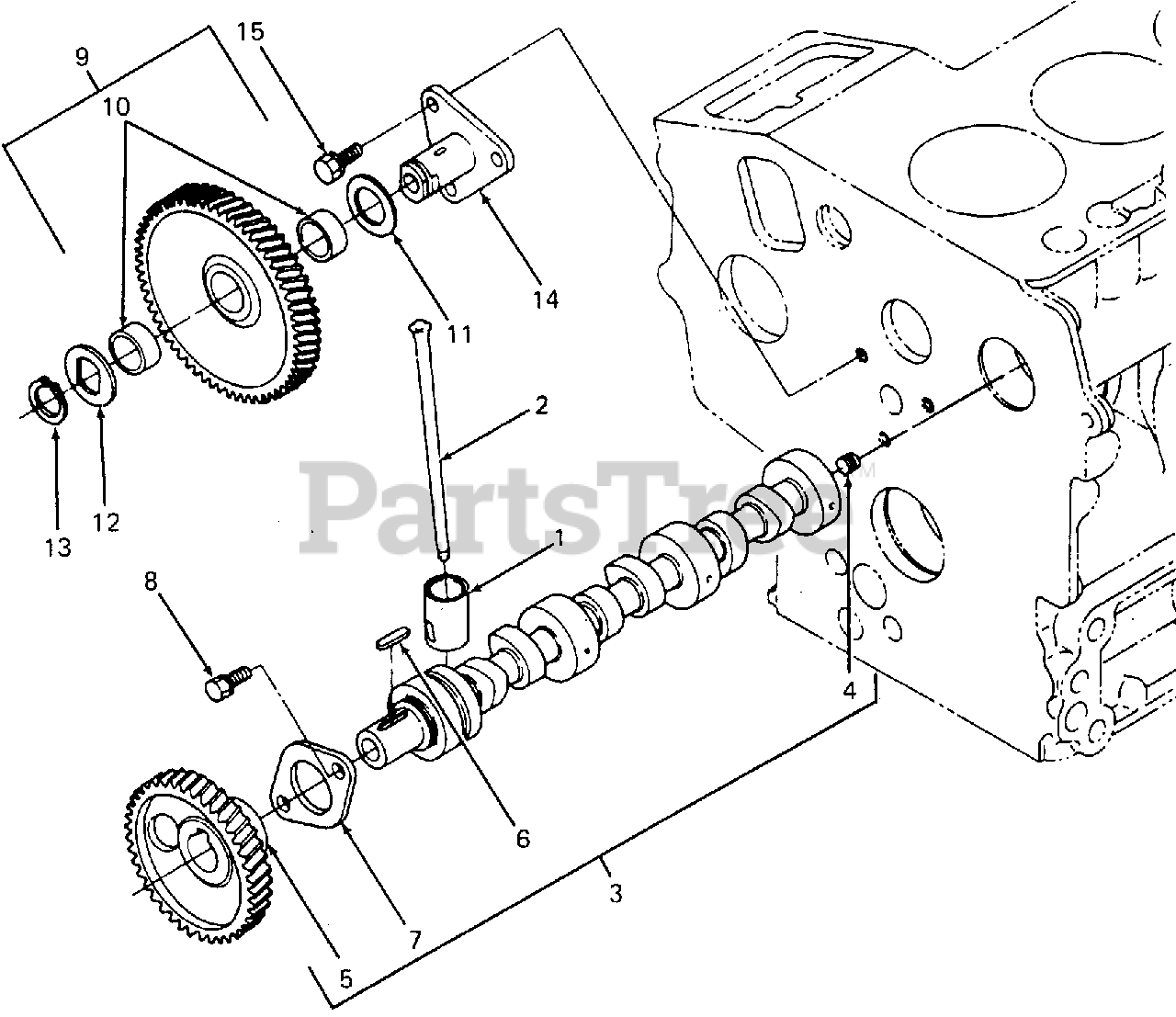

Camshaft Parts Diagram

  • Title

$

$

Not available

$

$

Not available

3

Cub Cadet KB-15861-16010

Camshaft w/Gear

Note: (Includes Ref No. 4, 5, 6 & 7)

$

$

Not available

$

$

Not available

5

Cub Cadet KB-15841-16510

Gear, Camshaft

$

$

Not available

$

$

Not available

7

Cub Cadet KB-15841-16270

Stopper, Camshaft

$

$

Not available

8

Cub Cadet KB-01023-50612

Screw, Hex Cap w/Washer

$

$

Not available

9

Cub Cadet KB-15841-24010

Gear Assy, Idler

Note: [Includes Ref No. 10 (Qty 2)]

$

$

Currently unavailable

$

$

Not available

11

Cub Cadet KB-14541-24360

Collar, Idler Gear

$

$

Currently unavailable

12

Cub Cadet KB-14541-24370

Collar, Idler Gear

$

$

Not available

13

Cub Cadet KB-15841-24320

Ring, Retaining

$

$

Currently unavailable

14

Cub Cadet KB-15841-24250

Shaft, Idler Gear

$

$

Not available

15

Cub Cadet KB-01023-50614

Screw, Hex Cap w/Washer

$

$

Currently unavailable
