1572-021-2 (146S845H147) - Lawn General Garden Tractor (1996) (Country General) Hood Style 5/Muffler Parts Diagram

Garden Tractor

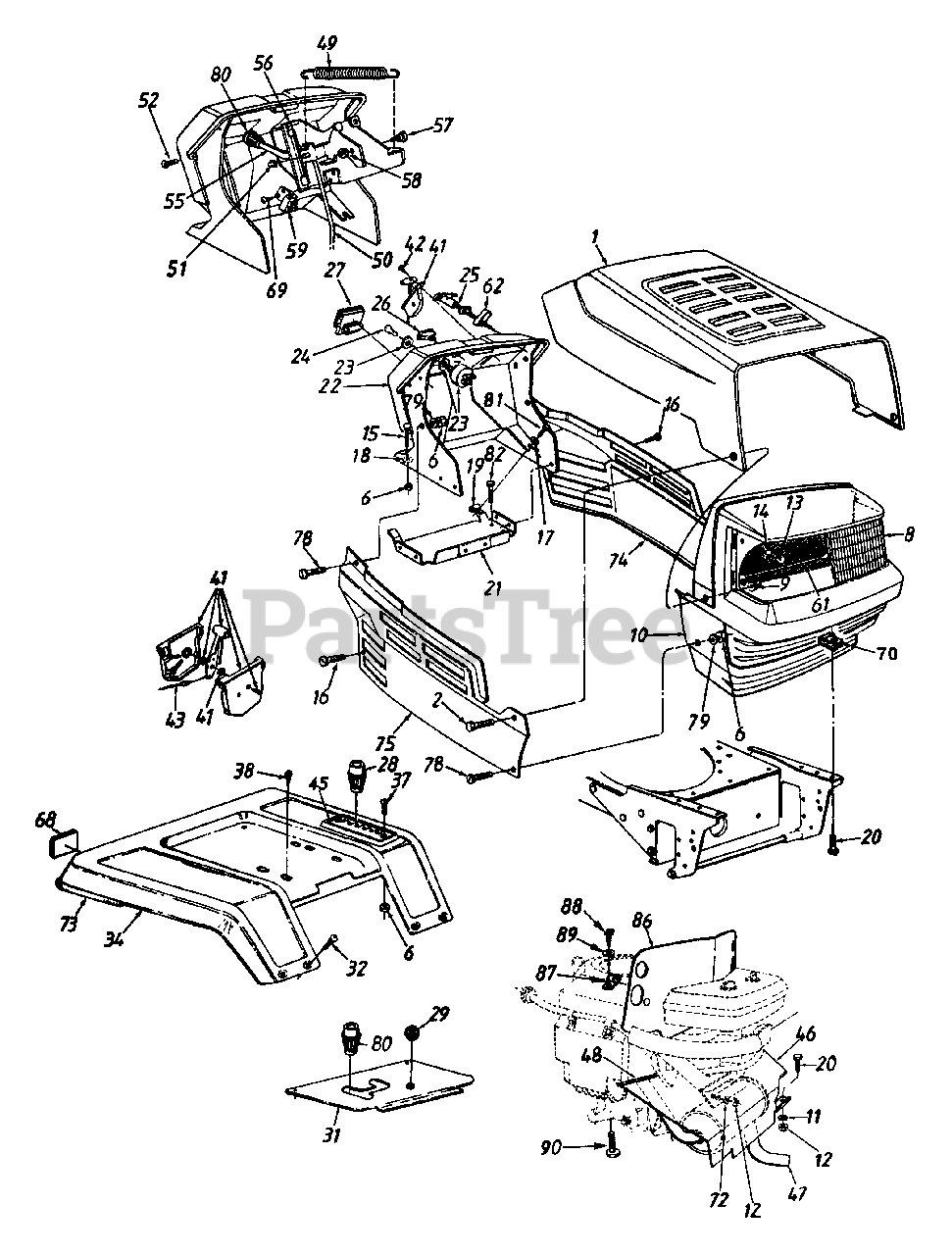

Hood Style 5/Muffler Parts Diagram

  • Title

1

MTD 783-0250

Hood

Variations

MTD 783-0250-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0250-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0250-0498

HOOD-STY O W/LOUVE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0250-0499

No Longer Available HOOD-STY O - CUB BEIGE (0499)

$

$

Not available

MTD 783-0250-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0250-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0250-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0250-0648

HOOD-S - TECH GRAY (0648)

$

$

Not available

MTD 783-0250-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

MTD 783-0250-0660

No Longer Available HOOD-STY O - TEAL (0660)

$

$

Not available

MTD 783-0250-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0250-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0250-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0250-0667

HOOD-STY O W/LOUVE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0250-0668

No Longer Available HOOD-STY O - MOSS GREEN (0668)

$

$

Not available

MTD 783-0250-0674

HOOD-STY O W/LOUVE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0250-0677

No Longer Available HOOD-O STY - GRASS GREEN (0677)

$

$

Not available

MTD 783-0250-0686

No Longer Available HOOD-STY O - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 783-0250-0687

No Longer Available USE 783-0250A-0687 HOOD-O STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0250-0688

No Longer Available HOOD-STY O - SPRING GREEN (0688)

$

$

Not available

MTD 783-0250-0691

HOOD-STY O W/LOUVE - BLACK JACK (0691)

$

$

Not available

MTD 783-0250-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0250-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0250-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

2

MTD 738-0952

Shld. Bolt .375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

6

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

8

MTD 731-1099A

Headlight Lens
(Superseded to 931-1099A)

$92.99

$

In Stock, only 1 left!

0

9

MTD 712-3027

Flange L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

10

MTD 731-1097D

Grille
(Superseded to 931-1097G)

Note: New Part

$192.99

$

Usually ships in 3-6 days

0

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

14

MTD 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

15

MTD 710-0932

Carriage Bolt 1/4-20 x 1.0" Lg.
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

16

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 783-0347

Battery Plate
(Superseded to 783-0347A-0637)

Variations

MTD 783-0347-0637

BRACKET-MT BATTERY - POWDER BLACK (0637)

$

$

Not available

MTD 783-0347-0638

BRACKET-MT BATTERY - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

22

MTD 731-1678

Dash - w/Ammeter & Light Switch Holes

Note: New Part

$

$

Not available

MTD 731-1679

Dash - w/o Ammeter & Light Switch Holes

Note: New Part

$

$

Not available

23

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

24

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

26

MTD 725-0634

Light Switch
(Superseded to 925-0634)

Note: Optional

$17.99

$

In Stock, only 4 left!

0

27

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: Optional

$31.99

$

Usually ships in 3-6 days

0

28

MTD 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

29

MTD 720-0166

Knob

$

$

Not available

31

MTD 783-0245A

Shift Cover

Note: New Part

Variations

MTD 783-0245A-0637

COVER SHFT 3-8-9-0 S - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 783-0245A-0629

No Longer Available CVR SHFT 3 - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0245A-0638

No Longer Available CVR SHFT - MTD/TROY-BILT RED (0638)

$

$

Not available

$49.99

$

Usually ships in 3-6 days

0

32

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

34

MTD 17426A

Fender

Variations

MTD 17426A-0483

FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17426A-0499

No Longer Available FENDER-RR - CUB BEIGE (0499)

$

$

Not available

MTD 17426A-0606

No Longer Available FENDER-RR - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 17426A-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17426A-0638

FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17426A-0648

FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17426A-0650

No Longer Available FENDER-RR - RED METALLIC (0650)

$

$

Not available

MTD 17426A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17426A-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

MTD 17426A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17426A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17426A-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17426A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17426A-0692

No Longer Available FENDER-RR - AGWAY BLUE (0692)

$

$

Not available

MTD 17426A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

37

MTD 710-0166

Truss Mach. Scr. #1/4-20 x 1" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

38

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

41

MTD 831-0823A

Throttle Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

42

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

43

MTD 746-0634

Throttle Control Wire 35" Lg.
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

MTD 746-0630

Throttle Control Wire 39" Lg.
(Superseded to 946-0630A)

$28.99

$

Usually ships in 3-6 days

0

45

MTD 731-1360

6-Speed Selector Plate
(Superseded to 931-1774)

Note: For model 825

$31.99

$

Usually ships in 3-6 days

0

MTD 731-1071

7-Speed Selector Plate
(Superseded to 931-1774)

Note: For model 845

$31.99

$

Usually ships in 3-6 days

0

46

MTD 16934A

Front Heat Shield

$

$

Not available

47

MTD 751-0474

Muffler

$

$

Not available

48

MTD 731-0511-12

Trim Strip 12" Lg.

$22.99

$

Usually ships in 3-6 days

0

49

MTD 732-0626

Ext. Spring 5.06" Lg.

$12.99

$

In Stock, only 1 left!

0

50

MTD 747-0750A

Deck Control Rod

$28.99

$

Usually ships in 3-6 days

0

51

MTD 726-0106

Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

52

MTD 710-1017

Torx Mach. Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

55

MTD 17500

PTO Lever

$

$

Not available

56

MTD 17496A

PTO Bracket

$

$

Not available

57

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

58

MTD 712-3009

Hex L-Nut 5/16-18 Thd

$6.99

$

In Stock, Qty 20+

0

59

MTD 725-0465A

Safety Switch (PTO)
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

61

MTD 777-9206

Grille Reflector Label
(Superseded to 777X40318)

$

$

Not available

62

MTD 17782

Retainer Clip

$

$

Not available

68

MTD 730-3000

Reflector
(Superseded to 930-3000)

Note: Optional

$17.99

$

In Stock, only 2 left!

0

69

MTD 710-1066

Hex Wash Hd. B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

70

MTD 726-0211

U-Nut 5/16-18 Thd.

$4.49

$

Usually ships in 3-6 days

0

72

MTD 736-0170

Spec. L-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

73

MTD 731-0511-81

Trim Strip 81" Lg.

$105.99

$

Usually ships in 3-6 days

0

74

MTD 783-0151

Side Panel - L.H.

Variations

MTD 783-0151-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0151-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0151-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0151-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0151-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-0151-0662

Side Panel - L.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0151-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0151-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0151-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0151-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0151-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0151-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 783-0151-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0151-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

75

MTD 783-0150A

Side Panel - R.H.

Variations

MTD 783-0150A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0150A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0150A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0150A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0150A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 783-0150A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0150A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0150A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-0150A-0660

No Longer Available - TEAL (0660)

$

$

Not available

MTD 783-0150A-0662

Side Panel - R.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0150A-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0150A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0150A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0150A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0150A-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0150A-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 783-0150A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0150A-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0150A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0150A-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

78

MTD 710-0286

Pan Hd. Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

79

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

80

MTD 720-0232

Small Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

81

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

82

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x 62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

86

MTD 783-0161

Top Heat Shield

$

$

Not available

87

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

88

MTD 710-0351

Truss Mach. Scr. #10 x 5" Lg.

$4.49

$

Usually ships in 3-6 days

0

89

MTD 736-3067

Fl-Wash. .188" I.D. x .43" O.D.

$3.49

$

Usually ships in 3-6 days

0

90

MTD 710-0502A

Hex L-Wash. TT-Tap Scr. 3/8-16 Thd.

$6.99

$

In Stock, only 2 left!

0
