15585C - MTD Reel Walk-Behind Mower (1986) Power Parts Diagram

Reel Walk-Behind Mower

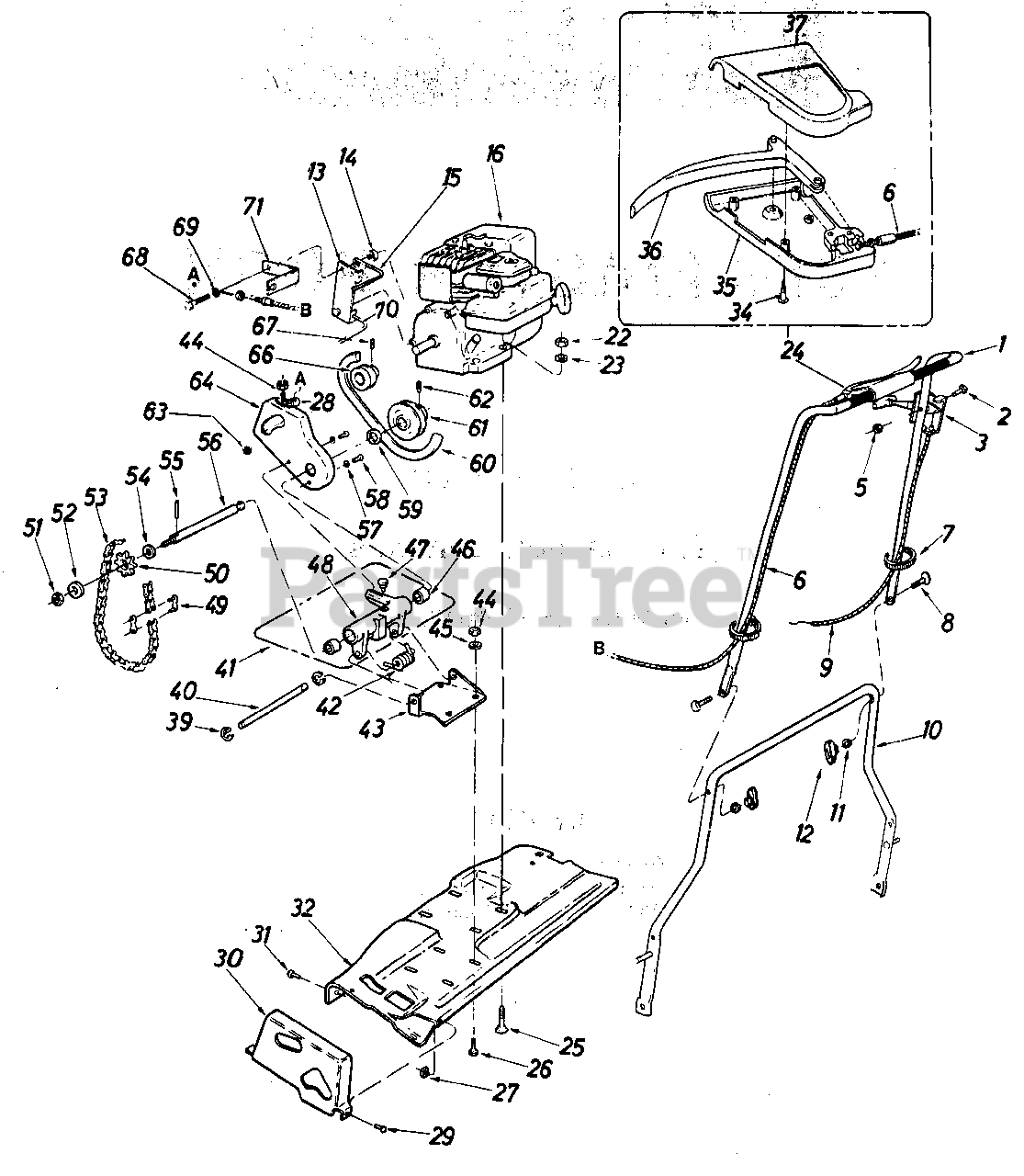

Power Parts Diagram

  • Title

1

MTD 749-0323

Upper Handle Ass'y.

$

$

Currently unavailable

2

MTD 710-0744

Rd. Hd. Scr. 1/4-20 x 1.88" Lg.

$

$

Not available

3

MTD 746-0323

Throttle Control Ass'y.

$

$

Not available

MTD 731-0433

Control Panel

Note: (Now Shown)

$

$

Currently unavailable

5

MTD 712-0300

Capped Wash. Z-Nut

$

$

Not available

6

MTD 746-0307

Clutch Control Cable

$

$

Currently unavailable

7

MTD 726-0188

Cable Tie

$

$

Not available

8

MTD 1513-103

Special Scr. 5/16-18 x 1.75" Lg .
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

9

MTD 0171-033

Throttle Cable

$

$

Not available

10

MTD 749-0321

Lower Handle Ass'y.

Note: (15585)

$

$

Not available

MTD 749-0322

Lower Handle Ass'y.

Note: (15590)

$

$

Not available

11

MTD 1025-000

L-Wash. 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 720-0195

Handle Knob

$15.99

$

Usually ships in 3-6 days

0

13

MTD 1606-048

Belt Keeper Brkt.

$

$

Currently unavailable

14

MTD 1624-069

Spacer

$

$

Currently unavailable

15

MTD 1724-007

Belt Keeper Upper

Note: (15585)

$

$

Currently unavailable

MTD 1724-008

Belt Keeper Upper

Note: (15590)

$

$

Currently unavailable

16

Engine B&S 80202-1081-01

$

$

Not available

22

MTD 0070-000

Hex Nut 5/6-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

23

MTD 1025-000

L-Wash. 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 13628

Clutch Control Ass'y.

$

$

Not available

25

MTD 1529-011

Carriage Bolt 5/16-18 x 1.375" Lg.

$

$

Currently unavailable

26

MTD 1529-015

Scr. "4-20 x .625" Lg.
(Superseded to 710-0134)

$4.49

$

In Stock, Qty 20+

0

27

MTD 1534-008

Hex L-Nut 10-32 Thd.

$

$

Not available

28

MTD 746-0260

Clevis Lanyard Fitting

$

$

Not available

29

MTD 0117-000

Ph. Hd. Scr. 10-32 x .375" Lg.

$

$

Currently unavailable

30

MTD 3639-032

497 Chain Guard

$

$

Currently unavailable

31

MTD 1513-008

Hex Sems Scr. 5/16-24 x .50 Lg.

$

$

Currently unavailable

32

MTD 5690-009

18" Deck

Note: (15585)

$

$

Currently unavailable

MTD 5690-010

21" Deck

Note: (15590)

$

$

Currently unavailable

MTD 0041-028

Hex L-Nut 5/16-24
(Superseded to 912-0237)

$

$

Not available

34

MTD 710-0535

Slotted Oval Self-Tap Scr. #10 x .87" Lg.
(Superseded to 710-0841)

$4.49

$

Usually ships in 3-6 days

0

35

MTD 731-0408

Rear Control Cover

$

$

Not available

36

MTD 731-0406

Lever Clutch Control

$

$

Currently unavailable

37

MTD 731-0407

Front Cover Control

$

$

Not available

39

MTD 1650-010

Retaining Ring

$

$

Not available

40

MTD 1547-003

1 Pin

$

$

Currently unavailable

41

MTD 3102-192

Jack Shaft Hsg. and Brg. Ass'y.

$

$

Currently unavailable

42

MTD 1642-030

Spring

$

$

Currently unavailable

43

MTD 14039

Bracket

$

$

Currently unavailable

44

MTD 0067-000

Hex Nut1/4-20 Thd.
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

45

MTD 1018-000

1/4 Split L-Wash.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

46

MTD 1652-001

Bearing

$

$

Not available

47

MTD 1691-002

Oiler

$

$

Currently unavailable

48

MTD 3601-064

IJack Shaft Hsg.

$

$

Not available

49

MTD 1113-013

Connector Link

$

$

Not available

50

MTD 1638-016

Sprocket

$

$

Not available

51

MTD 1538-016

IHex Jam Nut 5/16-24
(Superseded to 712-3067)

$6.49

$

Usually ships in 3-6 days

0

52

MTD 1036-000

Washer
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

53

MTD 1654-002

: Chain

$

$

Not available

54

MTD 736-0116

IWash. 5/8 x 15/16
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

55

MTD 1546-002

j Pin

$

$

Currently unavailable

56

MTD 1632-026

Jack Shaft

$

$

Not available

57

MTD 1540-055

Washer

$

$

Not available

58

MTD 1511-009

Ph. Hd. Scr. 10-32 x .50' Lg.

$

$

Currently unavailable

59

MTD 736-0116

Wash. 518 x 15/16
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

60

MTD 1651-020

"V" Belt

$

$

Not available

61

MTD 2120-034

Pulley Ass'y.

$

$

Not available

62

MTD 1548-011

Roll Pin

$

$

Currently unavailable

63

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

64

MTD 13641

497 Belt Guard Ass'y.

$

$

Currently unavailable

66

MTD 1626-033

Pulley

$

$

Currently unavailable

67

MTD 1508-013

Set Scr. 5/16-24 x 7/32" Lg.

$

$

Currently unavailable

68

MTD 1509-069

Ph. Hd. Scr. 1/4-20 x 1.75" Lg.
(Superseded to 710-0136)

$3.99

$

In Stock, Qty 20+

0

69

MTD 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

70

MTD 1724-009

Belt Keeper Lower

Note: (15585)

$

$

Currently unavailable

MTD 1724-010

Belt Keeper Lower

Note: (15590)

$

$

Currently unavailable

71

MTD 13853

Clutch Cable Bracket

$

$

Currently unavailable
