15585-7 - MTD Reel Walk-Behind Mower (1987) Power Parts Diagram

Reel Walk-Behind Mower

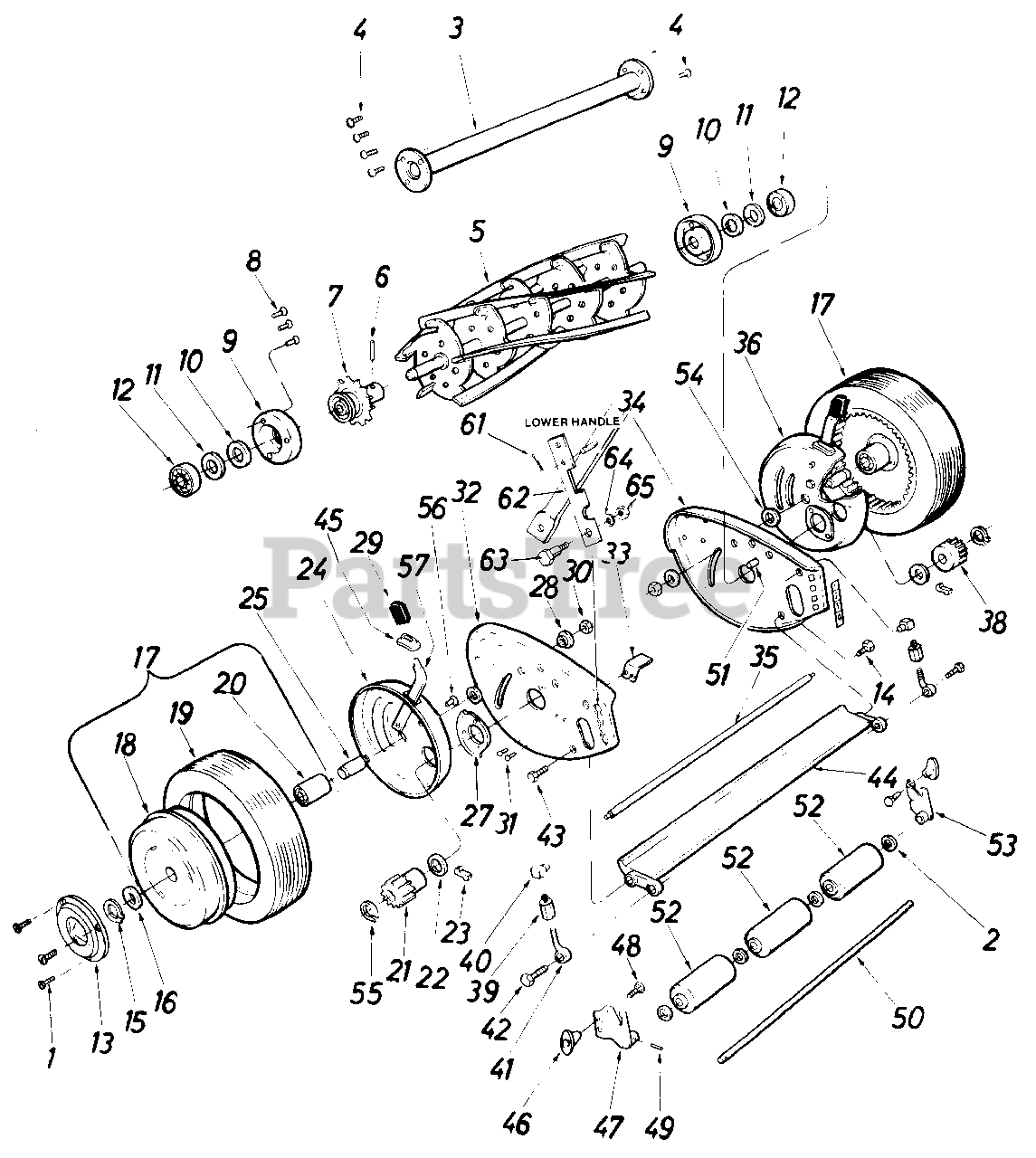

Power Parts Diagram

  • Title

1

MTD 1511-018

Ph. Hd. Scr. 10-32 x .62" Lg.

$

$

Currently unavailable

2

MTD 1540-059

Roller Washer

$

$

Not available

3

MTD 1112-018

18" Spacer Tube Ass'y.

Note: (15585)

$

$

Currently unavailable

MTD 1112-019

21" Spacer Tube Ass'y.

Note: (15590)

$

$

Currently unavailable

4

MTD 1530-006

Rivet 3/16 x 3/8"

$

$

Currently unavailable

5

MTD 2135-022

18" Reel Ass'y.

Note: (15585)

$

$

Currently unavailable

MTD 2135-021

21" Reel Ass'y.

Note: (15590)

$

$

Not available

6

MTD 1548-005

Roll Pin

$

$

Currently unavailable

7

MTD 2121-002

Sprocket Anti-Wind Cup and Hub Ass'y.

$

$

Not available

8

MTD 1530-020

Rivet 3/16 x 13/32"
(Superseded to 728-0131)

$3.49

$

Usually ships in 3-6 days

0

9

MTD 1629-028

Retainer

$

$

Currently unavailable

10

MTD 0104-000

Felt Washer

$

$

Currently unavailable

11

MTD 0106-000

Felt Retainer

$

$

Currently unavailable

12

MTD 0003-000

Bearing

$

$

Not available

13

MTD 2674-033

Hub Cap

Note: (15585)

$

$

Not available

MTD 2674-026

Hub Cap

Note: (15590)

$

$

Currently unavailable

14

MTD 1509-086

Scr. Cutter Bar L.H. Thd.

$

$

Currently unavailable

15

MTD 1650-001

Retaining Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

16

MTD 1540-118

Washer

$

$

Not available

17

MTD 1108-080

Wheel Ass'y. Comp

Note: (15585)

$

$

Not available

MTD 1108-095

Wheel Ass'y. Comp.

Note: (15590)

$

$

Not available

18

MTD 1110-027

Wheel Ass'y. w/Bearing
(Superseded to 1110-030)

Note: (15585)

$

$

Not available

MTD 1110-030

Wheel Ass'y. w/Bearing

Note: (15590)

$

$

Not available

19

MTD 2619-025

Tire

Note: (15585)

$

$

Not available

MTD 2619-034

Tire

Note: (15590)

$

$

Not available

20

MTD 1652-052

Bearing

$

$

Not available

21

MTD 0425-000

Pinion Gear R.H.

$

$

Not available

22

MTD 0109-000

Felt Washer

$

$

Currently unavailable

23

MTD 0323-000

Pawl

$

$

Not available

24

MTD 2118-081

Gear Housing L.H.

$

$

Not available

25

MTD 1631-051

Axle

$

$

Not available

27

MTD 1629-074

Retainer

$

$

Not available

28

MTD 1657-019

Bushing

$

$

Currently unavailable

29

MTD 1643-060

Wheel Adj. Knob

$

$

Not available

30

MTD 0041-028

Hex Lock Nut
(Superseded to 912-0237)

$

$

Not available

31

MTD 1117-000

Hex Sems Scr. 10-32 x .375" Lg.

$

$

Currently unavailable

32

MTD 3111-133

End Plate w/Trunnions

Note: (L.H.)

$

$

Currently unavailable

33

MTD 1723-001

Scraper

$

$

Currently unavailable

34

MTD 3111-132

End Plate w/Trunnions

Note: (R.H.)

$

$

Currently unavailable

35

MTD 2624-113

End Plate Spacer

Note: (15585)

$

$

Currently unavailable

MTD 2624-112

End Plate Spacer

Note: (15590)

$

$

Currently unavailable

36

MTD 2118-082

Gear Housing

Note: (R.H.)

$

$

Currently unavailable

38

MTD 0428-000

Pinion Gear

Note: (L.H.)

$

$

Not available

39

MTD 1539-091

Turnbuckle Nut

$

$

Not available

40

MTD 1645-054

Trunnion

$

$

Not available

41

MTD 1513-040

Bolt

$

$

Not available

42

MTD 0453-000

Screw

$

$

Not available

43

MTD 0455-000

Scr. Cutter Bar R.H. Thd.

$

$

Not available

44

MTD 2134-011

18" Cutter Bar Ass'y.

Note: (15585)

$

$

Currently unavailable

MTD 3134-023

21" Cutter Bar Ass'y.

Note: (15590)

$

$

Currently unavailable

45

MTD 1622-050

Dust Cover

$

$

Not available

46

MTD 1643-023

Roller Adj. Knob

$

$

Not available

47

MTD 2132-012

Roller Brkt. Ass'y. L.H.

Note: (15585)

$

$

Currently unavailable

MTD 2132-044

Roller Brkt. Ass'y. R.H.

Note: (15590)

$

$

Not available

48

MTD 1529-025

Hex Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

49

MTD 1548-007

Roll Pin

$

$

Currently unavailable

50

MTD 1632-057

Roller Shaft

Note: (15585)

$

$

Currently unavailable

MTD 1632-058

Rol ler Shaft

Note: (15590)

$

$

Currently unavailable

51

MTD 0010-000

Trunnion

$

$

Not available

52

MTD 1658-006

Roller

Note: (15585)

$

$

Currently unavailable

MTD 2658-013

Roller

Note: (15590)

$

$

Not available

53

MTD 2132-011

Rol ler Brkt. Ass'y. R.H.

Note: (15585)

$

$

Currently unavailable

MTD 2132-045

Roller Brkt. Ass'y. R.H.

Note: (15590)

$

$

Not available

54

MTD 1540-043

Washer
(Superseded to 736-0195)

Note: (Special)

$

$

Not available

55

MTD 1650-021

Retaining Ring
(Superseded to AF-1650-21)

$6.49

$

Usually ships in 3-6 days

0

56

MTD 1509-038

Hex Scr. #10-32 x .375" Lg.

$

$

Currently unavailable

57

MTD 1155-047

Spring and Trunnion Ass'y.

Note: (Not Shown)

$

$

Not available

MTD 2624-112

End Plate Spacer

Note: (Not Shown)

$

$

Currently unavailable

61

MTD 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

62

MTD 13852

Handle Brace

$

$

Currently unavailable

63

MTD 738-0140

Shld. Bolt 5/16-18 Thd.

$5.99

$

In Stock, Qty 15

0

64

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

65

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
