15530 SB XLS - Husqvarna 30" Snow Blower (2009-09) DRIVE 3 Parts Diagram

30" Snow Blower

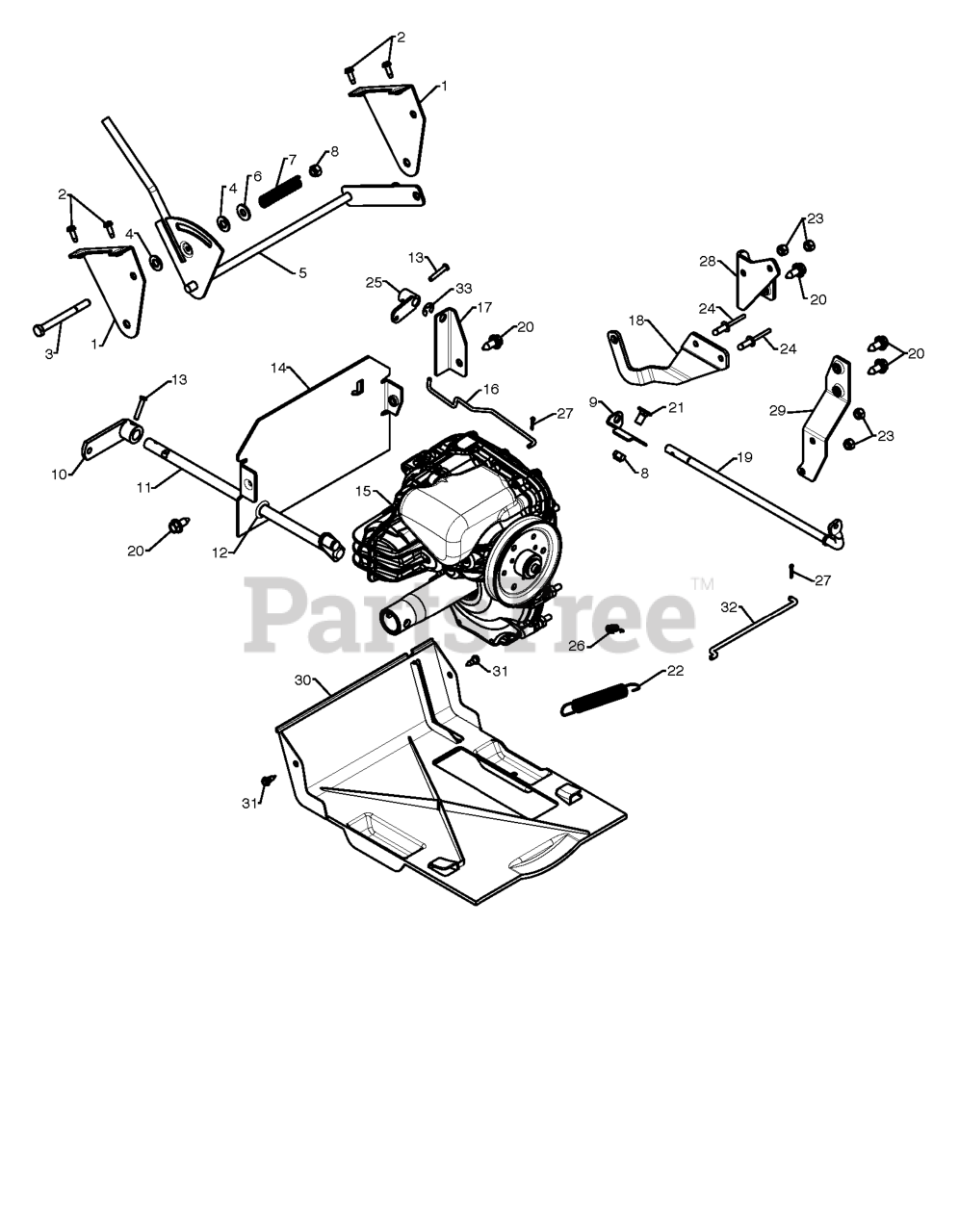

DRIVE 3 Parts Diagram

  • Title
8

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532429805

BRACKET.HYD.CLUTCH.REAR

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532193255

ANTI-ROTATE BRKT
(Superseded to 532436754)

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532192115

PLATE.REAR.HYDRO.SNOW

$12.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532193256

ROD, BYPASS VALVE

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 2 left!

0

19

Husqvarna 532198251

SHAFT.HYD.CLUTCH

$

$

Not available

4

Husqvarna 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 10

0

18

Husqvarna 532187787

ARM.CONTROL.HYDRO.SNOW

$14.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532403732

PAN.BOTTOM.PLASTIC
(Superseded to 532410877)

$31.99

$

In Stock, only 2 left!

0

23

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

32

Husqvarna 532198250

RP ROD.HYD.CLUTCH
(Superseded to 532446293)

$10.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532192002

BRACKET, SHIFT
(Superseded to 532443344)

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532178828

SPRING, BRAKE

$6.49

$

In Stock, Qty 6

0

31

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532427542

CONTROL.SHAFT.ASM
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

7

Husqvarna 532192195

SRPING.FRICTION.HYDRO

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 532187776

TRANSMISSION.HYDRO.SNOW

$1092.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

25

Husqvarna 532198249

ARM.HYD.CLUTCH

$7.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 13

0

2

Husqvarna 817501010

SCREW #10-24 X 5/8

$

$

Not available

13

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532428288

E-RING.RETAINER.REINFORCED.375

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 874760552

SCREW 5/16-18 X 3.25

$

$

Not available

9

Husqvarna 532429803

BRACKET.HYD.CLUTCH.

$

$

Not available

5

Husqvarna 532192001

LEVER ASSEMBLY, SPEED CONTROL

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532192873

SPRING, TRACTION IDLER

$4.99

$

In Stock, only 4 left!

0

10

Husqvarna 532405484

ARM.CONTROL.AUGER

$9.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532188906

WASHER.FLAT.1/2

$7.99

$

In Stock, only 2 left!

0

29

Husqvarna 532414771

STRAP.TORQUE.HYDRO

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532191995

RIVET.POP.1/4X.475

$2.99

$

Usually ships in 3-10 days

0
