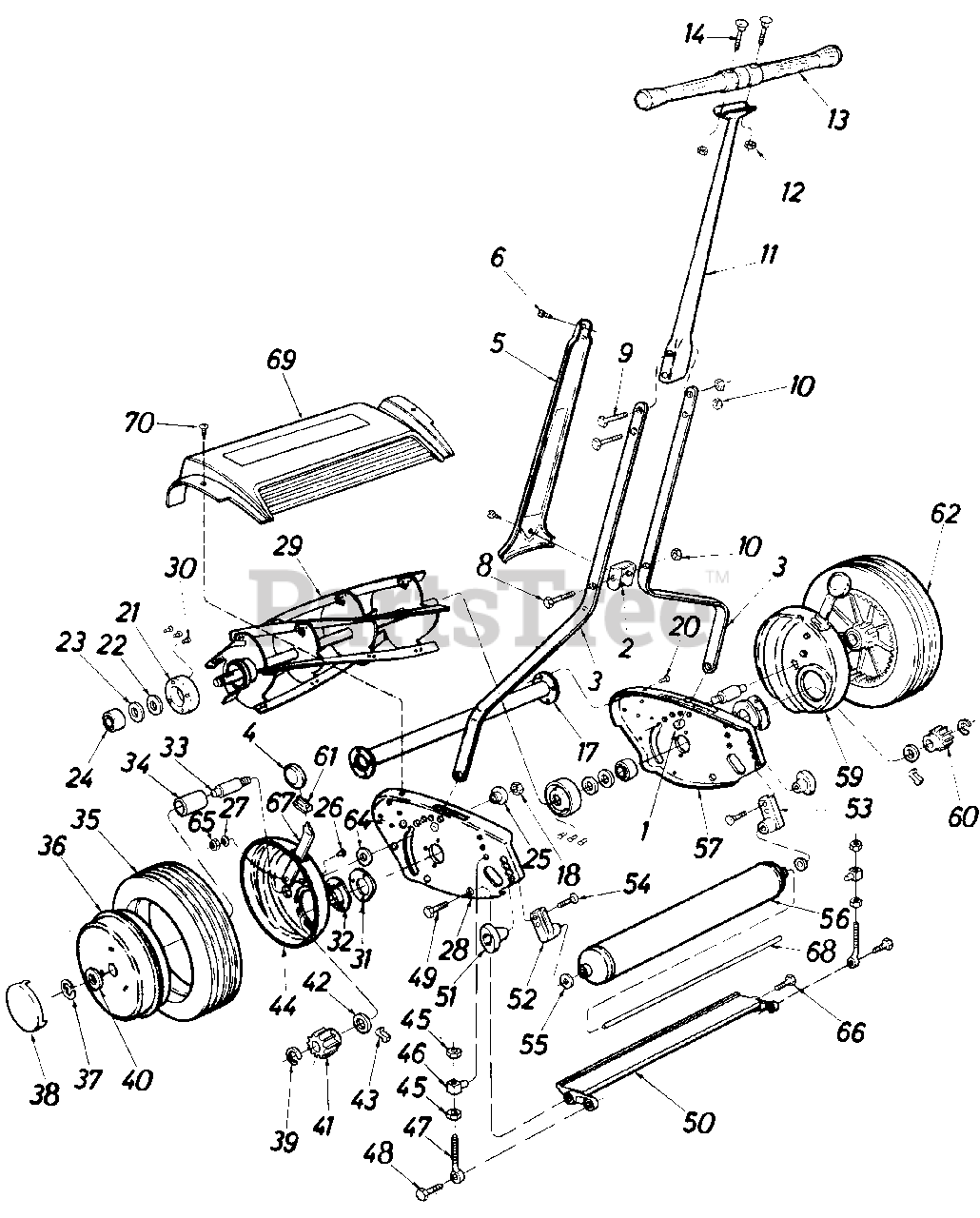

15510-8 - MTD Reel Walk-Behind Mower (1988) Parts Parts Diagram

Reel Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 0010-000

Trunnion

$

$

Not available

2

MTD 2624-018

Spacer

$

$

Not available

3

MTD 3603-055

Handle Brace 16"

Note: (15510)

$

$

Currently unavailable

MTD 3603-043

Handle Brace 18"

Note: (15515)

$

$

Not available

4

MTD 2643-060

Knob Wheel Adjust.

$

$

Not available

5

MTD 0500-299

Handle Panel

$

$

Not available

6

MTD 1523-003

Ph. Hd. Scr. #10 x .38 Lg.*

$

$

Currently unavailable

8

MTD 710-0378

Hex Scr. 5/16-18 x 2.50" Lg.*

$4.99

$

In Stock, only 4 left!

0

9

MTD 1509-013

Hex Scr. 5/16-18 x 2.25" Lg. *
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

10

MTD 0070-000

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

MTD 2117-015

Handle Shaft

$

$

Not available

12

MTD 0067-000

Hex Nut 1/4-20 Thd.*
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

13

MTD 1664-007

Cross Handle

$

$

Currently unavailable

14

MTD 0165-000

Carriage Bolt 1/4-20 x 1.75" Lg.*

$

$

Currently unavailable

17

MTD 1112-014

Spacer Tube Ass'y.

Note: (15515)

$

$

Currently unavailable

MTD 1112-028

Spacer Tube Ass'y.

Note: (15510)

$

$

Currently unavailable

18

MTD 0041-028

Hex L-Nut 5/16-24 Thd.*
(Superseded to 912-0237)

$

$

Not available

20

MTD 1530-006

Rivet 3/16 Dia. x 3/8" Lg.

$

$

Currently unavailable

21

MTD 1629-028

Retainer

$

$

Currently unavailable

22

MTD 0104-000

Felt Washer

$

$

Currently unavailable

23

MTD 0106-000

Felt Retainer

$

$

Currently unavailable

24

MTD 0003-000

Bearing

$

$

Not available

25

MTD 1657-019

Bushing

$

$

Currently unavailable

26

MTD 1509-038

Hex Scr. #10-32 x 3/8" Lg.

$

$

Currently unavailable

27

MTD 1540-055

Washer

$

$

Not available

28

MTD 3111-131

End Plate Ass'y. L.H.

$

$

Currently unavailable

29

MTD 2135-046

18" Reel Ass'y.

Note: (15515)

$

$

Currently unavailable

MTD 2135-025

16" Reel Ass'y.

Note: (15510)

$

$

Currently unavailable

30

MTD 1530-020

Rivet 3/16 Dia. x 13/32" Lg.
(Superseded to 728-0131)

$3.49

$

Usually ships in 3-6 days

0

31

MTD 1629-074

Retainer

$

$

Not available

32

MTD 1629-041

Pinion Housing

$

$

Currently unavailable

33

MTD 1631-051

Axle

$

$

Not available

34

MTD 1652-052

Bearing

$

$

Not available

35

MTD 2619-025

Tire

$

$

Not available

36

MTD 1110-027

Wheel Ass'y.
(Superseded to 1110-030)

$

$

Not available

37

MTD 1650-001

Retaining Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

38

MTD 2674-033

Hub Cap

$

$

Not available

39

MTD 1650-021

Retaining Ring
(Superseded to AF-1650-21)

$6.49

$

Usually ships in 3-6 days

0

40

MTD 0141-000

Fl-Wash. .38" I.D. x 1.25" O.D.

$

$

Not available

41

MTD 0428-000

Pinion Gear L.H.

$

$

Not available

42

MTD 0109-000

Felt Washer

$

$

Currently unavailable

43

MTD 0323-000

Pawl

$

$

Not available

44

MTD 2118-081

Gear Housing Ass'y. L.H.

$

$

Not available

45

MTD 0052-000

Hex Nut 3/8-24 Thd.*
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

46

MTD 0011-000

Trunnion

$

$

Not available

47

MTD 0451-000

Screw Cutter Bar Adj.

$

$

Not available

48

MTD 0453-000

Screw Rear

$

$

Not available

49

MTD 0455-000

Screw Pivot

Note: (R.H. Thd.)

$

$

Not available

50

MTD 2134-014

Cutter Bar

Note: (15515)

$

$

Currently unavailable

MTD 2134-015

Cutter Bar

Note: (15510)

$

$

Currently unavailable

51

MTD 1643-023

Roller Adj. Knob

$

$

Not available

52

MTD 1609-707

Roller Brkt. L.H.

$

$

Not available

53

MTD 1609-708

Roller Brkt. R.H.

$

$

Not available

54

MTD 1529-045

Roller Adj. Bolt

$

$

Not available

55

MTD 0757-000

Fl-Wash. .312" I.D. x .75" 0.D.*

$

$

Not available

56

MTD 2658-024

18" Roller

Note: (15515)

$

$

Not available

MTD 2658-023

16" Roller

Note: (15510)

$

$

Not available

57

MTD 3111-130

End Plate Ass'y. R.H.

$

$

Currently unavailable

59

MTD 2118-082

Gear Housing Ass'y. R.H.

$

$

Currently unavailable

60

MTD 0425-000

Pinion Gear R.H.

$

$

Not available

61

MTD 1622-050

Dust Cover

$

$

Not available

62

MTD 1108-080

Wheel Ass'y. Comp. 9 x 1.75

$

$

Not available

64

MTD 1540-043

Washer
(Superseded to 736-0195)

$

$

Not available

65

MTD 1534-008

Hex Nut #10-32 Thd.

$

$

Not available

66

MTD 1509-086

Screw Cutter Bar (L.H. Thd.)

$

$

Currently unavailable

67

MTD 1155-047

Spring and Trunnion Ass'y.

$

$

Not available

68

MTD 1632-144

Roller Shaft

Note: (15515)

$

$

Currently unavailable

MTD 1632-143

Roller Shaft

Note: (15510)

$

$

Not available

69

MTD 731-0569

Plastic Cover

Note: (15510)

$

$

Currently unavailable

MTD 731-0570

Plastic Cover

Note: (15515)

$

$

Currently unavailable

70

MTD 710-0351

Self-Tapping Scr. #10 x 1/2" Lg.

$4.49

$

Usually ships in 3-6 days

0

MTD 0138-091

18" Chassis Ass'y. Comp.

Note: (15515)

$

$

Currently unavailable

MTD 1138-097

16" Chassis Ass'y. Comp.

Note: (15510)

$

$

Currently unavailable

MTD 19009

Grass Catcher

Note: (Optional)

$

$

Currently unavailable
