155 VP (41AE55VC034) - Ryobi String Trimmer, Electric Trimmer Attachment Parts Diagram

String Trimmer, Electric

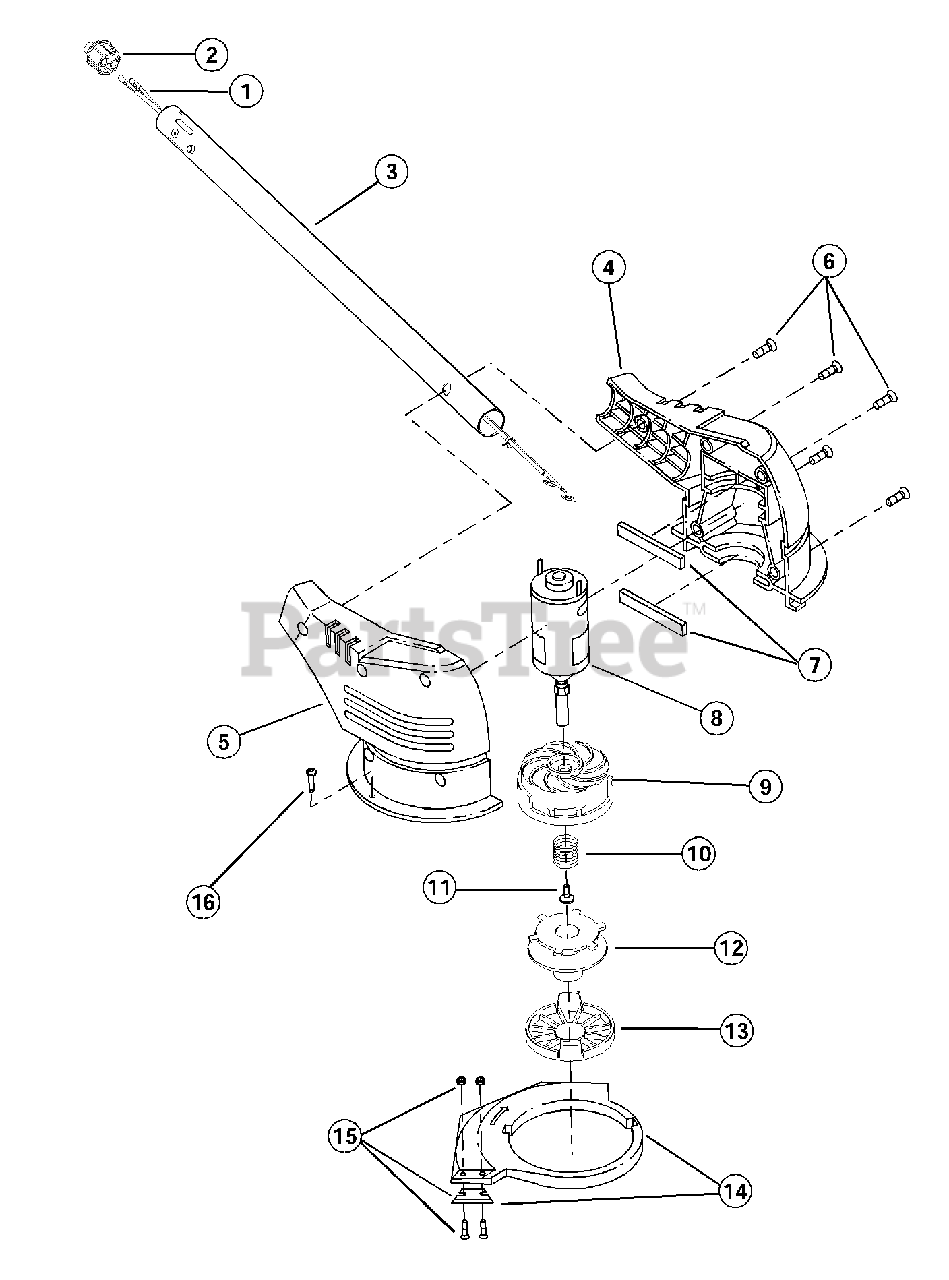

Trimmer Attachment Parts Diagram

  • Title

1

MTD 791-182710

Wiring Harness

Note: (includes 2)

$

$

Not available

2

MTD 791-182711

Plug Connector

$

$

Not available

3

MTD 791-182712

Lower Motor Wire Tube

$

$

Not available

4

MTD 791-182713

Left Motor Housing
(Superseded to 753-04356)

$

$

Not available

5

MTD 791-182714

Right Motor Housing
(Superseded to 753-04357)

$

$

Not available

6

MTD 791-181482

Motor Housing Screw

$4.49

$

Usually ships in 3-6 days

0

7

MTD 791-180369

Spacer

$

$

Not available

8

MTD 791-182715

Motor with Shaft

$79.99

$

Usually ships in 3-6 days

0

9

MTD 791-180372

Outer Spool and Eyelet/Motor Fan

$

$

Not available

10

MTD 791-180374

Spring

$10.99

$

In Stock, only 1 left!

0

11

MTD 753-04010

Screw

$

$

Not available

12

MTD 791-180292

Inner Reel with .080" Line
(Superseded to 791-180292B)

$19.99

$

Usually ships in 3-6 days

0

13

MTD 791-180376

Reel Cover

$

$

Not available

14

MTD 791-180293

Guard and Blade Assembly

$

$

Not available

15

MTD 791-180377

Blade Assembly

$

$

Not available

16

MTD 791-182469

Guard Screw
(Superseded to 753-1202)

$3.99

$

Usually ships in 3-6 days

0

MTD 791-610375

Replacement Line (.080 Diameter)

Note: Optional Accessory

$

$

Not available

MTD 791-180327

Bump Head Assembly

Note: (includes 9-13); Optional Accessory

$

$

Not available
