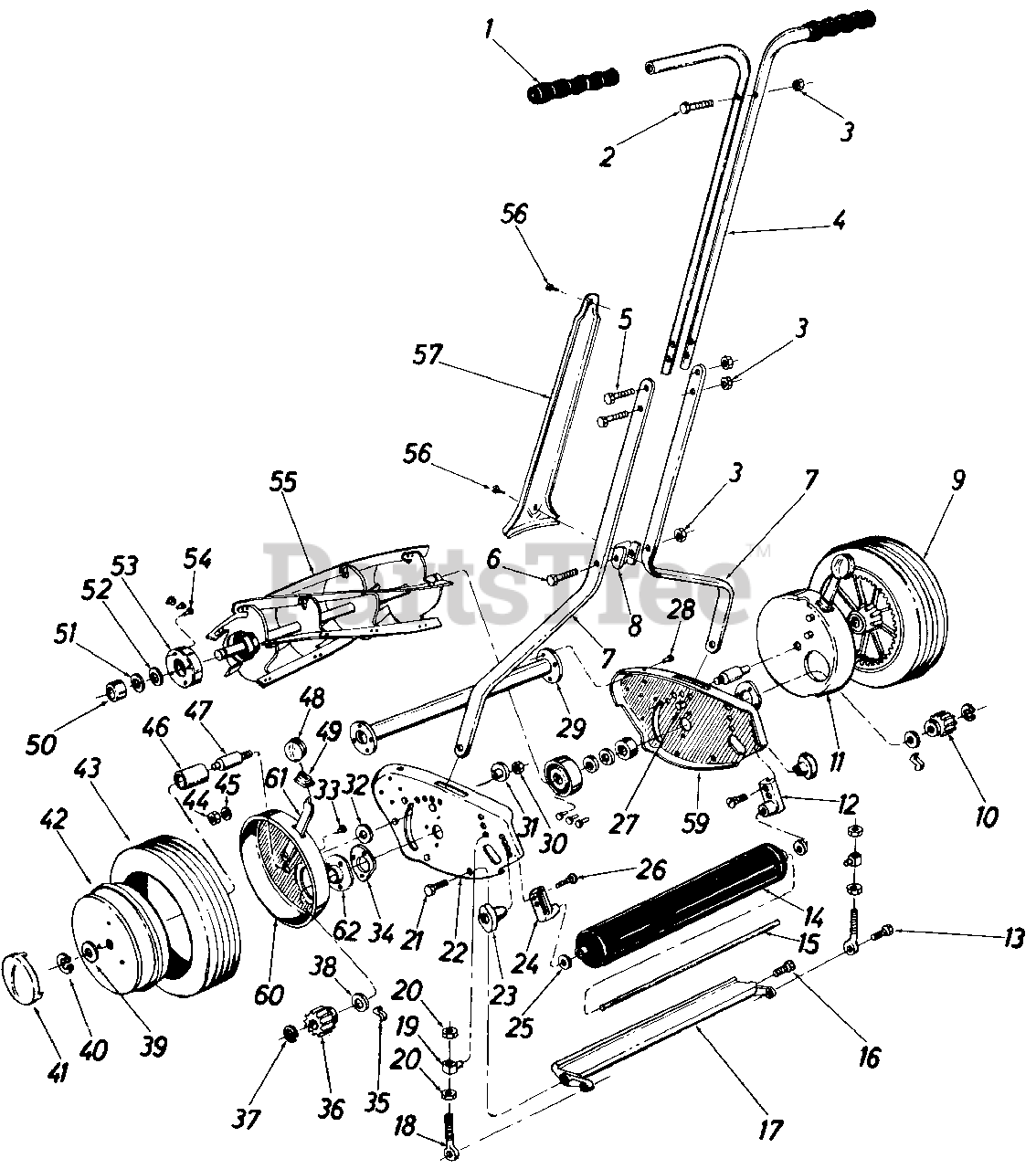

155-510-000 - MTD Reel Walk-Behind Mower (1985) Parts Parts Diagram

Reel Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 07071

G ri p

$12.99

$

Usually ships in 3-6 days

0

2

MTD 710-0380

Hex Scr. 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

3

MTD 0070-000

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

4

MTD 749-0301

Upper Handle

Variations

MTD 749-0301-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 1509-013

Hex Scr. 5/16-18 x 2.25" Lg.
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

6

MTD 710-0378

Hex Bolt 5/16-18 x 2.50" Lg.

$4.99

$

In Stock, only 4 left!

0

7

MTD 3603-055-312

Handle Brace

Note: (510)

$

$

Currently unavailable

MTD 3603-043-312

Handle Brace

Note: (515)

$

$

Currently unavailable

8

MTD 2624-018

Spacer

$

$

Not available

9

MTD 1108-080

Wheel Ass'y.-Comp.

$

$

Not available

10

MTD 0425-000

Pinion Gear-R.H.

$

$

Not available

11

MTD 2118-082

Gear Housing Ass'y.-R.H.

$

$

Currently unavailable

12

MTD 1609-708

Roller Brkt.-R.H.

$

$

Not available

13

MTD 0453-000

Screw-Rear

$

$

Not available

14

MTD 2658-023

16" Roller

Note: (510)

$

$

Not available

MTD 2658-024

18 " Rol ler

Note: (515)

$

$

Not available

15

MTD 1632-143

Roller Shaft

Note: (510

$

$

Not available

MTD 1632-144

Roller Shaft

Note: (515)

$

$

Currently unavailable

16

MTD 1509-086

Screw-Cutter Bar- (L.H. Thd.)

$

$

Currently unavailable

17

MTD 2134-015

Cutter Bar

Note: (510)

$

$

Currently unavailable

MTD 2134-014

Cutter Bar

Note: (515)

$

$

Currently unavailable

18

MTD 0451-000

Screw-Cutter Bar Adj.

$

$

Not available

19

MTD 0011-000

Trunnion

$

$

Not available

20

MTD 0052-000

Hex Nut 3/8-24 Thd.
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

21

MTD 0455-000

Screw-Pivot- (R.H. Thd.)

$

$

Not available

22

MTD 3111-131

End Plate Ass'y.-L.H.

$

$

Currently unavailable

23

MTD 1643-023

Roller Adj. Knob

$

$

Not available

24

MTD 1609-707

Roller Brkt.-L.H.

$

$

Not available

25

MTD 0757-000

Fl-Wash. .312" I.D. x .75"O.D. *

$

$

Not available

26

MTD 1529-045

Roller Adj. Bolt

$

$

Not available

27

MTD 0010-000

Trunnion

$

$

Not available

28

MTD 1530-006

Rivet 3/16 Dia. x 3/8" Lg.

$

$

Currently unavailable

29

MTD 1112-028

Spacer Tube Ass'y.

Note: (510)

$

$

Currently unavailable

MTD 1112-029

Spacer Tube Ass'y.

Note: (515)

$

$

Currently unavailable

30

MTD 0041-028

Hex L-Nut 5/16-24 Thd.
(Superseded to 912-0237)

$

$

Not available

31

MTD 1657-019

Bushing

$

$

Currently unavailable

32

MTD 1540-043

Washer
(Superseded to 736-0195)

$

$

Not available

33

MTD 1509-038

Hex Scr. #10-32 x 3/8" Lg.

$

$

Currently unavailable

34

MTD 1629-074

Retainer

$

$

Not available

35

MTD 0323-000

Pawl

$

$

Not available

36

MTD 0428-000

Pinion Gear-L.H.

$

$

Not available

37

MTD 716-0104

Retaining Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

38

MTD 0109-000

Felt Washer

$

$

Currently unavailable

39

MTD 0141-000

Fl-Wash. .38" I.D. x 1.25"O.D.

$

$

Not available

40

MTD 1650-001

Retaining Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

41

MTD 2674-033

Hub Cap

$

$

Not available

42

MTD 1110-027

Wheel Ass'y.
(Superseded to 1110-030)

$

$

Not available

43

MTD 2619-025

Tire

$

$

Not available

44

MTD 1534-008

Hex Nut #10-32 Thd.

$

$

Not available

45

MTD 1540-055

Washer

$

$

Not available

46

MTD 1652-052

Bearing

$

$

Not available

47

MTD 1631-051

Axle

$

$

Not available

48

MTD 1643-060

Knob-Wheel Adj.

$

$

Not available

49

MTD 1622-050

Dust Cover

$

$

Not available

50

MTD 0003-000

Bearing

$

$

Not available

51

MTD 0106-000

Felt Washer

$

$

Currently unavailable

52

MTD 0104-000

Felt Washer

$

$

Currently unavailable

53

MTD 1629-028

Retainer

$

$

Currently unavailable

54

MTD 1530-020

Rivet 3/16 Dia. x 13/32" Lg.
(Superseded to 728-0131)

$3.49

$

Usually ships in 3-6 days

0

55

MTD 2135-025

16" Reel Ass'y.

Note: (510)

$

$

Currently unavailable

MTD 2135-046

18" Reel Ass'y.

Note: (515)

$

$

Currently unavailable

56

MTD 1523-003

Ph. Hd. Scr. #10 x .38 Lg.

$

$

Currently unavailable

57

MTD 0500-299-312

Handle Panel

$

$

Currently unavailable

59

MTD 3111-130

End Plate Ass'y.-R.H.

$

$

Currently unavailable

60

MTD 2118-081

Gear Housing Ass'y.-L.H.

$

$

Not available

61

MTD 1155-047

Spring and Trunnion Ass'y.

$

$

Not available

62

MTD 1629-041

Pinion Housing

$

$

Currently unavailable

MTD 1138-097-497

16" Chassis Ass'y. Comp.

Note: (510)

$

$

Currently unavailable

MTD 0138-091-497

18" Chassis Ass'y. Comp.

Note: (515)

$

$

Currently unavailable
