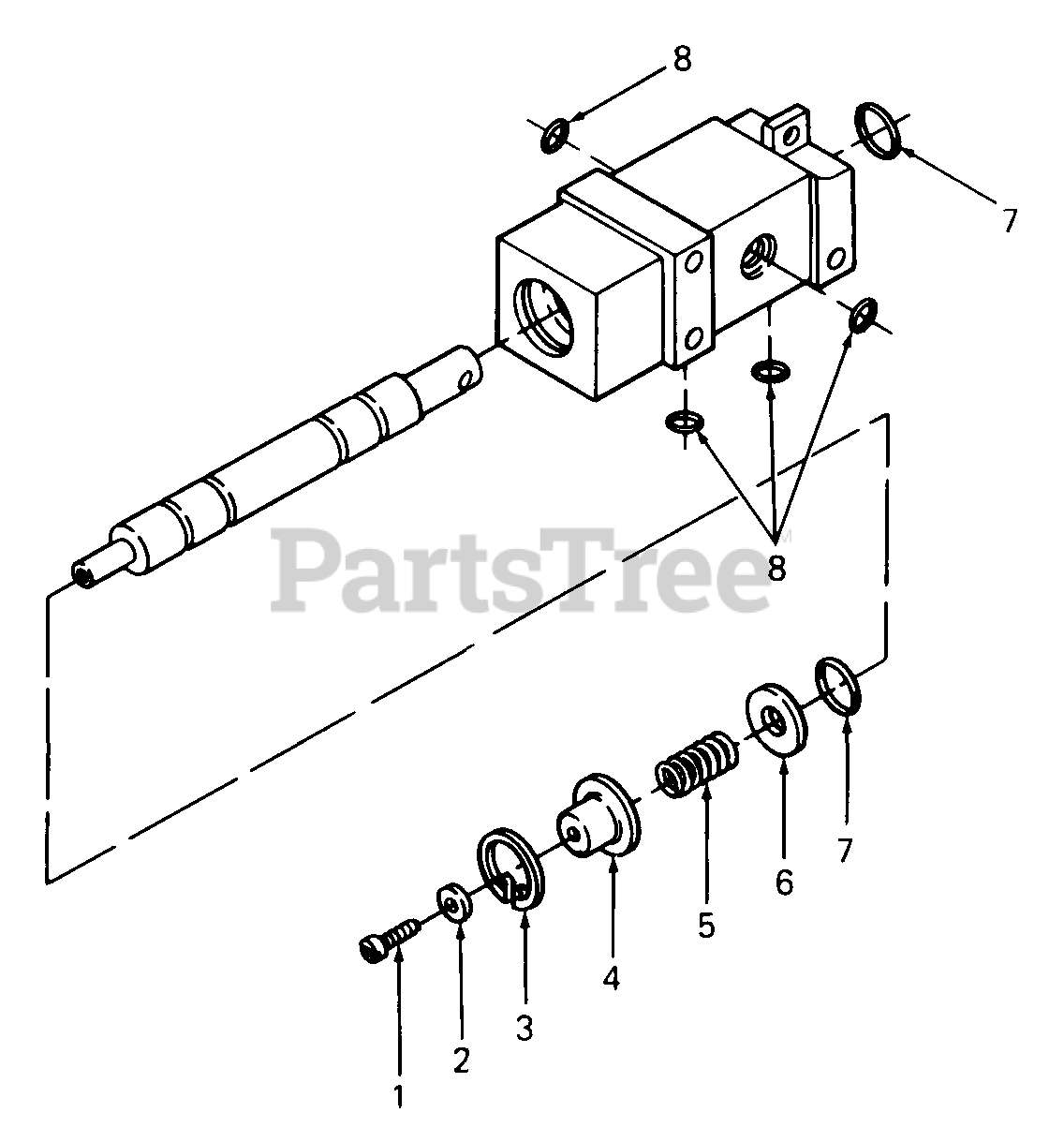

1541 (141-652-100) - Cub Cadet Garden Tractor (SN: 816509 - 821059) Hydraulic Lift Valve Parts Diagram
Garden Tractor
Hydraulic Lift Valve Parts Diagram
Cub Cadet 717-3308A
Hydraulic Valve Assy
$
$
Not available
$47.99
$
In Stock, only 1 left!
Cub Cadet 710-0192
Screw, Truss Mach, #10-24 x .38 Lg
$3.99
$
In Stock, Qty 12
Cub Cadet 736-0400
Washer, Flat, .218 x .62 x .063 Thk
$5.49
$
In Stock, Qty 12
Cub Cadet 716-3016
Ring, Int Snap, 1.023 Dia
$
$
Currently unavailable
Cub Cadet 711-3288
Cup, Centering
$
$
Currently unavailable
Cub Cadet 732-3059
Spring, Comp, .50 OD x .76 Lg
$2.99
$
In Stock, Qty 20+
$6.99
$
Usually ships in 3-6 days
Cub Cadet 721-3022
O-Ring, .424 x .103 Dia
$7.49
$
Usually ships in 3-6 days
$3.99
$
In Stock, only 2 left!
