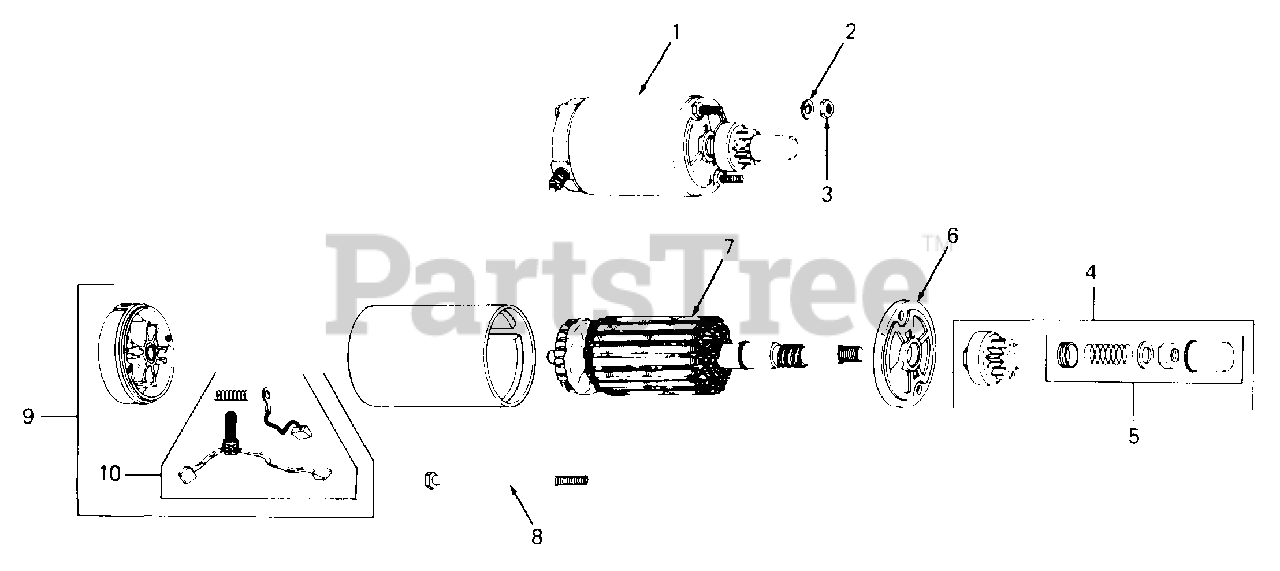

1541 (141-652-100) - Cub Cadet Garden Tractor (SN: 816509 - 821059) Electric Start Parts Diagram

Garden Tractor

Electric Start Parts Diagram

  • Title
1

Cub Cadet KH-52-098-03

Starter Assembly
(Superseded to KH-52-098-12)

$

$

Not available

2

Cub Cadet KH-X-20-1

Washer, Lock, 1/4

$

$

Not available

3

Cub Cadet KH-X-81-1

Nut, Hex, 1/4-20

$

$

Not available

4

Cub Cadet KH-52-755-05

Kit, Drive
(Superseded to KH-82-755-32)

Note: Includes Ref No. 5

$

$

Not available

5

Cub Cadet KH-52-755-08

Kit, Drive Parts
(Superseded to KH-82-755-32)

$

$

Not available

6

Cub Cadet KH-52-227-01

Cap, Drive End
(Superseded to KH-82-755-32)

$

$

Not available

$

$

Not available

8

Cub Cadet KH-52-211-01

Bolt, 1/4-20 x 5.87 Lg

$

$

Not available

9

Cub Cadet KH-277612

Cap, Commutator End

Note: Includes Ref No. 10

$

$

Not available

10

Cub Cadet KH-48-755-15

Kit, Brush
(Superseded to KH-82-755-28)

$

$

Not available

Cub Cadet KH-25-450-03

Tag, Caution

$

$

Currently unavailable

Cub Cadet KH-52-098-12

Starter, Bonded Drive Design

$

$

Not available
