1541 (141-651-100) - Cub Cadet Garden Tractor (SN: 800000 - 816508) PTO Clutch Parts Diagram

Garden Tractor

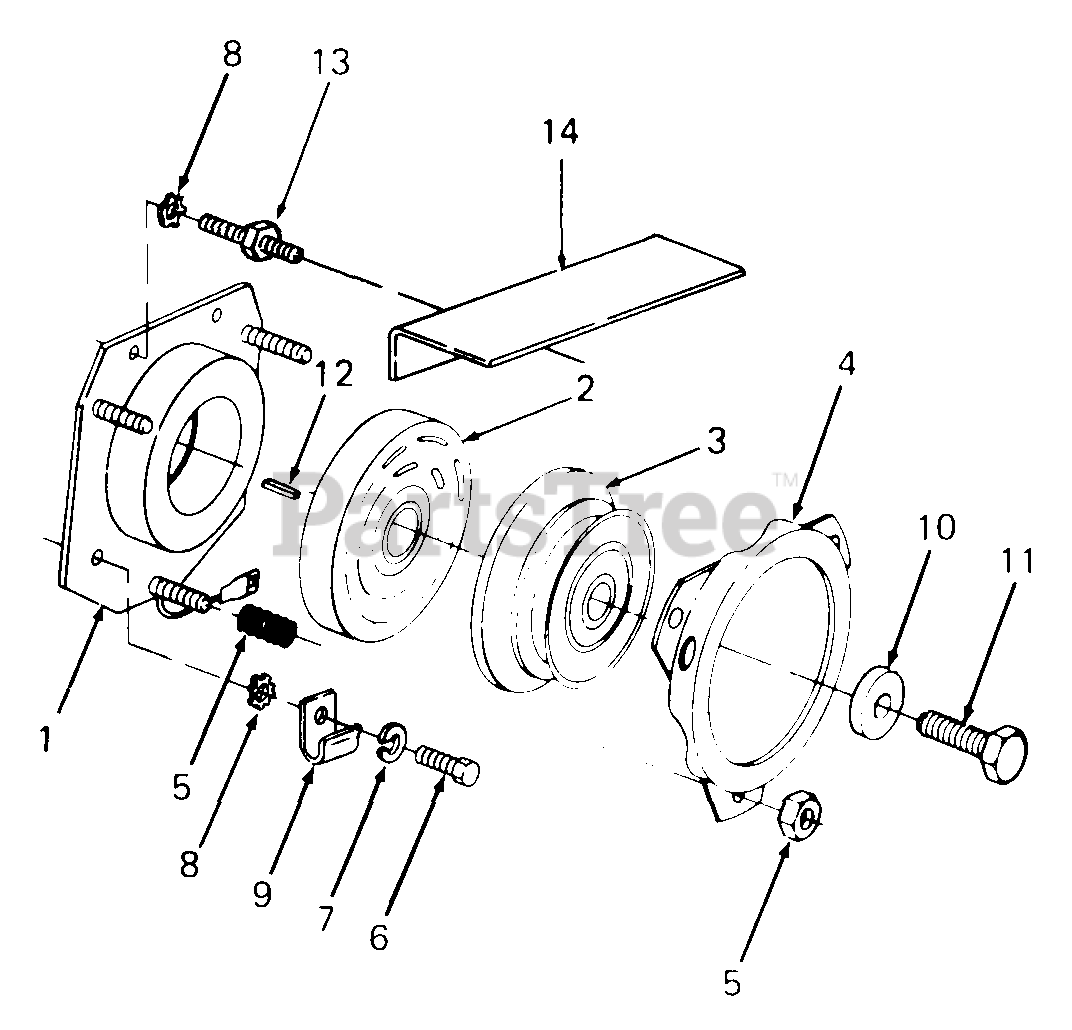

PTO Clutch Parts Diagram

  • Title

Cub Cadet 717-3044

PTO Clutch
(Superseded to 917-3044)

Note: Includes Ref No. 1, 2, 3, 4 & 5

$922.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 759-3300

Field

$340.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 759-3301

Rotor

$368.99

$

In Stock, only 1 left!

0

3

Cub Cadet 759-3304

Armature

$348.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 759-3305

Drum, Brake

$

$

Not available

5

Cub Cadet 759-3306

Spring & Nut Kit

$23.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3030

Screw, Hex Cap, 7/16-14 X .75 Lg GR5

$

$

Not available

7

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 736-3086

Washer, Ext. Lock, .45 X .75 X .035 Thk

$

$

Not available

9

Cub Cadet 726-3008

Clamp, Cable

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-3017

Washer, Flat, .47 X 1.5 X .225 Thk

$10.99

$

In Stock, only 4 left!

0

11

Cub Cadet 710-3029

Screw, Hex Cap, 7/16-20 X 1.25 Lg GR5

$4.49

$

In Stock, Qty 12

0

12

Cub Cadet 714-0119

Key, Square, 1/4 X .75 Lg

$8.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 711-3006

Stud, 7/16-14 Trd

$

$

Not available

14

Cub Cadet 703-1981

Baffle, PTO

$

$

Not available
