1541 (141-651-100) - Cub Cadet Garden Tractor (SN: 800000 - 816508) Lower Steering Parts Diagram

Garden Tractor

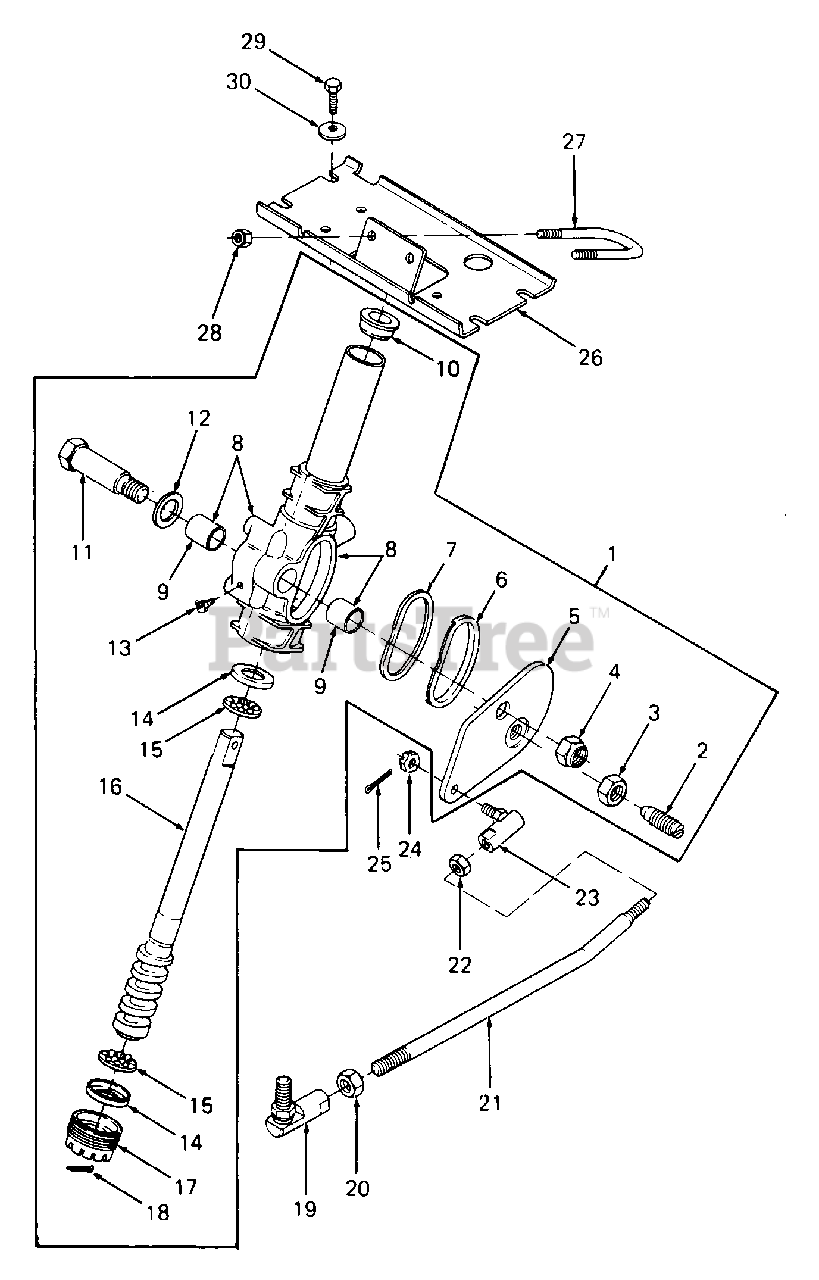

Lower Steering Parts Diagram

  • Title

1

Cub Cadet 703-1794

Steering Gear Assy

Note: Includes Ref No. 2-8, 10-18

$

$

Not available

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 X .88 Lg GR5

$7.49

$

In Stock, Qty 9

0

Cub Cadet 736-0105

Washer, Bell, .380 ID X .88 OD

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 711-3149

Follower, Cam
(Superseded to 911-3149A)

$45.99

$

In Stock, only 2 left!

0

3

Cub Cadet 712-3062

Nut, Hex Jam, 9/16-18

$

$

Not available

4

Cub Cadet 712-3063

Nut, Hex Crown Lock, 5/8-18

$8.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-1082

Arm, Steering

$

$

Not available

6

Cub Cadet 703-1031

Retainer, Seal

$

$

Not available

7

Cub Cadet 723-3039

Seal
(Superseded to 923-3039)

$8.99

$

In Stock, Qty 20+

0

8

Cub Cadet 703-1968

Housing/Tube Assy
(Superseded to 903-1968)

Note: Includes Ref No. 9

$

$

Not available

9

Cub Cadet 748-3008

Bushing

$

$

Not available

10

Cub Cadet 741-3023

Bearing, Column
(Superseded to 941-3023)

$8.49

$

In Stock, Qty 15

0

11

Cub Cadet 711-3208

Shaft, Pivot

$

$

Not available

12

Cub Cadet 736-3029

Washer, Flat, .781 X 1.25 X .027 Thk

$11.99

$

In Stock, only 1 left!

0

13

Cub Cadet 737-3001

Fitting, Lube, 45 Deg 1/4-28 Taper

$12.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-1029

Cup, Bearing
(Superseded to 903-1029)

$

$

Not available

15

Cub Cadet 741-3021

Retainer Assy, Ball
(Superseded to 941-3021)

$37.99

$

In Stock, Qty 13

0

16

Cub Cadet 703-1793

Shaft/Cam Assy

$

$

Not available

17

Cub Cadet 719-3053

Plug, Adjusting
(Superseded to 919-3053)

$

$

Not available

18

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia X .75 Lg

$4.99

$

In Stock, Qty 14

0

19

Cub Cadet 723-3015

Ball Joint
(Superseded to 923-3015)

$

$

Not available

20

Cub Cadet 712-3029

Nut, Hex Jam, 1/2-20 GR5

$6.99

$

In Stock, Qty 6

0

21

Cub Cadet 747-3140

Link, Drag

$

$

Not available

22

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 18

0

23

Cub Cadet 723-3000

Ball Joint
(Superseded to 923-3000)

$21.99

$

In Stock, Qty 12

0

24

Cub Cadet 712-3002

Nut, Hex Castle, 3/8-24 GR5
(Superseded to 912-3002)

$6.99

$

In Stock, Qty 8

0

25

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 703-1817

Plate, Steering Support

$

$

Not available

27

Cub Cadet 747-3016

Clamp

$

$

Not available

28

Cub Cadet 712-0237

Nut, Hex Center Lock, 5/16-24

$4.99

$

In Stock, only 4 left!

0

29

Cub Cadet 710-3004

Screw, Hex Hd Cutting, 5/16-18 X .75 Lg GR5
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060 Thk

$4.49

$

In Stock, Qty 20+

0
