1541 (140-651-100) - Cub Cadet Garden Tractor (SN: 800000 - 816508) Fenders And Footrest Parts Diagram

Garden Tractor

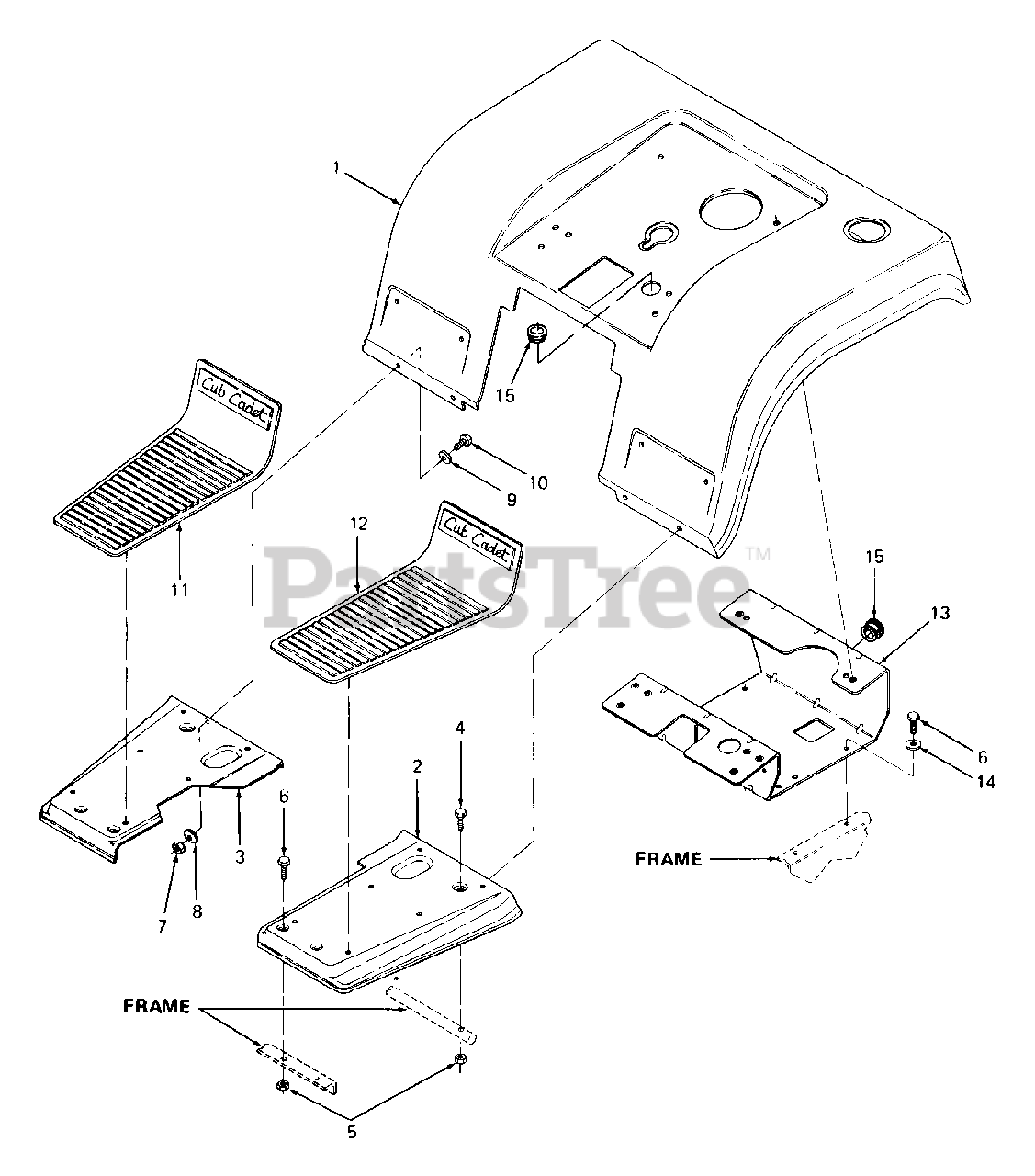

Fenders And Footrest Parts Diagram

  • Title

1

Cub Cadet 703-1796

Fender

$

$

Not available

Cub Cadet 779-3525A

Label, Rear Fender

$

$

Currently unavailable

2

Cub Cadet 703-1797

Running Board - LH

Variations

Cub Cadet 703-1797-0498

RUNNING BOARD CUB YELO - OLD CUB YELLOW (0498)

$

$

Not available

$

$

3

Cub Cadet 703-1798

Running Board - RH

Variations

Cub Cadet 703-1798-0498

RUNNING BOARD CUB YELO - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 X 1.25 Lg GR5

$4.49

$

In Stock, Qty 19

0

5

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0759

Screw, Hex Cap, 5/16-18 X .62 Lg GR5

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

8

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0173

Washer, Flat, .281 X .73 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg GR5

$4.99

$

In Stock, Qty 11

0

11

Cub Cadet 735-3030

Foot Pad - RH

$

$

Not available

12

Cub Cadet 735-3031

Foot Pad - LH

$

$

Not available

13

Cub Cadet 703-1887

Support Assembly, Seat

Variations

Cub Cadet 703-1887-0498

SUPPORT ASSEMBLY, SEAT - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 726-0215

Tie Strap, Pushmount

$

$

Not available

14

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062 Thk

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 723-3045

Bushing, Snap

$

$

Not available
