1541 (140-651-100) - Cub Cadet Garden Tractor (SN: 800000 - 816508) Drive Line For S/N 800,350 - 800,533 Parts Diagram

Garden Tractor

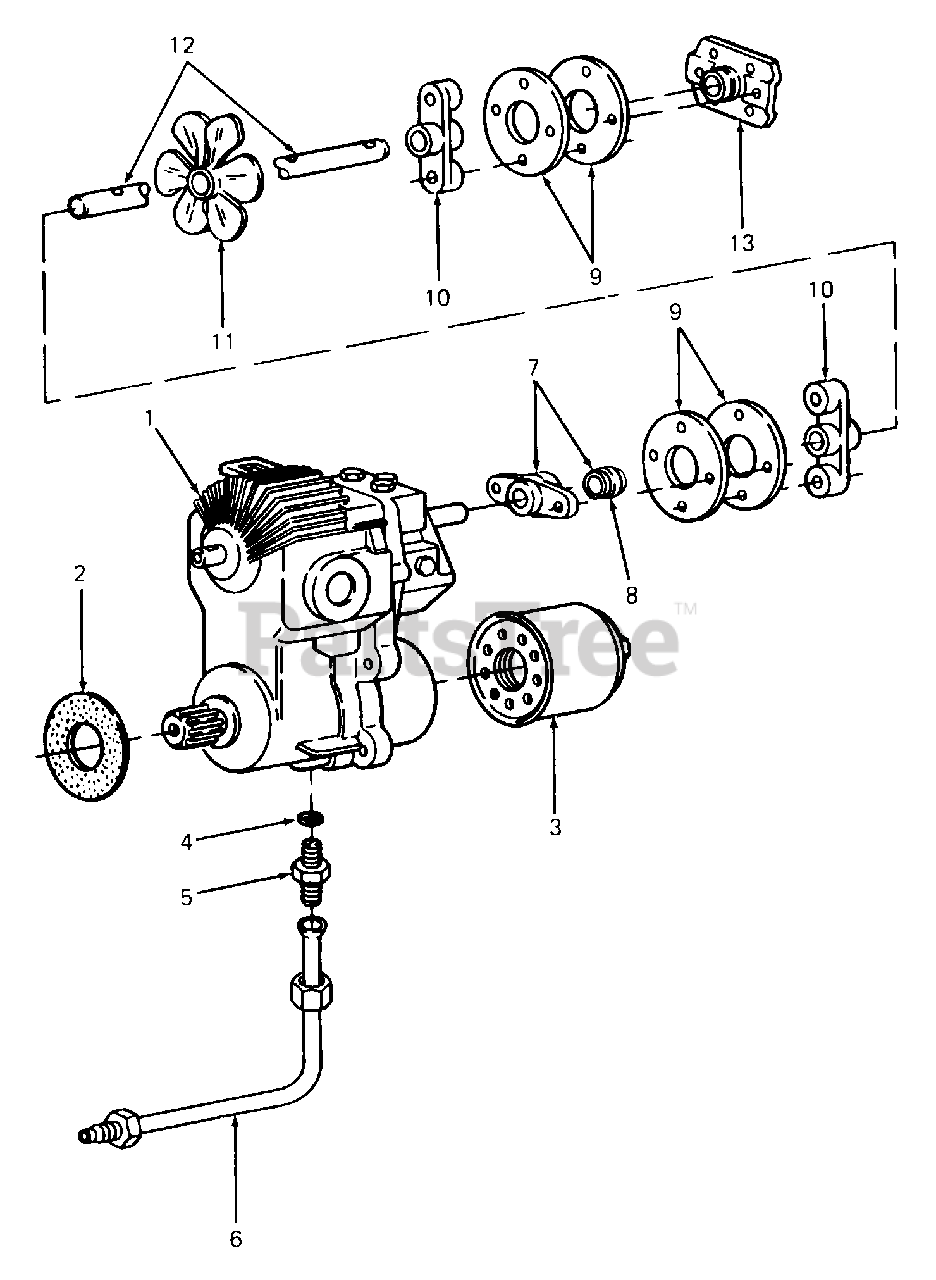

Drive Line For S/N 800,350 - 800,533 Parts Diagram

  • Title

1

Cub Cadet 717-3033

Pump, Hydrostatic

Note: For components see listing of parts under details of hydrostatic pump.

$

$

Currently unavailable

Cub Cadet 710-3120

Bolt, Hex Patch Lock, 3/8-16 X 1.5 Lg GR5

$3.99

$

In Stock, Qty 19

0

2

Cub Cadet 721-3004

Gasket, Front
(Superseded to 921-3004)

$10.99

$

In Stock, Qty 20+

0

3

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

4

Cub Cadet 721-3005

O-Ring, 5/8 OD Tube
(Superseded to 921-3005)

$

$

Not available

5

Cub Cadet 727-3009

Connector, 37 Degree

$

$

Not available

6

Cub Cadet 727-3027

Tube Assy

$

$

Not available

7

Cub Cadet 703-0794

Coupling Assy
(Superseded to 903-0794)

Note: Includes Ref No. 8

$244.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg GR5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

Cub Cadet 715-3000

Pin, Spirol Spring, 1/4 Dia X 1.38 Lg

$5.49

$

In Stock, Qty 20+

0

8

Cub Cadet 741-3004

Bushing, Ball
(Superseded to 941-3004)

$51.99

$

In Stock, Qty 7

0

9

Cub Cadet 722-3000

Disc, Flexible

$28.99

$

In Stock, only 2 left!

0

10

Cub Cadet 748-3001

Arm, Coupling

$

$

Not available

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.50 Lg GR5

$4.49

$

In Stock, Qty 6

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

Cub Cadet 715-3000

Pin, Spirol Spring, 1/4 Dia X 1.38 Lg

$5.49

$

In Stock, Qty 20+

0

11

Cub Cadet 731-3009

Fan, Cooling
(Superseded to 931-3009)

$31.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0931

Washer, Flat, .203 X .41 X .040 Thk

$4.99

$

In Stock, only 1 left!

0

Cub Cadet 710-0460

Screw, Truss Mach, #10-24 X 1.50 Lg

$

$

Currently unavailable

Cub Cadet 712-0998

Nut, Hex Center Lock, #10-24

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 738-3011

Shaft, Drive

$117.99

$

In Stock, only 1 left!

0

13

Cub Cadet 703-0204

Flange Assy, Drive Shaft
(Superseded to 903-0204)

$40.99

$

In Stock, Qty 10

0

Cub Cadet 710-3034

Bolt, Carriage, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 5

0

Cub Cadet 726-3028

Retainer, Bolt, 3/8 Dia
(Superseded to 926-3028)

$

$

Not available

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 9

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
