1541 (140-651-100) - Cub Cadet Garden Tractor (SN: 800000 - 816508) Baffles And Shroud Parts Diagram

Garden Tractor

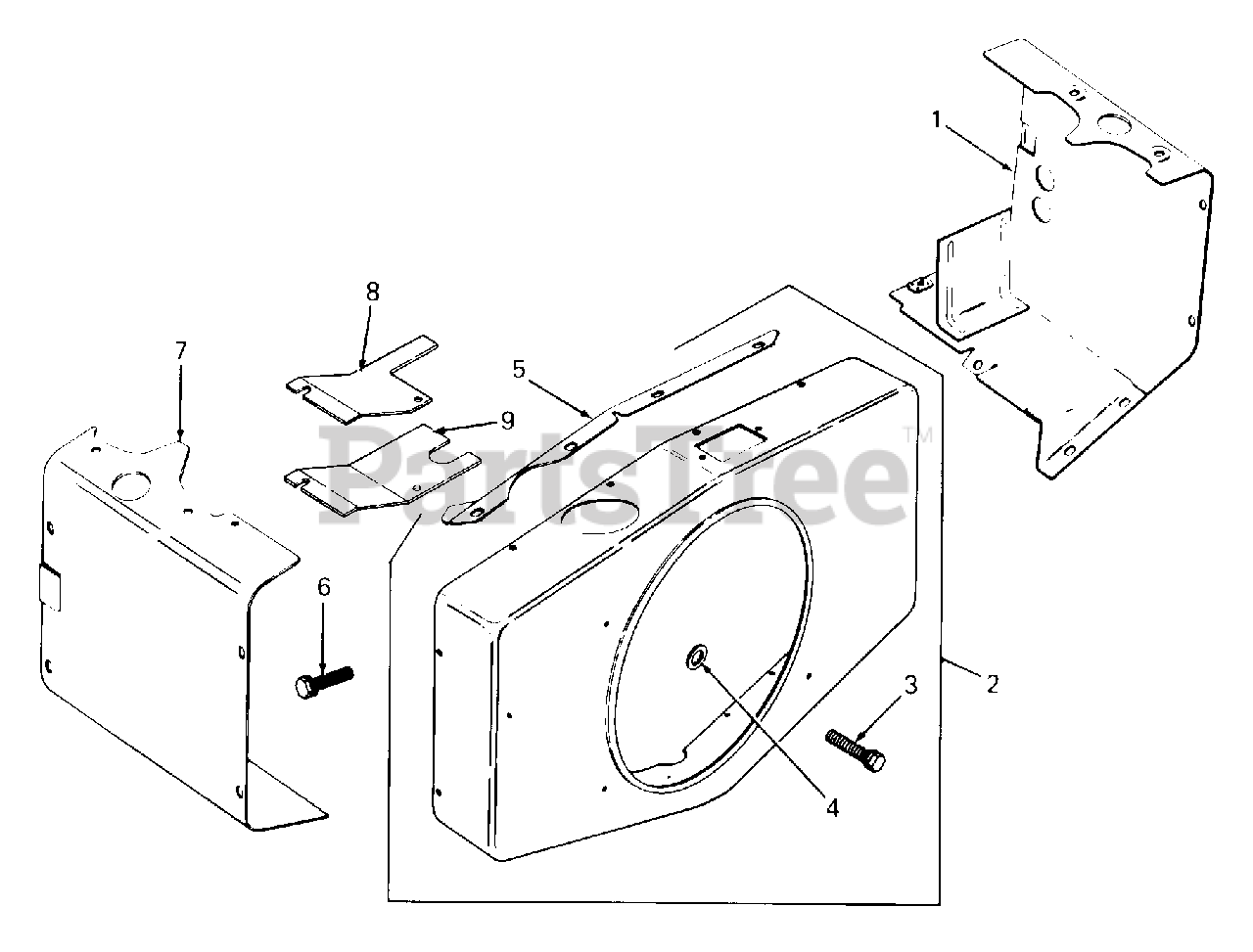

Baffles And Shroud Parts Diagram

  • Title
1

Cub Cadet KH-52-063-18

Baffle, #1 Cylinder Head

$

$

Not available

2

Cub Cadet KH-52-755-71

Kit, Blower Housing

Note: Includes Ref No. 3 (Qty 2), 4 (Qty 2) & 5.

$

$

Not available

3

Cub Cadet KH-52-086-11

Screw, Self Tap, 1/4-20 X .62 Lg

$

$

Not available

4

Cub Cadet KH-52-468-16

Washer, Flat, 1/4

$

$

Not available

5

Cub Cadet KH-52-217-01

Support, Upper Housing

$

$

Not available

6

Cub Cadet KN-X-67-83

Screw, Hex Wash Hd, 1/4-20 X .43 Lg

$

$

Currently unavailable

7

Cub Cadet KH-52-124-02

Baffle, #2 Cylinder Head
(Superseded to KH-52-063-21-S)

$

$

Not available

8

Cub Cadet KH-52-063-01

Baffle, #2 Cylinder Top
(Superseded to KH-52-063-01-S)

$

$

Not available

9

Cub Cadet KH-52-063-39

Baffle, Pump

Note: Used on Tractors w/Serial No. 811,501 & above.

$

$

Not available

$

$

Not available
