154 - International Harvester Cub Lo-Boy Tractor Water Inlet & Outlet Elbows Parts Diagram

Cub Lo-Boy Tractor

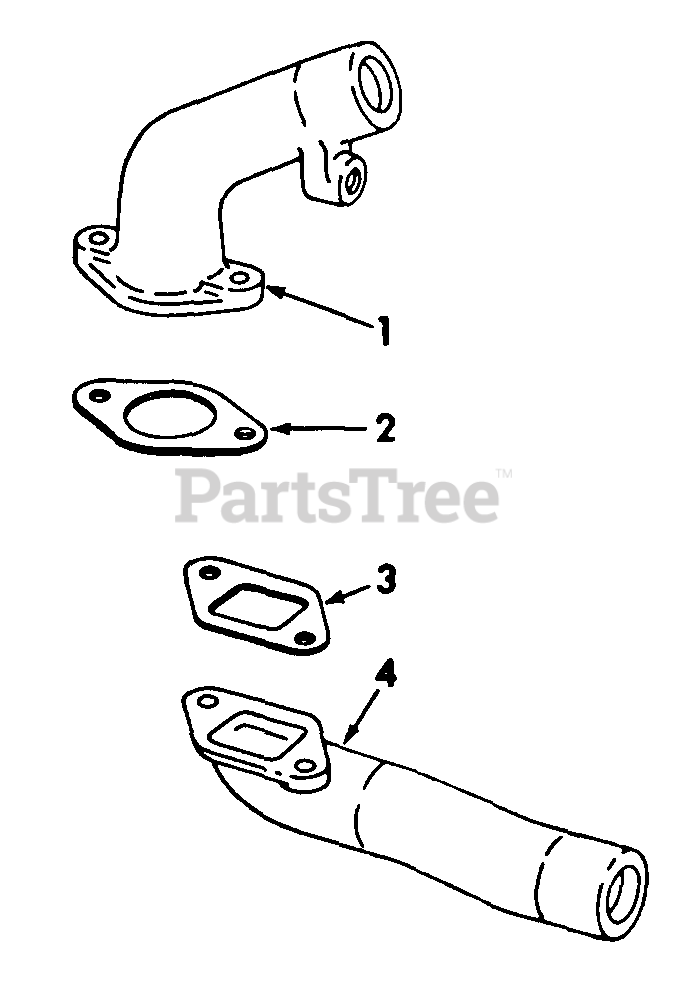

Water Inlet & Outlet Elbows Parts Diagram

  • Title
1

Cub Cadet IH-352071-R1

ELBOW, WATER OUTLET

Note: CUB 154 LO-BOY TRACTORS WITH S/N 20947 & BELOW

$

$

Currently unavailable

Cub Cadet IH-531861-R1

ELBOW, WATER OUTLET

Note: CUB 154 LO-BOY TRACTORS WITH S/N 20948 & ABOVE, 184 TRACTORS & CUB 185 LO-BOY TRACTORS

$

$

Currently unavailable

Cub Cadet IH-114498

NUT, 5/8-18 HEX JAM

$

$

Currently unavailable

Cub Cadet IH-179838

SCREW, 3/8-16 X 7/8 HEX-HD CAP
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

Cub Cadet IH-186284

SCREW, 3/8-16 X 3-3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103026

NUT, 3/8-24 HEX
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

2

Cub Cadet IH-4665D

GASKET, WATER OUTLET ELBOW

$

$

Not available

3

Cub Cadet IH-251431-R1

GASKET, WATER INLET ELBOW

$

$

Currently unavailable

4

Cub Cadet IH-352072-R2

PIPE, ENGINE WATER INLET

Note: REPLACES IH-251430-R2

$

$

Currently unavailable

Cub Cadet IH-444624

PLUG, 3/8-18 AUTO HEX-HD PIPE

$

$

Currently unavailable

Cub Cadet IH-179838

SCREW, 3/8-16 X 7/8 HEX-HD CAP
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable
