154 - International Harvester Cub Lo-Boy Tractor Steering Gear Parts Diagram

Cub Lo-Boy Tractor

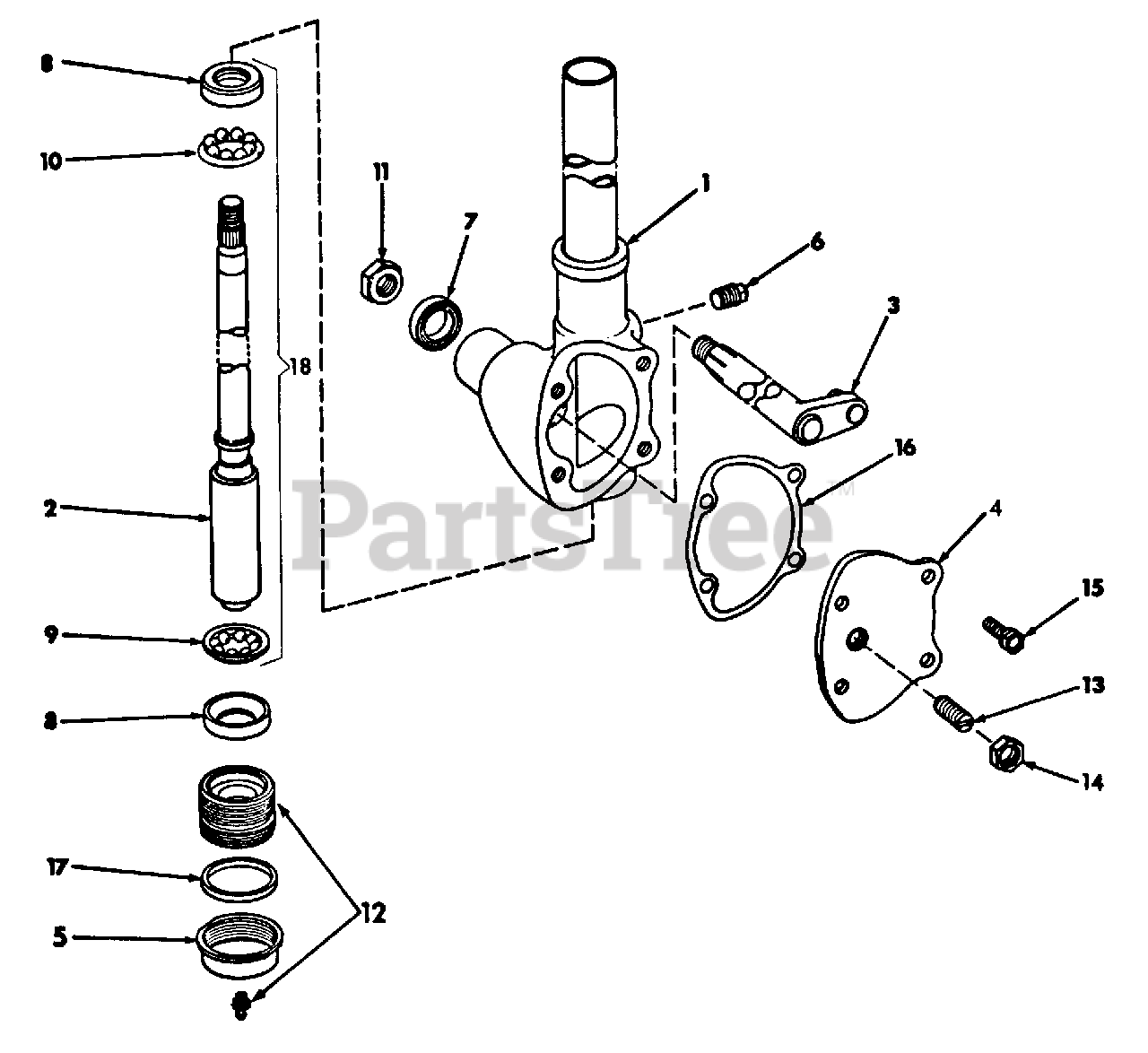

Steering Gear Parts Diagram

  • Title

Cub Cadet IH-404589-R91

STEERING GEAR ASSY

$

$

Currently unavailable

1

Cub Cadet IH-63153-C91

HOUSING AND TUBE KIT

Note: INCLUDES REF NO. 7 - REPLACES IH-405990-R1

$

$

Currently unavailable

2

CAM AND TUBE ASSY

Note: NOT SERVICED SEPARATELY, ORDER IH-63154-C91 KIT

$

$

Not available

Cub Cadet IH-124944

NUT 5/8-18 C-Z HEX JAM
(Superseded to 712-3056)

$4.99

$

In Stock, Qty 13

0

3

Cub Cadet IH-63155-C91

LEVER AND SHAFT KIT

Note: INCLUDES NUT, IH-141088H AND WASHER, IH-121574-REPLACES IH-405995-R1

$

$

Currently unavailable

4

Cub Cadet IH-405997-R1

COVER, SIDE

$

$

Currently unavailable

5

Cub Cadet IH-405994-R1

NUT, LOCK

$

$

Currently unavailable

6

Cub Cadet IH-444577

PLUG, 1/4 SQ-HD PIPE

$

$

Currently unavailable

7

Cub Cadet IH-257842-C91

SEAL, OIL

$

$

Not available

8

Cub Cadet IH-71930-C91

KIT, BALL CUP

$

$

Not available

9

RETAINER, BALL

Note: NOT SERVICED SEPARATELY, ORDER IH-71930-C91 KIT

$

$

Not available

10

Cub Cadet IH-389081-R91

RETAINER AND BALL ASSY
(Superseded to 941-3021)

$37.99

$

In Stock, Qty 13

0

11

Cub Cadet IH-141088H

NUT, STEERING ARM

$

$

Currently unavailable

Cub Cadet IH-121574

WASHER, 5/8 MED LOCK
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 11

0

12

Cub Cadet IH-406564-R1

PLUG ASSY, LUB FITTING & ADJUSTING

$

$

Currently unavailable

13

Cub Cadet IH-50443H

SCREW, ADJUSTING

$

$

Currently unavailable

14

Cub Cadet IH-120069-H1

NUT ADJ, SCREW LOCK

$

$

Currently unavailable

15

Cub Cadet IH-406725-R1

BOLT W/WASHER, COVER

$

$

Currently unavailable

16

Cub Cadet IH-405996-R1

GASKET, SIDE COVER

$

$

Currently unavailable

17

Cub Cadet IH-405993-R1

SEAL

$

$

Currently unavailable

18

Cub Cadet IH-63154-C91

CAM AND TUBE KIT

$

$

Currently unavailable
