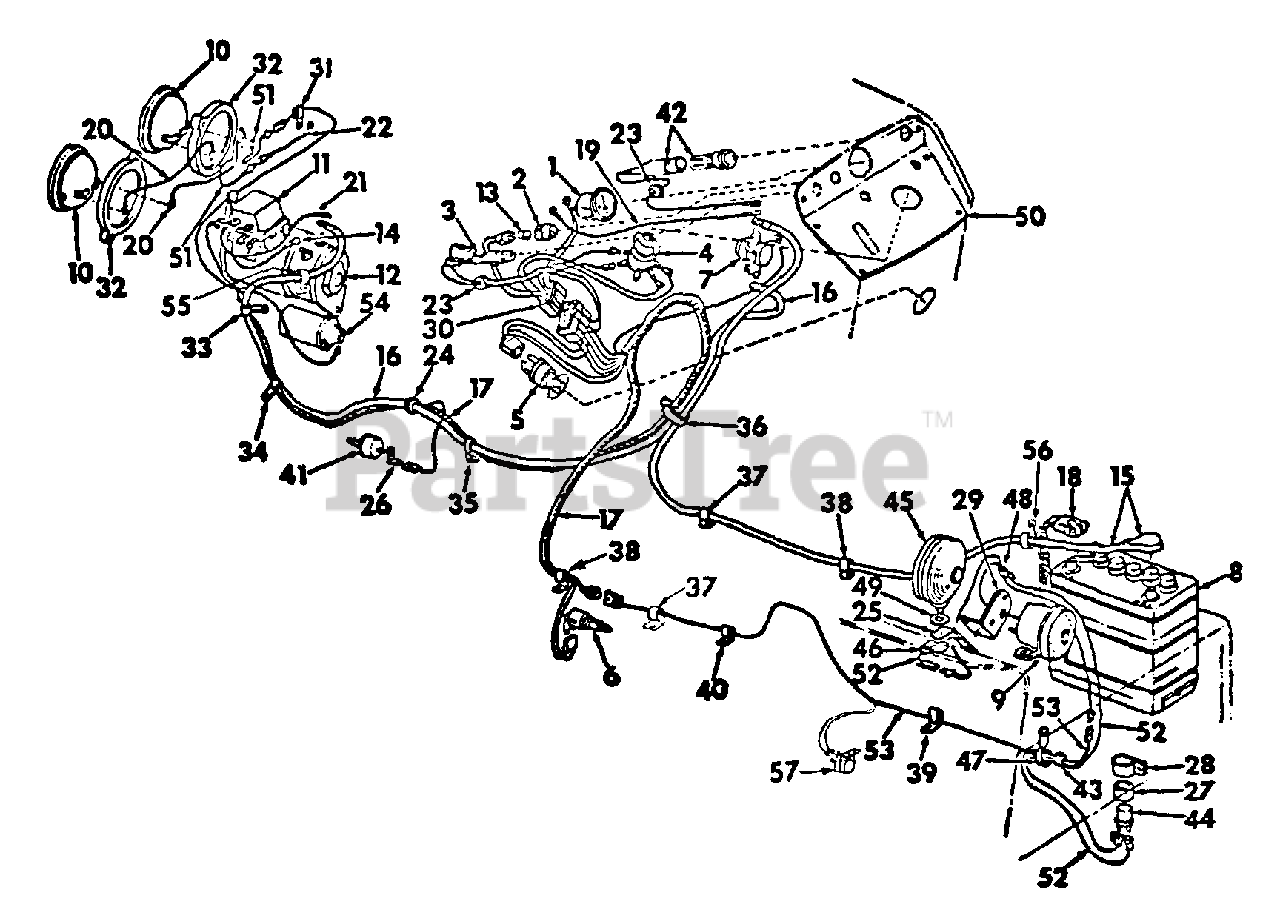

154 - International Harvester Cub Lo-Boy Tractor Starting And Lighting Parts Diagram

Cub Lo-Boy Tractor

Starting And Lighting Parts Diagram

  • Title

1

INDICATOR ASSY, CHARGE

$

$

Not available

2

SOCKET ASSY, OIL TELLITE

$

$

Not available

3

HOUSING ASSY, FUSE

$

$

Not available

4

SWITCH ASSY, LIGHTING

$

$

Not available

5

SWITCH ASSY, BATTERY IGNITION KEY

$

$

Not available

6

Cub Cadet IH-121629-C1

SWITCH, NEUTRAL STARTING
(Superseded to 925-3038)

$80.99

$

Usually ships in 3-6 days

0

7

Cub Cadet IH-121613-C1

SWITCH, MAGNETIC
(Superseded to 925-3001)

Note: REPLACES IH-545756-R2

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120614

NUT, NO. 10-NF MACH SCREW TYPE 1
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-109084

NUT, 1/4 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120367

NUT, 1/4-NF TYPE 5
(Superseded to 912-0138)

$

$

Not available

Cub Cadet IH-120217

WASHER, NO. 10 LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120214

WASHER, 5/16 LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-114604

WASHER, 1/4 EXT. PIN TOOTH LOCK
(Superseded to 936-0222)

$

$

Not available

Cub Cadet IH-611344-R1

WASHER, 11/32 X 7/8 X 16 GA
(Superseded to 736-0195)

Note: 1 OR AS REQUIRED

$

$

Not available

8

Cub Cadet IH-PR2-2NF

BATTERY, 12 VOLT

$

$

Currently unavailable

9

Cub Cadet IH-376850-R91

LIGHT ASSY, TAIL 12 VOLT

Note: SERVICEABLE ITEMS ARE THE 3 FOLLOWING.

$

$

Currently unavailable

Cub Cadet IH-142450

LAMP

$

$

Not available

Cub Cadet IH-157729-R1

LENS

$

$

Currently unavailable

Cub Cadet IH-81714-R1

GASKET

$

$

Currently unavailable

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

Cub Cadet IH-120380

WASHER, 1/4 ZND MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet IH-373662-R91

UNIT ASSY, SEALED BEAM HEAD LIGHT
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

11

REGULATOR ASSY, VOLTAGE

$

$

Not available

12

MOTOR GENERATOR ASSY

Note: REFER TO MOTOR GENERATOR AND CONNECTIONS LISTING, THIS SECTION

$

$

Not available

13

Cub Cadet IH-9412348

LAMP, NO. 257 12 VOLT

Note: OIL TELLITE FLASHER

$

$

Currently unavailable

14

Cub Cadet IH-1911485

LEAD, A TERMINAL TO REGULATOR

$

$

Currently unavailable

15

Cub Cadet IH-387263-R91

CABLE ASSY, BATTERY TO MAGNETIC SWITCH

$

$

Currently unavailable

16

Cub Cadet IH-404850-R1

CABLE ASSY, MAGNETIC SWITCH TO GENERATOR

$

$

Currently unavailable

17

Cub Cadet IH-404847-R2

HARNESS ASSY, CABLE

$

$

Currently unavailable

18

Cub Cadet IH-629029-R92

STRAP ASSY, BATTERY TO GROUND

$

$

Not available

19

Cub Cadet IH-404424-R1

CABLE ASSY, CHARGE INDICATOR TO MAGNETIC SWITCH

$

$

Currently unavailable

20

Cub Cadet IH-404404-R1

CABLE ASSY, RH LIGHT TO LH LIGHT

$

$

Currently unavailable

21

Cub Cadet IH-1914185

LEAD, F TERMINAL TO REGULATOR

$

$

Currently unavailable

22

Cub Cadet IH-405209-R1

CABLE ASSY, HEAD LIGHT TO CONNECTOR

$

$

Not available

23

IH-42731H

GROMMET, RUBBER

Note: IN PEDESTAL

$

$

Not available

24

Cub Cadet IH-127979

GROMMET, RUBBER

Note: PEDESTAL FRONT SHEET RH SIDE

$

$

Not available

25

Cub Cadet IH-405640-R1

SUPPORT, WARNING LIGHT

$

$

Currently unavailable

26

Cub Cadet IH-365501-R1

TERMINAL, OIL PRESSURE SWITCH ANGLE

$

$

Currently unavailable

26

Cub Cadet IH-384396-R1

TERMINAL, OIL PRESSURE SWITCH

Note: TRACTOR W/IPTO ATTACHMENT

$

$

Currently unavailable

Cub Cadet IH-24557-R1

SCREW, 10-32 X 1/2 SLT-PAN-HD MACH

$

$

Currently unavailable

Cub Cadet IH-131183

WASHER, NO. 10 LOCK

$

$

Currently unavailable

27

Cub Cadet IH-394134-R1

ABSORBER, FLASHER MOUNTING

$

$

Currently unavailable

28

Cub Cadet IH-394133-R1

BRACKET, FLASHER MOUNTING

$

$

Currently unavailable

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180081

SCREW, 5/16-18 X 1-1/4 ZND HEX-HD CAP
(Superseded to 710-0528)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/8 C-Z MED LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet IH-371029-R1

BRACKET

$

$

Currently unavailable

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

Cub Cadet IH-180020

SCREW, 1/4-20 X 3/4 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

Cub Cadet IH-404848-R1

CABLE ASSY, INSTRUMENT PANEL

$

$

Currently unavailable

31

Cub Cadet IH-362667-R1

CLIP, CABLE HARNESS RADIATOR & MOTOR GENERATOR

$

$

Currently unavailable

32

Cub Cadet IH-389746-R1

RING, HEAD LIGHT CLAMP
(Superseded to IH-389746-R2)

Note: 154 LO-BOY TRACTOR

$

$

Not available

32

Cub Cadet IH-107333-C1

RING, HEAD LIGHT RUBBER
(Superseded to IH-107333-C2)

Note: 185 LO-BOY TRACTORS

$

$

Not available

33

Cub Cadet IH-363660-R1

CLIP, CABLE HARNESS MOTOR GENERATOR

$

$

Currently unavailable

34

Cub Cadet IH-545996-R1

CLIP, CABLE HARNESS & BATTERY CABLE

$

$

Currently unavailable

35

Cub Cadet IH-371035-R1

CLIP, CABLE HARNESS FRAME RH

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-179791

SCREW, 1/4-20 X 1/2 HEX-HD CAP

$

$

Currently unavailable

36

CLIP, CABLE HARNESS -WELDED ON PEDESTAL

$

$

Not available

37

Cub Cadet IH-362123-R1

CLIP, CABLE HARNESS

$

$

Not available

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-179791

SCREW, 1/4-20 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103339

WASHER, 9/32 X 5/8 X .065
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

38

Cub Cadet IH-370383-R1

CLIP, BATTERY CABLE RH FRAME AND LH FRAME

$

$

Not available

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-179791

SCREW, 1/4-20 X 1/2 HEX HD CAP

$

$

Currently unavailable

Cub Cadet IH-103339

WASHER, 9/32 x 5/8 x .065
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

39

Cub Cadet IH-536034-R1

CLIP, BATTERY CABLE

$

$

Currently unavailable

40

Cub Cadet IH-362123-R1

CLIP, TAIL LIGHT

$

$

Not available

Cub Cadet IH-102634

NUT, 5/16-18 HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-179814

SCREW, 5/16-18 X 5/8 HEX HD CAP

$

$

Currently unavailable

Cub Cadet IH-103340

WASHER, 11/32 X 11/16 X .051

$

$

Currently unavailable

41

Cub Cadet IH-376855-R92

SWITCH ASSY, OIL PRESSURE

$

$

Not available

42

LIGHTER ASSY, CIGARETTE

$

$

Not available

43

Cub Cadet IH-364657-C1

GROMMET, RUBBER

Note: REPLACES IH-117973

$

$

Currently unavailable

44

Cub Cadet IH-394132-R91

FLASHER, WARNING LIGHT

$

$

Currently unavailable

45

Cub Cadet IH-67538-C92

LIGHT ASSY, FLASHING WARNING

Note: ONLY SERVICEABLE ITEM IS LAMP, 9417866

$

$

Not available

Cub Cadet IH-120371

NUT, 1/2-20 C-Z HEX

$

$

Currently unavailable

Cub Cadet IH-135629

WASHER, 1/2 C-Z EXT-TOOTH LOCK

$

$

Currently unavailable

46

Cub Cadet IH-358986-R1

CLIP, WARNING LIGHT CABLE

$

$

Currently unavailable

47

Cub Cadet IH-363660-R1

CLIP, TAIL LIGHT CABLE

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

Cub Cadet IH-179833

SCREW, 3/8-16 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

48

Cub Cadet IH-362121-R1

CLIP, TAIL LIGHT CABLE
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

49

Cub Cadet IH-394262-R1

GASKET, WARNING LIGHT

$

$

Currently unavailable

50

PANEL, INSTRUMENT

Note: REFER TO ENGINE CONTROLS AND INSTRUMENTS LISTING, GROUP 11

$

$

Not available

51

Cub Cadet IH-404851-R1

CABLE ASSY, HEAD LIGHT JUNCTION

$

$

Currently unavailable

52

Cub Cadet IH-404852-R1

CABLE ASSY, WARNING LIGHT

$

$

Currently unavailable

53

Cub Cadet IH-57860-C1

HARNESS ASSY, TAIL LIGHT & IPTO STARTING SWITCH

$

$

Currently unavailable

54

Cub Cadet IH-396547-R93

COIL ASSY, IGNITION

$

$

Not available

55

Cub Cadet IH-370383-R1

CLIP, CABLE

Note: ON WATER OUTLET FRONT MOUNTING BOLT

$

$

Not available

56

Cub Cadet IH-362123-R1

CLIP, BATTERY CABLE ON FRONT MOUNTING BOLT

$

$

Not available

57

Cub Cadet IH-537641-R1

SWITCH ASSY, SAFETY STARTING

Note: TRACTOR W/IPTO ATTACHMENT

$

$

Not available

Cub Cadet IH-57885-C1

CABLE NEUTRAL STARTING SWITCH

$

$

Currently unavailable

Cub Cadet IH-9417866

LAMP

$

$

Currently unavailable
