154 - International Harvester Cub Lo-Boy Tractor Radiator And Connections Parts Diagram

Cub Lo-Boy Tractor

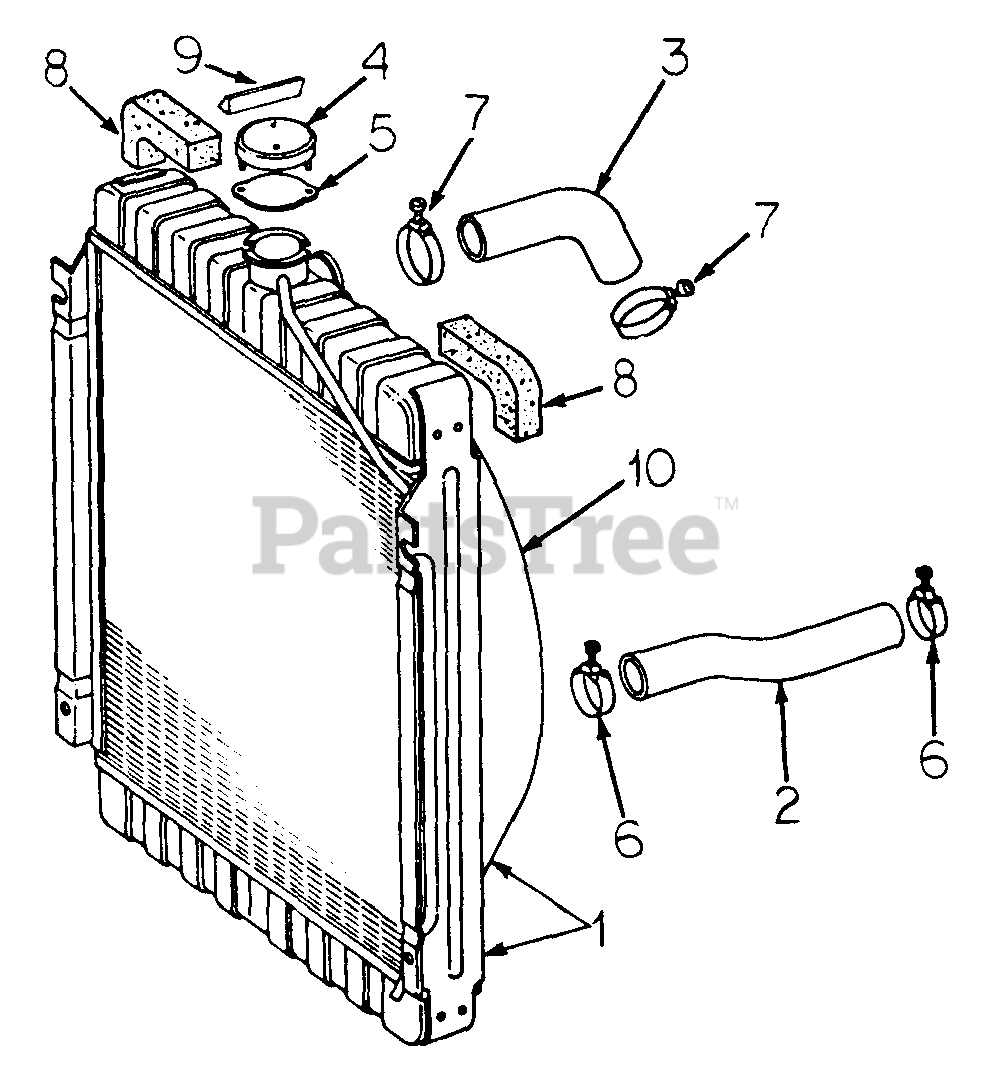

Radiator And Connections Parts Diagram

  • Title

1

Cub Cadet IH-404547-R3

RADIATOR ASSY

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

Cub Cadet IH-179837

SCREW, 3/8-16 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103341

WASHER, 13/32 X 13/16 X .065

$

$

Not available

Cub Cadet IH-115549

WASHER, 3/8 INT PLN TOOTH LOCK

$

$

Not available

2

Cub Cadet IH-404550-R1

HOSE, RADIATOR BOTTOM

$

$

Not available

3

Cub Cadet IH-404549-R1

HOSE, RADIATOR TOP

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-531860-R1

HOSE, RADIATOR TOP

$

$

Not available

4

Cub Cadet IH-140117-C91

CAP ASSY, RADIATOR W/PRODUCT GRAPHIC

Note: 184 TRACTOR

$

$

Currently unavailable

Cub Cadet IH-140118-C91

CAP ASSY, RADIATOR W/PRODUCT GRAPHIC

Note: 154 & 185 LO-BOY TRACTORS

$

$

Currently unavailable

Cub Cadet IH-120614

NUT, 10-32 HEX
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

5

Cub Cadet IH-404548-R1

CAP, RADIATOR

$

$

Not available

Cub Cadet IH-Q5001

WASHER, 9/32 X 3/4 11 GA

$

$

Currently unavailable

6

Cub Cadet IH-995223-R1

CLAMP, RADIATOR HOSE LOWER

$

$

Not available

7

Cub Cadet IH-995223-R1

CLAMP, RADIATOR HOSE TOP

$

$

Not available

8

GASKET, RADIATOR BAFFLE UPPER

Note: FURNISH 11.0" FROM 4' LENGTH MARKED IH-73218-C1

$

$

Not available

9

Cub Cadet IH-392718-R1

PRODUCT GRAPHIC, RADIATOR CAP ORNAMENT

$

$

Currently unavailable

Cub Cadet IH-141526

SCREW, 10-24 X 3/8 SLT-TRUSS-HD MACH

$

$

Currently unavailable

10

Cub Cadet IH-135463-C1

SHROUD, FAN

$

$

Currently unavailable

Cub Cadet IH-445444

NUT, 10-12 PHC U-SPR STYLE II

$

$

Currently unavailable

Cub Cadet IH-23985-R1

SCREW, NO. 10-16 X 1/2 H/WHD TAP
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

Cub Cadet IH-73218-C1

GASKET MATERIAL

Note: (SEE REF. NO. 8)

$

$

Currently unavailable
