154 - International Harvester Cub Lo-Boy Tractor Indep. Power Take-Off, Cub 154 Lo-Boy Tr. (S/N 18708 & Below) Parts Diagram

Cub Lo-Boy Tractor

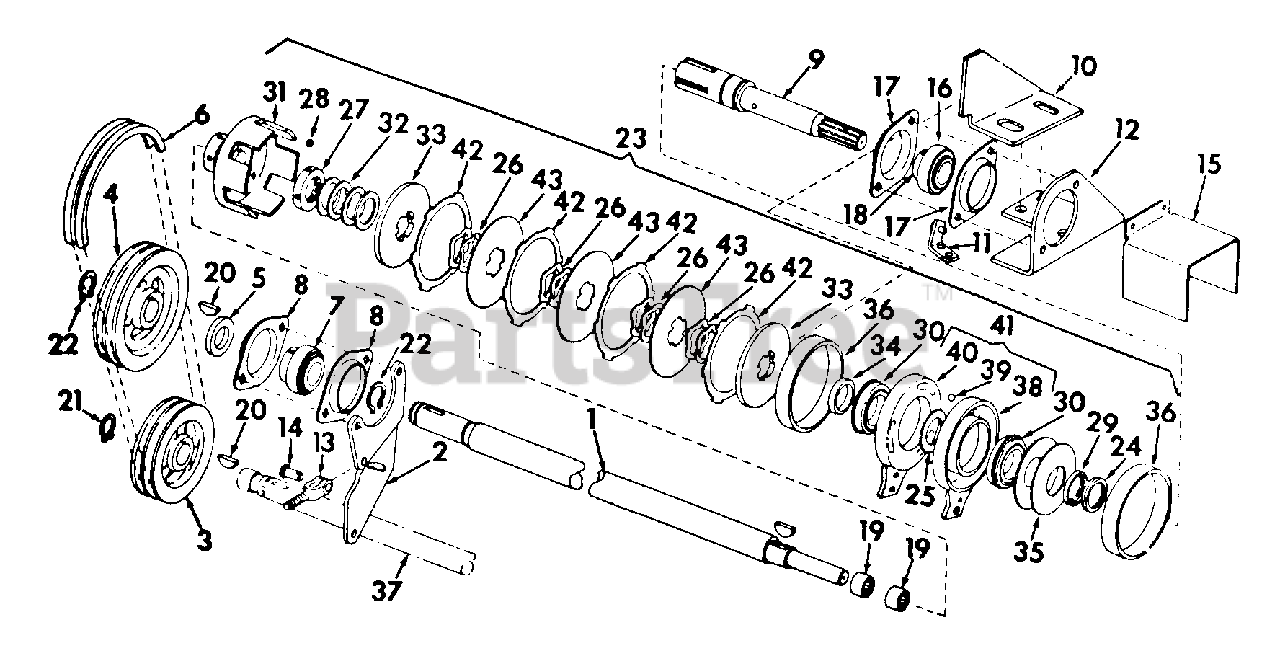

Indep. Power Take-Off, Cub 154 Lo-Boy Tr. (S/N 18708 & Below) Parts Diagram

  • Title

1

Cub Cadet IH-404934-R1

SHAFT, PTO DRIVE

$

$

Not available

2

Cub Cadet IH-404935-R1

ADJUSTER, PTO SHAFT & PULLEY

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

Cub Cadet IH-180124

SCREW, 3/8-16 X 1-1/4 HEX-HD CAP
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103341

WASHER, 13/32 X 13/16 X .051

$

$

Not available

3

Cub Cadet IH-404932-R2

PULLEY, PTO DRIVE

$

$

Not available

4

Cub Cadet IH-543600-R1

PULLEY, PTO DRIVEN

Note: ALSO ORDER SCREW IH-102572

$

$

Not available

Cub Cadet IH-102572

SCREW, 1/4 X 5/8 HEX-SOC-HD CUP-PT SET

$

$

Not available

5

Cub Cadet IH-404937-R1

SPACER, PTO SHAFT

$

$

Currently unavailable

6

Cub Cadet IH-527382-R91

BELTS, MATCHED SET PTO DRIVE V

$124.99

$

Usually ships in 3-6 days

0

7

Cub Cadet IH-549165-R91

BEARING, PTO SHAFT FRONT BALL
(Superseded to IH-549165-R92)

Note: REPLACES IH-491590-R91

$82.99

$

Usually ships in 3-6 days

0

8

Cub Cadet IH-581469-R1

FLANGE, BRG

$

$

Currently unavailable

Cub Cadet IH-15008-R1

BOLT, 3/8-16 X 1 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

9

Cub Cadet IH-404917-R11

SHAFT W/TWO BEARINGS

Note: BEARING P/N IH-276574-R91

$

$

Not available

Cub Cadet IH-443566

FITTING, 3/16 DRIVE TYPE STR LUB
(Superseded to 937-3000)

Note: PTO CLUTCH SHAFT

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet IH-404921-R1

SUPPORT ASSY, INDEPENDENT PTO BRAKE BRACKET

$

$

Not available

Cub Cadet IH-180017

SCREW, 1/4-20 X 9/16 ZND HEX-HD CAP

$

$

Not available

Cub Cadet IH-180174

SCREW, 1/2-13 X 1-1/8 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet IH-16558-R1

WASHER, 17/64 X 5/8 X .036
(Superseded to 936-3020)

$

$

Not available

Cub Cadet IH-120396

WASHER, 17/32 X 1-1/16 X .074 C-Z
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet IH-404925-R2

BRACKET, CLUTCH CLEAT

$

$

Not available

Cub Cadet IH-548962-R1

SHIM, CLUTCH CLEAT .059

Note: 1 OR AS REQUIRED

$

$

Currently unavailable

Cub Cadet IH-180022

SCREW, 1/4-20 X ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-120392

WASHER, 9/32 X 5/8 X .065 C-Z
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet IH-404939-R1

SUPPORT, PTO SHAFT BRG, MTG BRACKET

$

$

Currently unavailable

13

Cub Cadet IH-404936-R1

YOKE ASSY, ADJUSTABLE

$

$

Currently unavailable

Cub Cadet IH-124925

NUT, 3/8-24 C-Z HEX. JAM

$

$

Currently unavailable

Cub Cadet IH-103341

WASHER 13/32 X 13/16 X .051

$

$

Not available

14

Cub Cadet IH-103496

PIN, 3/8 X 1-3/32 ROD END
(Superseded to 911-3010)

$

$

Not available

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT.
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

15

Cub Cadet IH-404940-R1

GUARD, PTO SHAFT

$

$

Currently unavailable

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

16

Cub Cadet IH-528343-R92

BEARING, PTO SHAFT REAR BALL
(Superseded to IH-528343-R93)

Note: REPLACES IH-455960-R91

$

$

Not available

17

Cub Cadet IH-581469-R1

FLANGE, BRG

$

$

Currently unavailable

Cub Cadet IH-15008-R1

BOLT, 3/8-16 X 1 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

18

Cub Cadet IH-557115-R11

COLLAR W/SET SCREW LOCKING

$

$

Not available

19

Cub Cadet IH-276574-R91

BEARING, PTO IDLER SHAFT NEEDLE

$

$

Not available

20

Cub Cadet IH-124552

KEY, 3/16 X 1 WOODRUFF 13

$

$

Not available

21

Cub Cadet IH-369875-R1

RING, DRIVE PULLEY RETAINING

$

$

Not available

22

Cub Cadet IH-454319-R1

RING, RETAINING

$

$

Not available

23

Cub Cadet IH-404938-R91

CLUTCH ASSY, INDEPENDENT PTO

Note: ORDER CLUTCH ASSY, IH-404938-R94

$

$

Currently unavailable

24

Cub Cadet IH-406986-R1

RING, SNAP

$

$

Not available

25

Cub Cadet IH-659380-R1

RING, SNAP

$

$

Not available

26

Cub Cadet IH-527246-R1

SPRING, WAVE

$

$

Currently unavailable

27

Cub Cadet IH-527239-R1

LOCKNUT

$

$

Currently unavailable

28

Cub Cadet IH-531973-R1

SET SCREW

$

$

Currently unavailable

29

Cub Cadet IH-527233-R1

RETAINER

$

$

Not available

30

Cub Cadet IH-59769-C91

BEARING, CAM
(Superseded to IH-59769-C92)

$

$

Not available

31

Cub Cadet IH-547292-R1

CUP ASSY, DRIVE

$

$

Not available

Cub Cadet IH-102571

SCREW 1/4 X 5/16 HEX-SOC-HD-CUP-PT SET

$

$

Not available

32

Cub Cadet IH-527247-R1

SHIM

$

$

Not available

33

Cub Cadet IH-527244-R1

PLATE, PRESSURE

$

$

Not available

34

Cub Cadet IH-530168-R1

SPACER

$

$

Not available

35

Cub Cadet IH-527236-R1

SPRING, LOAD

$

$

Not available

36

Cub Cadet IH-527241-R1

COVER, CAM

$

$

Not available

37

Note: REFER TO TRANSMISSION LISTING, THIS GROUP

$

$

Not available

38

CAM, STATIONARY

Note: ORDER KIT, IH-545394-R92

$

$

Not available

39

Cub Cadet IH-16014-R1

BALL, 7/16 CR-STL

$

$

Currently unavailable

40

CAM, ACTUATING

Note: ORDER KIT, IH-545 394 R92

$

$

Not available

41

Cub Cadet IH-545394-R92

KIT, ACTUATOR REBUILD
(Superseded to IH-545394-R93)

Note: CONSISTS OF REF NOS 32, 38-40

$

$

Not available

42

DISC FRICTION

Note: ORDER KIT, 527245-R92

$

$

Not available

43

DISC SEPARATOR

Note: ORDER KIT, 527245-R92

$

$

Not available

Cub Cadet IH-527245-R92

KIT, DISC PACK REPAIR

Note: CONSISTS OF THE FOLLOWING 7 ITEMS

$499.99

$

Usually ships in 3-6 days

0

DISC, FRICTION

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

DISC, SEPARATOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Cub Cadet IH-527239-R1

NUT

$

$

Currently unavailable

Cub Cadet IH-406986-R1

RING

$

$

Not available

Cub Cadet IH-531973-R1

SCREW

$

$

Currently unavailable

Cub Cadet IH-527247-R1

SHIM

$

$

Not available

Cub Cadet IH-527246-R1

SPRING

$

$

Currently unavailable

Cub Cadet IH-546651-R11

SHAFT

Note: USED WITH PTO CLUTCH

$

$

Not available

Cub Cadet IH-406986-R1

SNAP RING

$

$

Not available

Cub Cadet IH-404938-R94

CLUTCH ASSY

$

$

Not available
