154 - International Harvester Cub Lo-Boy Tractor Final Drive Parts Diagram

Cub Lo-Boy Tractor

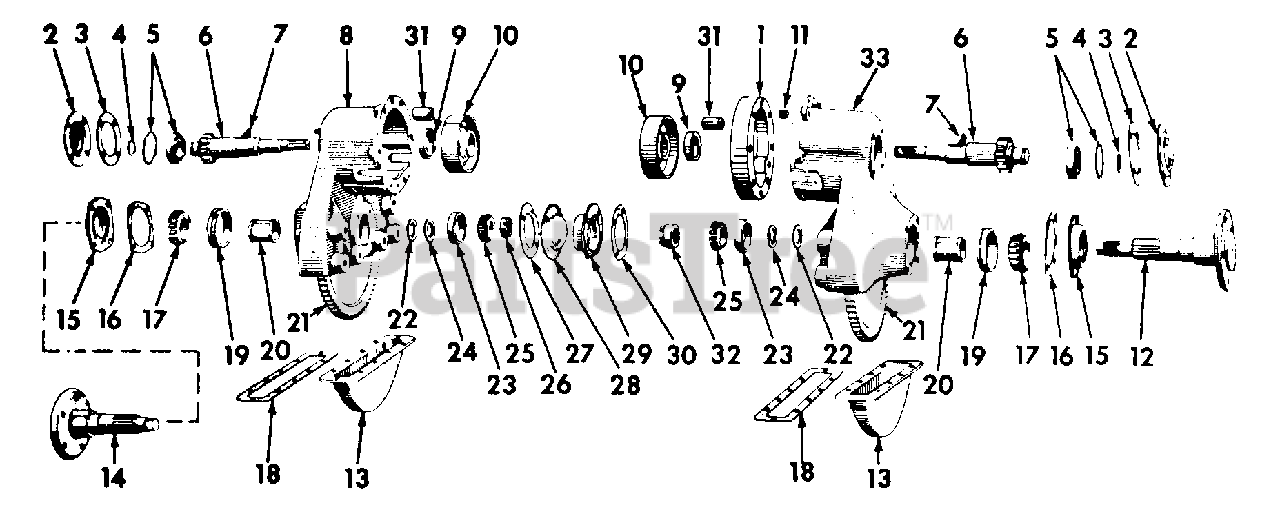

Final Drive Parts Diagram

  • Title
1

Cub Cadet 532527-R11

SPACER W/BUSHING, IH-358756-R1, REAR AXLE

$

$

Currently unavailable

Cub Cadet 547136-R1

SHIM, REAR AXLE SPACER - 16 GA

Note: (1 OR AS REQUIRED)

$

$

Currently unavailable

Cub Cadet 547137-R1

SHIM, REAR AXLE SPACER - 22 GA

Note: (1 OR AS REQUIRED)

$

$

Currently unavailable

2

Cub Cadet 350803-R1

RETAINER, SHAFT BRG

$

$

Currently unavailable

Cub Cadet 179835

BOLT, 3/8 X 5/8 PLN TYPE 5

$

$

Currently unavailable

3

Cub Cadet 350804-R1

GASKET, BEARING LOCK

$

$

Currently unavailable

4

Cub Cadet 350802-R1

RING, SHAFT BRG LOCK

$

$

Currently unavailable

5

Cub Cadet ST364

BEARING ASSY, BALL

$

$

Currently unavailable

6

Cub Cadet 350800-R2

SHAFT, DIFFERENTIAL

$

$

Currently unavailable

7

Cub Cadet 124552

KEY, 3/16 X 1 WOODRUFF 13

Note: (BRAKE DRUM)

$

$

Currently unavailable

8

Cub Cadet 364026-R51

HOUSING ASSY, REAR AXLE LH

$

$

Currently unavailable

Cub Cadet 180126

BOLT, 3/8 X 1-1/2 TYPE 5

$

$

Currently unavailable

Cub Cadet 120382

WASHER, 3/8 LOCK

$

$

Currently unavailable

Cub Cadet 445751

PLUG, 1/2-14 AUTO-SQ-SOC-HD PIPE

$

$

Currently unavailable

9

Cub Cadet 381907-R91

SEAL, DIFFERENTIAL SHAFT PINION OIL

Note: REPLACES IH-530969-R91

$

$

Currently unavailable

10

Cub Cadet 350805-R2

DRUM, BRAKE

$

$

Currently unavailable

Cub Cadet 102634

NUT, 5/16 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet 360270-R1

SCREW, LOCK

$

$

Currently unavailable

11

Cub Cadet 358756-R1

BUSHING, ACTUATING TOGGLE

$

$

Currently unavailable

12

Cub Cadet 350815-R2

AXLE, REAR RH

$

$

Currently unavailable

Cub Cadet 351079-R1

BOLT, RH REAR WHEEL MTG

$

$

Currently unavailable

13

Cub Cadet 350826-R1

PAN, REAR AXLE HOUSING

$

$

Currently unavailable

Cub Cadet 179812

BOLT, 5/16 X 1/2 PLN TYPE 5

$

$

Currently unavailable

14

Cub Cadet 350815-R2

AXLE, REAR LH

$

$

Currently unavailable

Cub Cadet 351079-R1

BOLT, LH REAR WHEEL MTG

$

$

Currently unavailable

15

Cub Cadet 350822-R92

SEAL, REAR AXLE OIL

$

$

Currently unavailable

Cub Cadet 179835

BOLT, 3/8 X 5/8 PLN TYPE 5

$

$

Currently unavailable

Cub Cadet 103321

WASHER, 3/8 PLN LOCK

$

$

Currently unavailable

16

Cub Cadet 350823-R1

GASKET, REAR AXLE OIL SEAL

$

$

Currently unavailable

17

Cub Cadet ST2047

BEARING ASSY, OUTER CONE

$

$

Currently unavailable

18

Cub Cadet 350827-R1

GASKET, REAR AXLE HOUSING PAN

$

$

Currently unavailable

19

Cub Cadet ST973

BEARING, OUTER CUP

$

$

Currently unavailable

20

Cub Cadet 353162-R1

SPACER, REAR AXLE BEARING

$

$

Currently unavailable

21

Cub Cadet 350824-R2

GEAR, REAR AXLE DRIVE 70T

$

$

Currently unavailable

22

Cub Cadet 353163-R3

SPACER, REAR AXLE DRIVE GEAR

$

$

Currently unavailable

23

Cub Cadet 350809-R1

BEARING, INNER CUP

$

$

Currently unavailable

24

Cub Cadet 353164-R1

SHIM, REAR AXLE DRIVE GEAR - .004

$

$

Currently unavailable

24

Cub Cadet 353165-R1

SHIM, REAR AXLE DRIVE GEAR - .008

$

$

Currently unavailable

24

Cub Cadet 353166-R1

SHIM, REAR AXLE DRIVE GEAR - .015

$

$

Currently unavailable

24

Cub Cadet 353167-R1

SHIM, REAR AXLE DRIVE GEAR - .030

$

$

Currently unavailable

25

Cub Cadet 350808-R91

BEARING ASSY, INNER CONE

$

$

Currently unavailable

26

Cub Cadet 350817-R1

NUT, REAR AXLE LH

$

$

Currently unavailable

Cub Cadet 103384

PIN, 1/8 X 3/4 PLN COT

$

$

Currently unavailable

27

Cub Cadet 350820-R1

GASKET, REAR AXLE BRG CAP LH

$

$

Currently unavailable

28

Cub Cadet 350821-R1

CAP, REAR AXLE BRG LH

$

$

Currently unavailable

Cub Cadet 179-B14

BOLT, 5/16 X 5/8 PLN TYPE 5

$

$

Currently unavailable

103320

WASHER, 5/16 PLN LOCK

$

$

Not available

29

Cub Cadet 350821-R1

CAP, REAR AXLE BRG RH

$

$

Currently unavailable

179814

BOLT, 5/16 X 5/8 PEN TYPE 5

$

$

Not available

103320

WASHER, 5/16 PLN LOCK

$

$

Not available

30

Cub Cadet 350820-R1

GASKET, REAR AXLE BRG CAP RH

$

$

Currently unavailable

31

Cub Cadet 358756-R1

BUSHING, ACTUATING TOGGLE

$

$

Currently unavailable

32

Cub Cadet 350817-R1

NUT, REAR AXLE RH

$

$

Currently unavailable

Cub Cadet 103384

PIN, 1/8 X 3/4 PLN COT

$

$

Currently unavailable

33

Cub Cadet 364027-R51

HOUSING ASSY, REAR AXLE RH

$

$

Currently unavailable

Cub Cadet 445751

PLUG, 1/2-14 AUTO. SQ-SOC-HD PIPE

$

$

Currently unavailable

Cub Cadet 120377

NUT, 3/8 TYPE 5

$

$

Currently unavailable

180134

BOLT, 3/8 X 2-1/2 TYPE 5

$

$

Not available

Cub Cadet 180137

BOLT, 3/8 X 2-3/4 TYPE 5

$

$

Currently unavailable

Cub Cadet 120382

WASHER, 3/8 LOCK

$

$

Currently unavailable
