154 - International Harvester Cub Lo-Boy Tractor Engine Controls & Inst. - 154 Tractors (S/N 14536-Above) & 185 Tractors Parts Diagram

Cub Lo-Boy Tractor

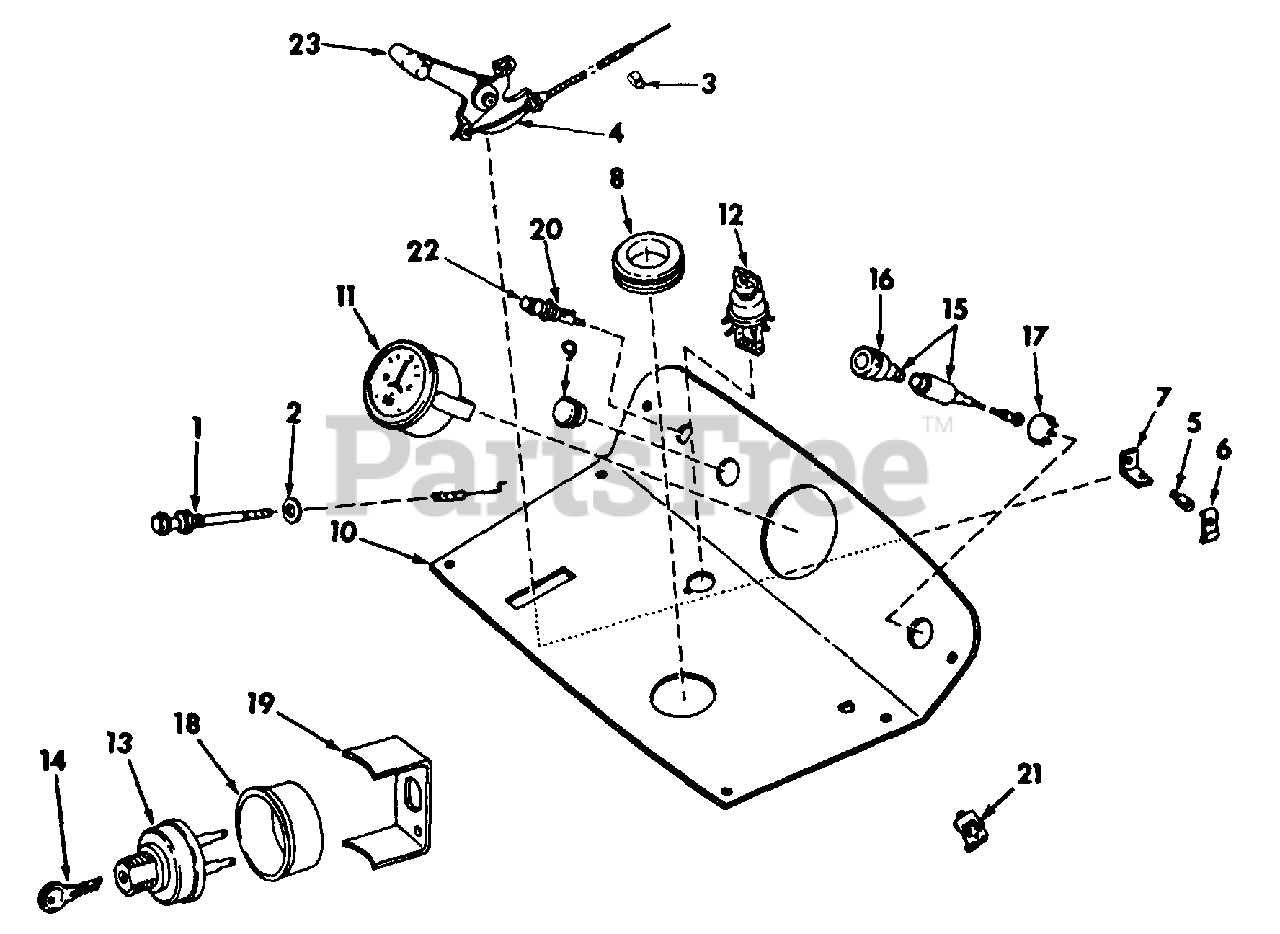

Engine Controls & Inst. - 154 Tractors (S/N 14536-Above) & 185 Tractors Parts Diagram

  • Title

1

Cub Cadet IH-529926-R1

CABLE ASSY, CHOKE LEVER

$

$

Not available

2

Cub Cadet IH-131022

WASHER, .406 X .812 X .051 CRB - BEZEL CHOKE

$

$

Currently unavailable

3

IH-61813D

CLIP, THROTTLE CABLE

$

$

Not available

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

4

Cub Cadet IH-543920-R3

LEVER, THROTTLE CABLE -LESS KNOB
(Superseded to IH-543920-R4)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120221

SCREW, 10-24 X 1/2 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 CDP MED LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet IH-404853-R1

PIN, GOVERNOR CONTROL SWIVEL

$

$

Currently unavailable

Cub Cadet IH-103361

PIN, 1/16 X 1/2 PLN COT

$

$

Currently unavailable

Cub Cadet IH-103373

PIN, 3/32 X 3/4 PLN COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

Cub Cadet IH-132105

SCREW, NO. 10-NF X 3/8 ZNP FIL/HDS MACH

$

$

Not available

Cub Cadet IH-120385

WASHER, .250 X .562 X .036

$

$

Currently unavailable

Cub Cadet IH-103341

WASHER, .406 X .812 X .051 PLN

$

$

Not available

6

Cub Cadet IH-32596D

CLAMP, THROTTLE CONTROL

$

$

Not available

Cub Cadet IH-132119

SCREW, 10-32 X 5/8 C-Z CR-REC-F-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 CDP WED LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet IH-406565-R1

BRACKET ASSY, THROTTLE CONTROL

$

$

Currently unavailable

8

Cub Cadet IH-376254-R1

GROMMET, INSTRUMENT PANEL

$

$

Not available

9

Cub Cadet IH-404854-R1

SOCKET ASSY, TELLITE FOR 27/32 IN PANEL MOUNTING HOLE

$

$

Currently unavailable

Cub Cadet IH-544311-R1

SOCKET ASSY, TELLITE FOR 29/32 IN PANEL MOUNTING HOLE

$

$

Currently unavailable

10

Cub Cadet IH-549998-R2

PANEL ASSY, INSTRUMENT

$

$

Not available

Cub Cadet IH-23927-R1

SCREW, 1/4 X 3/4 CAD P/HDCR MACH

$

$

Currently unavailable

Cub Cadet IH-162050

SCREW, 14-10 X 1/2 CAD CR-REC

$

$

Currently unavailable

Cub Cadet IH-539643-R1

WASHER, INSTRUMENT PANEL

$

$

Currently unavailable

11

Cub Cadet IH-378424-R91

INDICATOR ASSY, CHARGE
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

12

Cub Cadet IH-376851-R92

SWITCH ASSY, LIGHTING
(Superseded to IH-376851-R93)

$92.99

$

Usually ships in 3-6 days

0

13

Cub Cadet IH-60736-C2

SWITCH ASSY, BATTERY IGNITION KEY
(Superseded to IH-60736-C3)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet IH-365502-R1

NUT, BATTERY IGNITION SWITCH

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-375431-R1

WASHER, BATTERY IGNITION SWITCH

$11.99

$

In Stock, only 1 left!

0

14

Cub Cadet IH-131313-C1

KEY, IGNITION SWITCH
(Superseded to IH-131313-C2)

$12.99

$

In Stock, only 2 left!

0

15

Cub Cadet IH-393699-R91

CIGARETTE LIGHTER PARTS ACCESSORY

$

$

Currently unavailable

16

Cub Cadet IH-378781-R91

UNIT, POP OUT

$

$

Currently unavailable

17

Cub Cadet IH-432281

PLUG, 29/32 BUTTON CIGARETTE LIGHTER OPENING HOLE

$

$

Currently unavailable

18

Cub Cadet IH-402238-R1

SOCKET, IGNITION SWITCH

$

$

Currently unavailable

19

Cub Cadet IH-402239-R1

RETAINER, IGNITION SWITCH

$

$

Not available

20

Cub Cadet IH-376852-R91

HOUSING ASSY, FUSE
(Superseded to 925-3011)

$21.99

$

In Stock, Qty 7

0

Cub Cadet IH-120151

FUSE, CARTRIDGE TYPE AGC15

$

$

Currently unavailable

21

Cub Cadet IH-391076-R1

CLIP, SPEED
(Superseded to KH-235603)

$

$

Not available

22

Cub Cadet IH-356445-R92

KNOB, FUSE HOLDER
(Superseded to IH-356445-R91)

$13.99

$

In Stock, only 1 left!

0

23

Cub Cadet IH-530118-R1

KNOB, THROTTLE CONTROL CABLE LEVER
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0
