154 - International Harvester Cub Lo-Boy Tractor Crankshaft & Related Parts Parts Diagram

Cub Lo-Boy Tractor

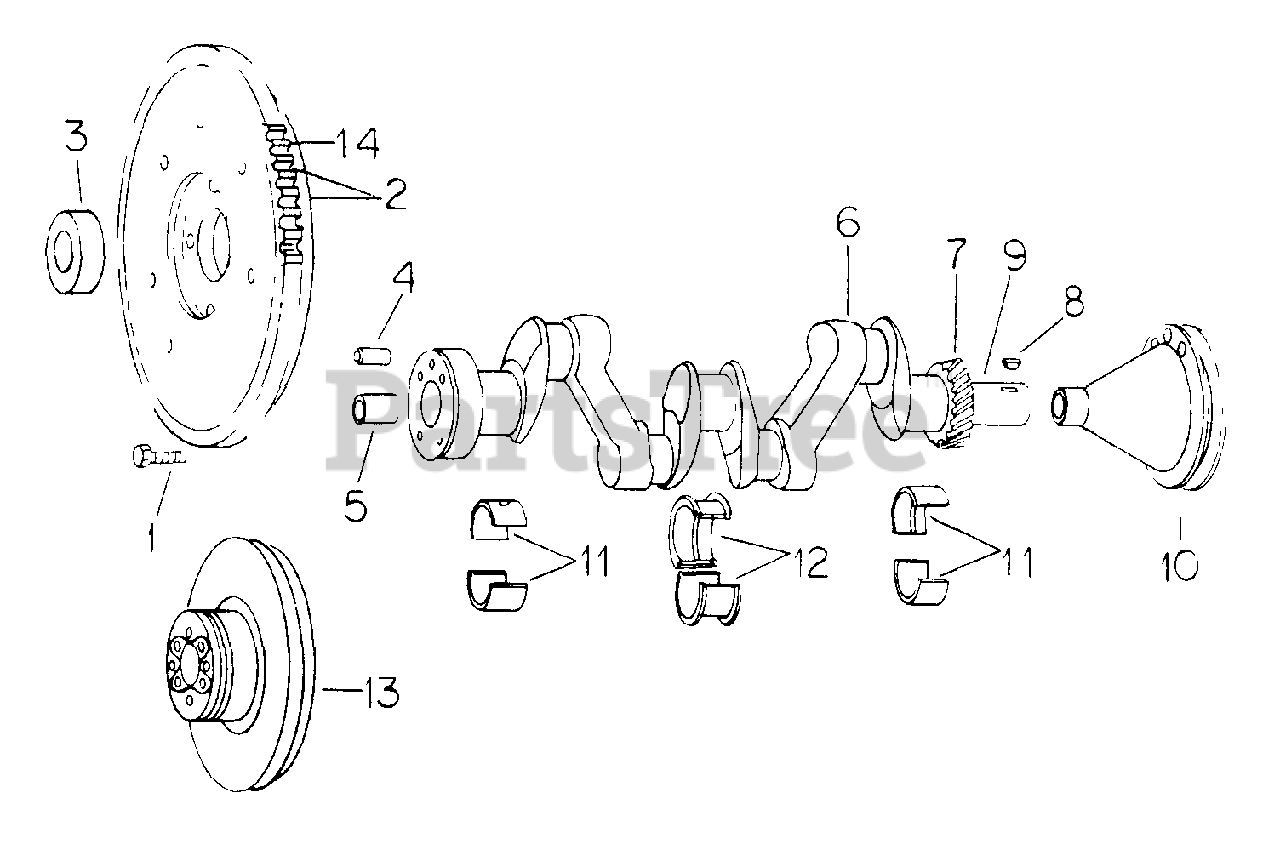

Crankshaft & Related Parts Parts Diagram

  • Title

1

Cub Cadet IH-358246-R1

BOLT, 3/8-24 X 1-1/4 TYPE 4 FLYWHEEL USED

Note: W/ALL MACHINES EXCEPT CUB 154 LO-BOY TRACTORS WITH S/N 277102 AND BELOW

$

$

Not available

Cub Cadet IH-9409039

BOLT, 3/8-24 X 1-3/4 FLYWHEEL

Note: FOR FLYWHEEL, IH-406560-R1; CUB 154 LO-BOY TRACTORS WITH S/N 277102 AND BELOW

$

$

Currently unavailable

2

Cub Cadet IH-131293-C91

FLYWHEEL, CLUTCH FORWARD

Note: 184 TRACTORS

$

$

Currently unavailable

3

Cub Cadet IH-64927-C91

BEARING, CLUTCH PILOT

Note: 184 TRACTORS

$

$

Not available

4

Cub Cadet IH-24550D

PIN, FLYWHEEL DOWEL

$

$

Not available

5

Cub Cadet IH-251266-R1

BUSHING, CLUTCH PILOT

$

$

Not available

6

Cub Cadet IH-527821-R92

CRANKSHAFT W/BEARINGS - STD

Note: COMPOSED OF THE FOLLOWING ITEMS

$

$

Currently unavailable

CRANKSHAFT

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Cub Cadet IH-251266-R1

BUSHING

$

$

Not available

Cub Cadet IH-24550D

DOWEL

$

$

Not available

Cub Cadet IH-357219-R91

BEARING

$

$

Not available

Cub Cadet IH-357216-R91

BEARING
(Superseded to IH-357216-R92)

$

$

Not available

Cub Cadet IH-527458-R11

BEARING

$

$

Not available

7

Cub Cadet IH-251265-R1

PINION, CRANKSHAFT - 18 T

$

$

Currently unavailable

8

Cub Cadet IH-124546

KEY, 5/32 X 5/8 WOODRUFF 6 ALY-STL - CRANKSHAFT PINION

$

$

Not available

9

Cub Cadet IH-124546

KEY, 5/32 X 5/8 WOODRUFF 6 ALY-STL - FAN DRIVE PULLEY

$

$

Not available

10

Cub Cadet IH-528660-R1

PULLEY, FAN DRIVE

Note: CUB 154 LO-BOY TRACTORS

$

$

Not available

Cub Cadet IH-179883

SCREW, 1/2-13 X 1-1/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-76730H

WASHER, 17/32 X 1-1/2 X 11 GA

$

$

Currently unavailable

Cub Cadet IH-107440-C1

PULLEY, FAN DRIVE

Note: 184 TRACTORS AND CUB 185 LO-BOY TRACTORS

$

$

Currently unavailable

Cub Cadet IH-179883

SCREW, 1/2-13 X 1-1/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-351107-R1

WASHER, .531 X 2.00 X .25

$

$

Currently unavailable

11

Cub Cadet IH-357219-R91

BEARING ASSY, CRANKSHAFT FRONT AND REAR STD

$

$

Not available

Cub Cadet IH-357258-R91

BEARING ASSY, CRANKSHAFT FRONT AND REAR .002 U/S

$

$

Not available

Cub Cadet IH-376622-R91

BEARING ASSY, CRANKSHAFT FRONT AND REAR .010 U/S

$

$

Currently unavailable

Cub Cadet IH-376629-R91

BEARING ASSY, CRANKSHAFT FRONT AND REAR .020 U/S

$

$

Currently unavailable

Cub Cadet IH-357264-R91

BEARING ASSY, CRANKSHAFT FRONT AND REAR .030 U/S

$

$

Not available

Cub Cadet IH-357216-R91

BEARING ASSY, CRANKSHAFT CENTER - STD
(Superseded to IH-357216-R92)

$

$

Not available

Cub Cadet IH-357261-R91

BEARING ASSY, CRANKSHAFT CENTER .002 U/S

$

$

Not available

12

Cub Cadet IH-376625-R91

BEARING ASSY, CRANKSHAFT CENTER .010 U/S

$

$

Currently unavailable

Cub Cadet IH-376632-R91

BEARING ASSY, CRANKSHAFT CENTER .020 U/S

$

$

Currently unavailable

Cub Cadet IH-357267-R91

BEARING ASSY, CRANKSHAFT CENTER .030 U/S

$

$

Currently unavailable

13

Cub Cadet IH-534542-R1

FLYWHEEL

Note: REPLACES IH-406560-R1; CUB 154 LO-BOY AND CUB 185 LO-BOY TRACTORS

$

$

Currently unavailable

14

Cub Cadet IH-251270-R2

GEAR, FLYWHEEL RING - 84 T

$

$

Currently unavailable
