154 - International Harvester Cub Lo-Boy Tractor Clutch And Controls - Cub 154 Lo-Boy Tractors (S/N 21491 & Below) Parts Diagram

Cub Lo-Boy Tractor

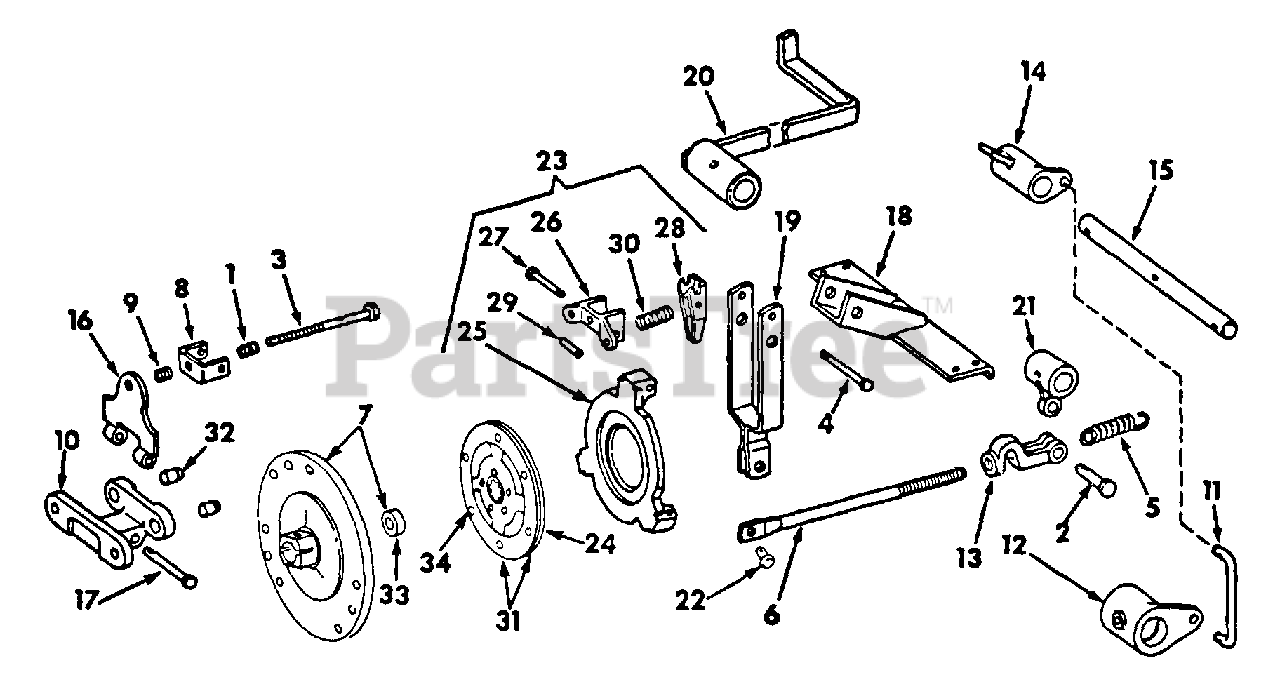

Clutch And Controls - Cub 154 Lo-Boy Tractors (S/N 21491 & Below) Parts Diagram

  • Title

1

Cub Cadet IH-404651-R1

SPRING, CLUTCH BRAKE TEASER
(Superseded to 732-3031)

$

$

Not available

2

Cub Cadet IH-82663H

PIN, CLUTCH ROD ADJUSTABLE YOKE

$

$

Currently unavailable

Cub Cadet IH-103373

PIN 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

3

Cub Cadet IH-404652-R1

BOLT, CLUTCH BRAKE

$

$

Not available

Cub Cadet IH-596934-R1

NUT, 5/16-18 ZND HEX SELF-LOCKING

$

$

Currently unavailable

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

Cub Cadet IH-376308-R1

WASHER, CLUTCH BRAKE SPRING RETAINER

$

$

Not available

4

Cub Cadet IH-404650-R1

PIN, CLUTCH BRAKE YOKE

$

$

Currently unavailable

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

5

Cub Cadet IH-404654-R1

SPRING, CLUTCH RETURN

$

$

Not available

6

Cub Cadet IH-404653-R1

ROD, CLUTCH OPERATING

$

$

Currently unavailable

7

Cub Cadet IH-531708-R11

PLATE ASSY, PRESSURE
(Superseded to IH-531708-R12)

Note: REPLACES 404 664 R1

$

$

Not available

Cub Cadet IH-617941-R1

PIN, 5/16 X 2 HV COILED SPRING
(Superseded to 715-3009)

Note: S/N 15071 & BELOW

$9.99

$

In Stock, only 1 left!

0

Cub Cadet IH-9413994

NUT, 5/16-18 CAD HEX LOCK
(Superseded to 712-3046)

Note: S/N 15072 & ABOVE

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-531619-R1

SCREW, PRESSURE PLATE

Note: S/N 15072 & ABOVE

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

Note: S/N 15072 & ABOVE

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet IH-404649-R1

YOKE, CLUTCH BRAKE

$

$

Currently unavailable

9

Cub Cadet IH-383892-R2

SPRING, CLUTCH BRAKE STABILIZER

$

$

Not available

10

Cub Cadet IH-404641-R1

RETAINER, CLUTCH BRAKE
(Superseded to IH-404641-R2)

$205.99

$

In Stock, only 1 left!

0

Cub Cadet IH-179880

SCREW, 1/2-13 X 7/8 HEX-HD CAP

$

$

Currently unavailable

11

Cub Cadet IH-404657-R1

ROD, CLUTCH LINKAGE

$

$

Currently unavailable

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

12

Cub Cadet IH-404658-R1

LEVER, CLUTCH PEDAL

$

$

Currently unavailable

Cub Cadet IH-102939

SCREW, 5/16-18 X 7/8 SQ-HD CONE PT SET

$

$

Currently unavailable

Cub Cadet IH-114502

NUT, 5/16-18 HEX JAM

$

$

Currently unavailable

13

Cub Cadet IH-49401D

YOKE CLUTCH ROD ADJUSTING

$

$

Currently unavailable

Cub Cadet IH-271506

NUT, 7/16 20 ZND HEX

$

$

Not available

14

Cub Cadet IH-404655-R1

LEVER, CLUTCH & SAFETY STARTING SWITCH

$

$

Currently unavailable

15

Cub Cadet IH-404656-R1

PIN, CLUTCH

$

$

Currently unavailable

Cub Cadet IH-19534-R1

PIN, 1/4 x 1-1/2 HV COILED SPRING
(Superseded to 915-0114)

$9.49

$

In Stock, Qty 20+

0

16

Cub Cadet IH-404645-R1

ARM ASSY, BRAKE

$

$

Currently unavailable

17

Cub Cadet IH-404648-R1

PIN, LEVER

$

$

Currently unavailable

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

18

Cub Cadet IH-404677-R1

BRACKET ASSY, CLUTCH RELEASE

$

$

Not available

Cub Cadet IH-102634

NUT 5/16-18, HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

19

Cub Cadet IH-404675-R1

YOKE ASSY, CLUTCH RELEASE
(Superseded to IH-404675-R2)

$

$

Not available

IH-90560H

PIN, 1/2 X 2 49/64 ROD END

$

$

Not available

Cub Cadet IH-103385

PIN, 1/8 X 1 COT

$

$

Currently unavailable

Cub Cadet IH-103343

WASHER, 17/32 x 1-1/16 X .095
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet IH-547014-R1

PEDAL ASSY CLUTCH REPLACES, 404 659 R1

$

$

Currently unavailable

21

Cub Cadet IH-404556-R2

LEVER, CLUTCH

$

$

Currently unavailable

22

Cub Cadet IH-357369-R1

PIN, CLUTCH ROD, END

$

$

Currently unavailable

Cub Cadet IH-103373

PIN, 3/32 x 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

23

Cub Cadet IH-404639-R94

PLATE ASSY, CLUTCH PRESSURE

$

$

Not available

Cub Cadet IH-405983-R1

BRACKET

$

$

Not available

Cub Cadet IH-405982-R1

PLATE

$

$

Not available

Cub Cadet IH-60342-C1

PIN

$

$

Not available

Cub Cadet IH-60343-C1

RING

$

$

Currently unavailable

Cub Cadet IH-405986-R1

PIN

$

$

Not available

Cub Cadet IH-405985-R1

LEVER

$

$

Not available

Cub Cadet IH-405987-R3

SPRING

$

$

Not available

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

24

Cub Cadet IH-404640-R93

DISC W/FACINGS ASSY, CLUTCH DRIVEN
(Superseded to IH-404640-R94)

$

$

Not available

25

Cub Cadet IH-405982-R1

PLATE, PRESSURE

$

$

Not available

26

Cub Cadet IH-405983-R1

BRACKET, LEVER

$

$

Not available

27

Cub Cadet IH-60342-C1

PIN, LEVER PIVOT

$

$

Not available

Cub Cadet IH-60343-C1

RING, RETAINING

$

$

Currently unavailable

28

Cub Cadet IH-405985-R1

LEVER, RELEASE

$

$

Not available

29

Cub Cadet IH-405986-R1

PIN, PRESSURE PLATE

$

$

Not available

30

Cub Cadet IH-405987-R3

SPRING, PRESSURE

$

$

Not available

31

Cub Cadet IH-405988-R91

PACKAGE, CLUTCH FACING

Note: CONSISTS OF TWO FACINGS AND SIX RIVETS IH-HS490

$

$

Not available

32

Cub Cadet IH-404642-R1

LINING ASSY, BRAKE

$30.99

$

In Stock, only 1 left!

0

33

Cub Cadet IH-404666-R1

BUSHING, PRESSURE PLATE
(Superseded to IH-376265-R2)

$

$

Not available

34

Cub Cadet IH-HS490

RIVET, CLUTCH FACING

$

$

Currently unavailable
