154 - International Harvester Cub Lo-Boy Tractor Air Cleaner & Connections Parts Diagram

Cub Lo-Boy Tractor

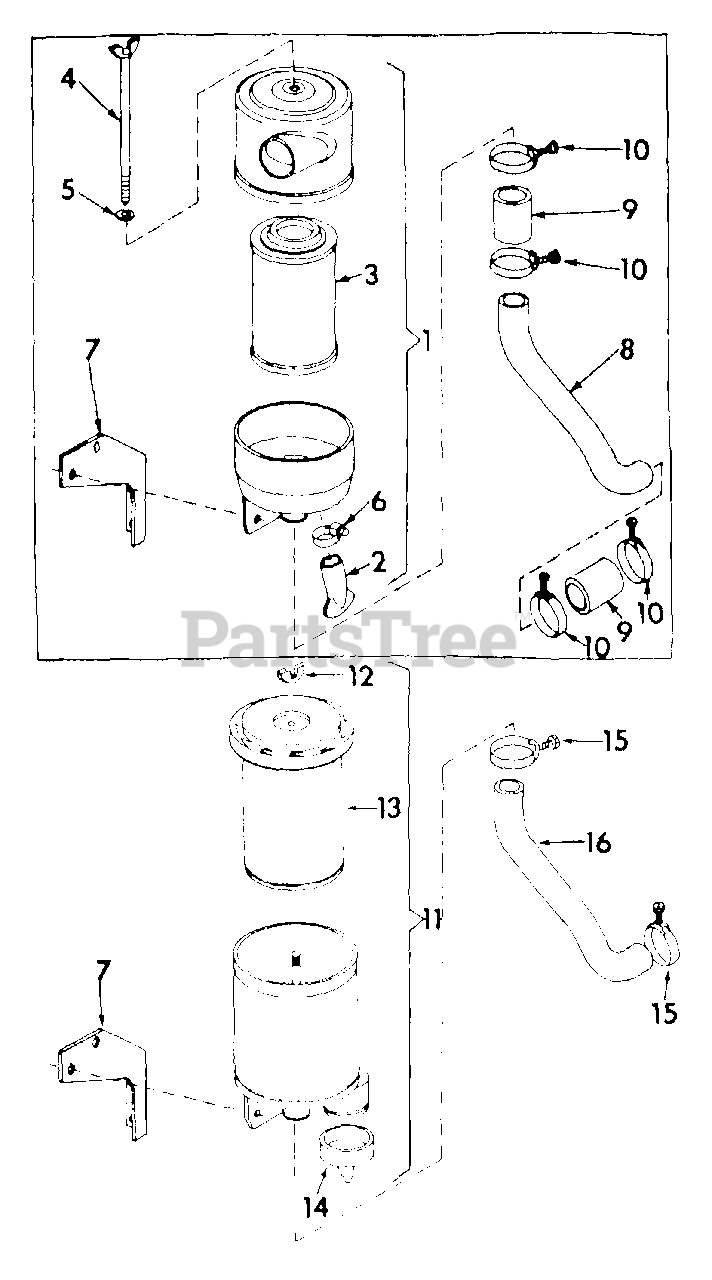

Air Cleaner & Connections Parts Diagram

  • Title

1

Cub Cadet IH-405121-R92

CLEANER ASSY, 5-1/2 IN. DIAMETER DRY TYPE AIR

Note: COMPOSED OF REF NOS 2-6; ORDER IH-545828-R91

$

$

Currently unavailable

Cub Cadet IH-179813

SCREW, 5/16-18 X 9/16 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

2

Cub Cadet IH-324194-R1

UNLOADER, AUTOMATIC DUST

$

$

Currently unavailable

3

Cub Cadet IH-405716-R1

ELEMENT ASSY, AIR CLEANER

$

$

Not available

4

Cub Cadet IH-405717-R1

STUD, WING

$

$

Currently unavailable

5

Cub Cadet IH-405718-R1

WASHER, AIR CLEANER ELEMENT

$

$

Currently unavailable

6

Cub Cadet IH-526609-R91

CLAMP ASSY

$

$

Currently unavailable

7

Cub Cadet IH-404636-R2

BRACKET ASSY, AIR CLEANER

$

$

Currently unavailable

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

8

Cub Cadet IH-404638-R1

PIPE, AIR CLEANER TO CARBURETOR

Note: ORDER HOSE IH-533269-R1; S/N 18708 & BELOW

$

$

Currently unavailable

9

Cub Cadet IH-362756-R1

HOSE, AIR CLEANER CONNECTION

Note: FURNISH 2-1/2 IN. LENGTH FROM BULK HOSE, IH-407001-R1 S/N 18708 & BELOW

$

$

Currently unavailable

10

Cub Cadet IH-996261-R91

CLAMP, AIR CLEANER HOSE

Note: S/N 18708 AND BELOW

$

$

Currently unavailable

11

Cub Cadet IH-545828-R91

CLEANER ASSY, 5-1/4 IN. DIAMETER DRY TYPE AIR

Note: COMPOSED OF REF NOS 12-14

$

$

Currently unavailable

Cub Cadet IH-179813

SCREW, 5/16-18 X 9/16 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

12

NUT, WING SUPPLIED W/ELEMENT IH-547159-R1

$

$

Not available

13

Cub Cadet IH-547159-R1

ELEMENT W/WING NUT, AIR CLEANER

$116.99

$

Usually ships in 3-6 days

0

14

Cub Cadet IH-544977-R1

VALVE, RUBBER UNLOADER

$

$

Not available

15

Cub Cadet IH-996261-R91

CLAMP, AIR CLEANER HOSE

Note: S/N 18709 AND ABOVE

$

$

Currently unavailable

16

Cub Cadet IH-533269-R1

HOSE, AIR CLEANER TO CARBURETOR

Note: REPLACES PIPE IH-404638-R1 AND TWO HOSES IH-362756-R1

$

$

Not available
