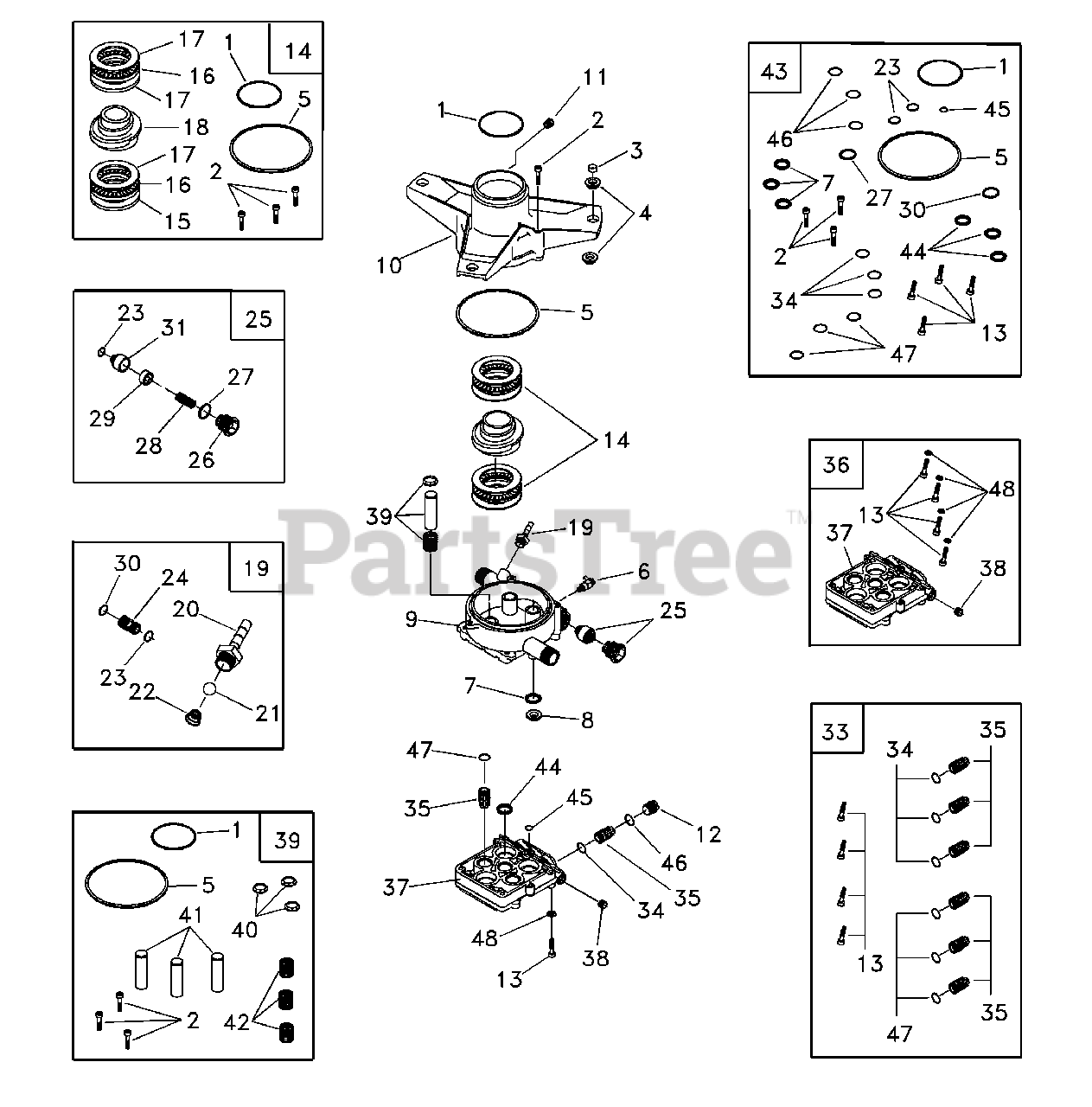

1537-1 - Generac 2,400 PSI Pressure Washer Pump Parts Diagram

2,400 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton B2218

O-RING, Engine Seal
(Superseded to B2218GS)

$3.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton 97962

SHCS, M6 - 1 x 25
(Superseded to 97962GS)

$3.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96795

SLEEVE, Grommet Spacer
(Superseded to 96795GS)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 21429

BUSHING, Rubber Mount
(Superseded to 21429GS)

$5.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 97835

O-RING, Housing Seal
(Superseded to 97835GS)

$3.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 21783

THERMAL RELIEF, GPW-EG
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 93680

SEAL, Oil Piston
(Superseded to 93680GS)

$7.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 97831

SPACER, Pilot
(Superseded to 97831GS)

$5.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B2702

HOUSING, Piston
(Superseded to B2702GS)

$

$

Not available

10

Briggs & Stratton B5003

ADAPTER, Engine
(Superseded to B5003GS)

$

$

Not available

11

Briggs & Stratton B5710

VALVE, 1/8 npt 1/5 PSI
(Superseded to B5710GS)

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 97841

CAP, Outlet Check Valve
(Superseded to 97841GS)

$

$

Not available

13

Briggs & Stratton 40946

SHCS, M6-1.0 x 35

$

$

Not available

14

Briggs & Stratton 185710

KIT, AXIAL CAM
(Superseded to 185710GS)

Note: Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit.

$

$

Not available

1

O-RING, Engine Seal

$

$

Not available

2

SHCS, M6 - 1 x 25

$

$

Not available

5

O-RING, Housing Seal

$

$

Not available

15

WASHER, Brg. 36 x 65 x 6Thk

$

$

Not available

16

ASSY., Brg. Cage 45 x 65

$

$

Not available

17

WASHER, Brg. 45 x 65 x 1

$

$

Not available

18

CAM, Axial 5.6 7/8"SAE

$

$

Not available

19

Briggs & Stratton 185287

KIT, CHEM INJECT
(Superseded to 185287GS)

Note: Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit.

$

$

Not available

20

FITTING, Chem Inject

$

$

Not available

21

BALL, Chem Inject

$

$

Not available

22

SPRING, Chem Inject

$

$

Not available

23

O-RING, Venturi & Seat, Black

$

$

Not available

24

VENTURI, Chem Inject

$

$

Not available

30

O-RING, Venturi, Yellow

$

$

Not available

25

Briggs & Stratton 187879

KIT, UNLOADER
(Superseded to 187879GS)

Note: Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit.

$38.99

$

In Stock, Qty 6

0

23

O-RING, Venturi & Seat, Black

$

$

Not available

26

CAP, Unloader

$

$

Not available

27

O-RING, Unloader Cap

$

$

Not available

28

SPRING, Unloader

$

$

Not available

29

PISTON ASSY., Unloader

$

$

Not available

31

SEAT, Unloader

$

$

Not available

33

Briggs & Stratton 185712

KIT, CHECK VALVES
(Superseded to 185712GS)

Note: Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit.

$

$

Not available

13

SHCS, M6-1.0 x 35

$

$

Not available

34

O-RING, Check Valve

$

$

Not available

35

ASSY., Check Valve

$

$

Not available

47

O-RING, Check Valve, White

$

$

Not available

36

Briggs & Stratton 185531

KIT, HEAD BRASS EG
(Superseded to 185531GS)

Note: Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit.

$

$

Not available

13

SHCS, M6-1.0 x 35

$

$

Not available

37

HEAD, Pump

$

$

Not available

38

PLUG, 1/8-28

$

$

Not available

48

WASHER, M6 Flat

$

$

Not available

39

Briggs & Stratton 185713

KIT, PISTON & SPRING
(Superseded to 185713GS)

Note: Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit.

$

$

Not available

1

O-RING, Engine Seal

$

$

Not available

2

SHCS, M6 - 1 x 25

$

$

Not available

5

O-RING, Housing Seal

$

$

Not available

40

RETAINER, Piston Spring

$

$

Not available

41

PISTON, Dia. 15 x 65

$

$

Not available

42

SPRING, Piston Return

$

$

Not available

43

Briggs & Stratton 185714

KIT, O-RING/SEAL 2300
(Superseded to 185714GS)

Note: Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit.

$

$

Not available

1

O-RING, Engine Seal

$

$

Not available

2

SHCS, M6 - 1 x 25

$

$

Not available

5

O-RING, Housing Seal

$

$

Not available

7

SEAL, Oil Piston

$

$

Not available

13

SHCS, M6-1.0 x 35

$

$

Not available

23

O-RING, Venturi & Seat, Black

$

$

Not available

27

O-RING, Unloader Cap

$

$

Not available

30

O-RING, Venturi, Yellow

$

$

Not available

34

O-RING, Check Valve

$

$

Not available

44

SEAL, Double-Lip

$

$

Not available

45

O-RING, High Pressure Transfer

$

$

Not available

46

O-RING, Outlet CV Cap

$

$

Not available

47

O-RING, Check Valve, White

$

$

Not available
