1536-0 - Generac 2,100 PSI Pressure Washer Main Unit Parts Diagram

2,100 PSI Pressure Washer

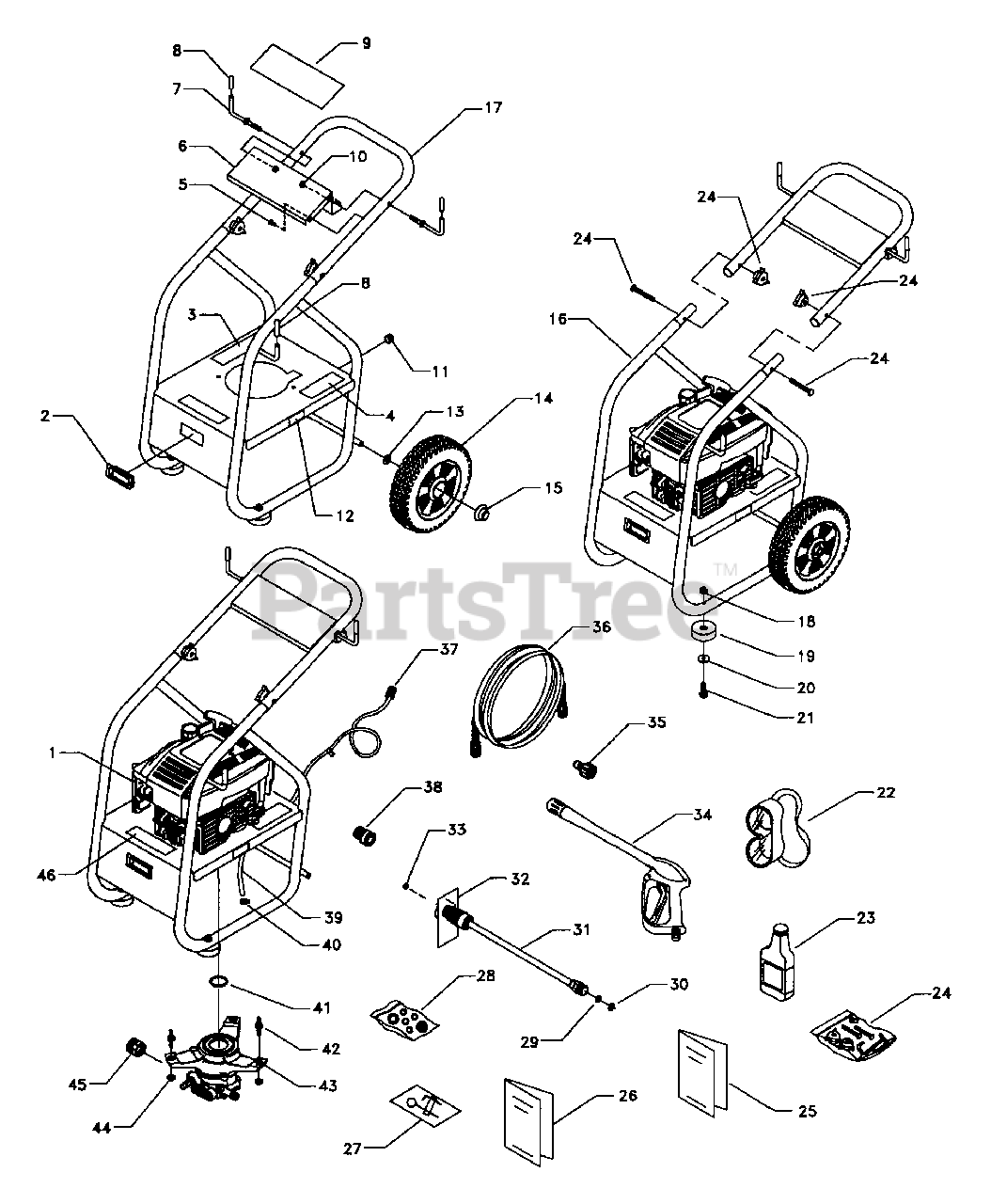

Main Unit Parts Diagram

  • Title
1

NSP

ENGINE

$

$

Not available

2

Briggs & Stratton 187878

HANDLE, Lift
(Superseded to 187878GS)

$6.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187915

DECAL, Warning/Decal
(Superseded to 187915GS)

$14.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 187916

DECAL, Start Instructions
(Superseded to 187916GS)

$1.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187799

SCREW, M4.5" x 13
(Superseded to 187799GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton C187859

BILLBOARD, Upper Front

$

$

Currently unavailable

7

Briggs & Stratton B2759B

HOOK
(Superseded to B2759BGS)

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2516

CAP, Vinyl, Black
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 187888

DECAL, Logo
(Superseded to 187888GS)

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 99583

NUT, 5/16" - 18
(Superseded to 99583GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 30809

GROMMET, Chem Hose
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 187952

DECAL, Cool Down
(Superseded to 187952GS)

$8.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 49808

WASHER, M12 Flat
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton B2142

TIRE, 2" X 9" Black Mag
(Superseded to B2142GS)

$19.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton D187619

BASE, VSPW, Dover Grey
(Superseded to D187619GS)

$163.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton D187894

HANDLE, PW, Dover Grey
(Superseded to D187894GS)

$34.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 52858

NUT, M8 Locking Flange
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 27007

MOUNT, Rubber Foot
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 9

0

20

Briggs & Stratton 50190

WASHER, Flat, .34" x 1"
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 39288

HHCS, M8 x 1.25 x 55
(Superseded to 39288GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87815

GOGGLES, Safety
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton BB3061B

OIL, 20oz
(Superseded to 100005)

$8.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 187891

KIT, Handle Hardware
(Superseded to 187891GS)

$12.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 187698

MANUAL, Owners

$

$

Not available

26

Briggs & Stratton B3356

MANUAL, B & S Engine
(Superseded to 380567TRI)

$

$

Not available

27

Briggs & Stratton B2163

KIT, Nozzle Cleaning

$

$

Currently unavailable

28

Briggs & Stratton B5830

KIT, O-Ring Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton B4224

SCREEN, Gun Inlet
(Superseded to B4224GS)

$

$

Not available

30

Briggs & Stratton 97837

O-RING, Hi - Pressure
(Superseded to 97837GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B3335

WAND, Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 97566

HANG TAG, Nozzle
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 21761

NOZZLE, 1.05 Yellow Replacement

$

$

Not available

34

Briggs & Stratton B3263

GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, Qty 7

0

35

Briggs & Stratton 95519

QC, Wand End
(Superseded to 312981GS)

$39.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B5693

HOSE, 1/4" X 25'
(Superseded to 708962)

$59.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 95518

QC, Wand/Accessory
(Superseded to 312981GS)

$39.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton A1040D

HOSE, Chemical
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 48031G

CLAMP, Hose Band
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 98300

SEAL, Engine Donut
(Superseded to 98300GS)

$11.99

$

In Stock, only 2 left!

0

42

Briggs & Stratton B1735

STUD, Double Ended
(Superseded to B1735GS)

$

$

Not available

43

-----

PUMP, Assembly

Note: (For replacement, order 209940GS)

$

$

Not available

43

Briggs & Stratton 209940GS

REPLACEMENT PUMP ASSEMBLY

$

$

Not available

44

Briggs & Stratton B1880

NUT, M8 with Washer
(Superseded to B1880GS)

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 187918

DECAL, Quick Reference
(Superseded to 187918GS)

$2.99

$

Usually ships in 2-12 days

0
