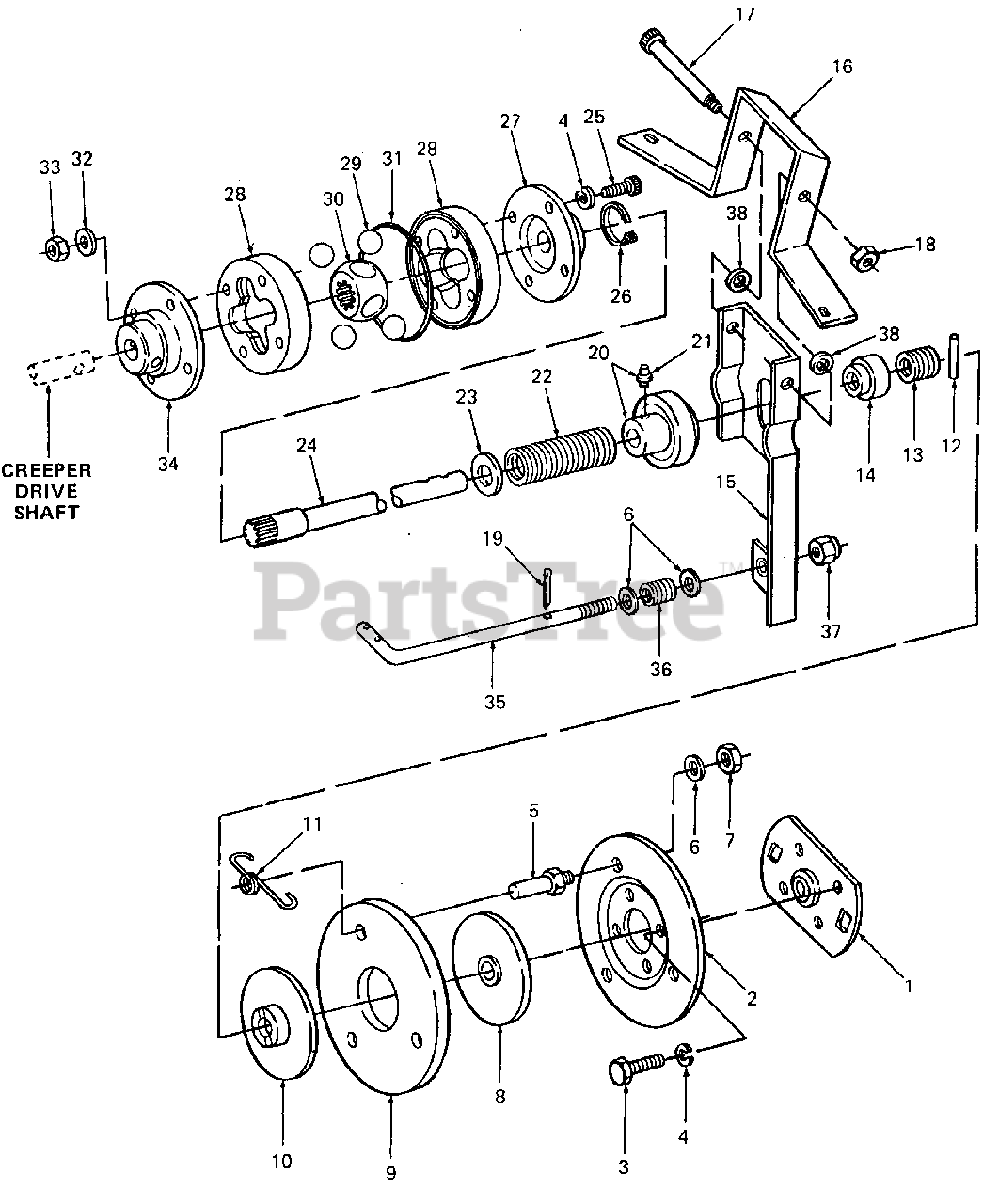

1535 (141-641-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Clutch & Controls Parts Diagram

Garden Tractor

Clutch & Controls Parts Diagram

  • Title

1

Cub Cadet 703-1492

Flange Assy, Drive Shaft
(Superseded to 903-1492)

$45.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-0216

Disc, Clutch Driving
(Superseded to 903-0216)

$

$

Not available

3

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

5

Cub Cadet 711-3043

Stud, Drive
(Superseded to 911-3043)

$55.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

8

Cub Cadet 703-0214

Hub Assy, Pressure Plate Locating
(Superseded to 903-0214)

$121.99

$

In Stock, only 4 left!

0

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, Qty 20+

0

9

Cub Cadet 761-3011

Disc, Clutch Friction
(Superseded to 961-3011)

$92.99

$

In Stock, only 4 left!

0

10

Cub Cadet 703-0213

Hub Assy, Pressure Plate
(Superseded to 903-0213)

$190.99

$

In Stock, only 3 left!

0

11

Cub Cadet 732-3018

Spring, Driving Disc

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, Qty 20+

0

13

Cub Cadet 732-3017

Spring, Compression, .875 OD X .442 Lg

$8.49

$

In Stock, Qty 20+

0

14

Cub Cadet 711-3040

Spacer
(Superseded to 911-3040)

$

$

Not available

15

Cub Cadet 703-0218

Lever, Release
(Superseded to 703-0218-0637)

Variations

Cub Cadet 703-0218-0637

Release Lever - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-2000

Hanger, Clutch Lever
(Superseded to 703-2000-0637)

Variations

Cub Cadet 703-2000-0498

USE 703-2000-0637 LEVER-RELEA - OLD CUB YELLOW (0498)

$89.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2000-0637

LEVER-RELEASE HANG - POWDER BLACK (0637)

$89.99

$

Usually ships in 3-6 days

0

$89.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3225

Screw, Socket Hd Shld, 3/8 X 3.0 Lg 5/16-18 Thrd

$20.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia X .75 Lg

$4.99

$

In Stock, Qty 13

0

20

Cub Cadet 703-0600

Bearing Assy, Throwout

Note: (Includes Ref No. 21)

$87.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 737-0146

Fitting, Lube

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-3016

Spring, Compression, 1.05 OD X 6.7 Lg
(Superseded to 932-3016)

$49.99

$

In Stock, Qty 15

0

23

Cub Cadet 736-0162

Washer, Flat, .635 X 1.0 X .120 Thk

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 738-3090

Shaft, Drive, 15.12 Lg

$

$

Not available

25

Cub Cadet 710-3212

Screw, Socket Hd Cap, 1/4-20 X 2 .0 Lg

$5.99

$

In Stock, Qty 5

0

26

Cub Cadet 725-0157

Strap, Tie

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 735-3029

Boot, Coupling

$

$

Not available

28

Cub Cadet 748-3030A

Coupling, Drive w/O-Ring Groove

Note: (Use CV-Joint Grease)

$

$

Not available

29

Cub Cadet 723-3022

Ball, Steel, 5/8 Dia Chrome

$6.99

$

In Stock, Qty 18

0

30

Cub Cadet 748-3029

Hub, Drive

$

$

Not available

31

Cub Cadet 721-3025

O-Ring, 2.489 X .070

$

$

Not available

32

Cub Cadet 736-0463

Washer, Flat, .25 X .62 X .052 Thk

$4.49

$

In Stock, Qty 12

0

33

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

34

Cub Cadet 748-3039

Adapter w/Hole

$

$

Not available

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, Qty 20+

0

35

Cub Cadet 747-3021A

Rod, Clutch Release

$

$

Not available

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia X .75 Lg

$4.99

$

In Stock, Qty 13

0

36

Cub Cadet 732-3005

Spring, Compression, .50 OD X 3.75 Lg
(Superseded to 932-3005)

$9.49

$

In Stock, only 1 left!

0

37

Cub Cadet 712-3061

Nut, Hex Insert Lock, 3/8-24 GR5

$6.99

$

In Stock, Qty 14

0

38

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 737-3023

CV-Joint Grease

$

$

Currently unavailable
